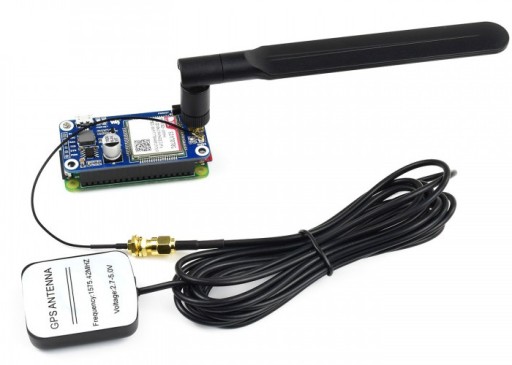

SIM7070G NB-IoT Cat-M GPRS GNSS HAT Raspberry Pi

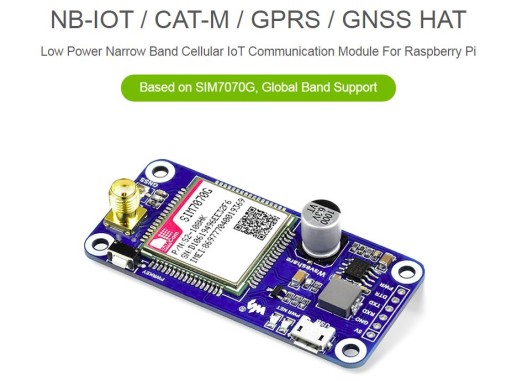

This is a telecommunication HAT for Raspberry Pi which supports global bands of NB-IoT, Cat-M, and GPRS, as well as GNSS positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on.

Compared to SIM7080G, this module also supports GPRS (2G); compared to SIM7000C/E, it is more generic due to the global bands support.

Features At A Glance

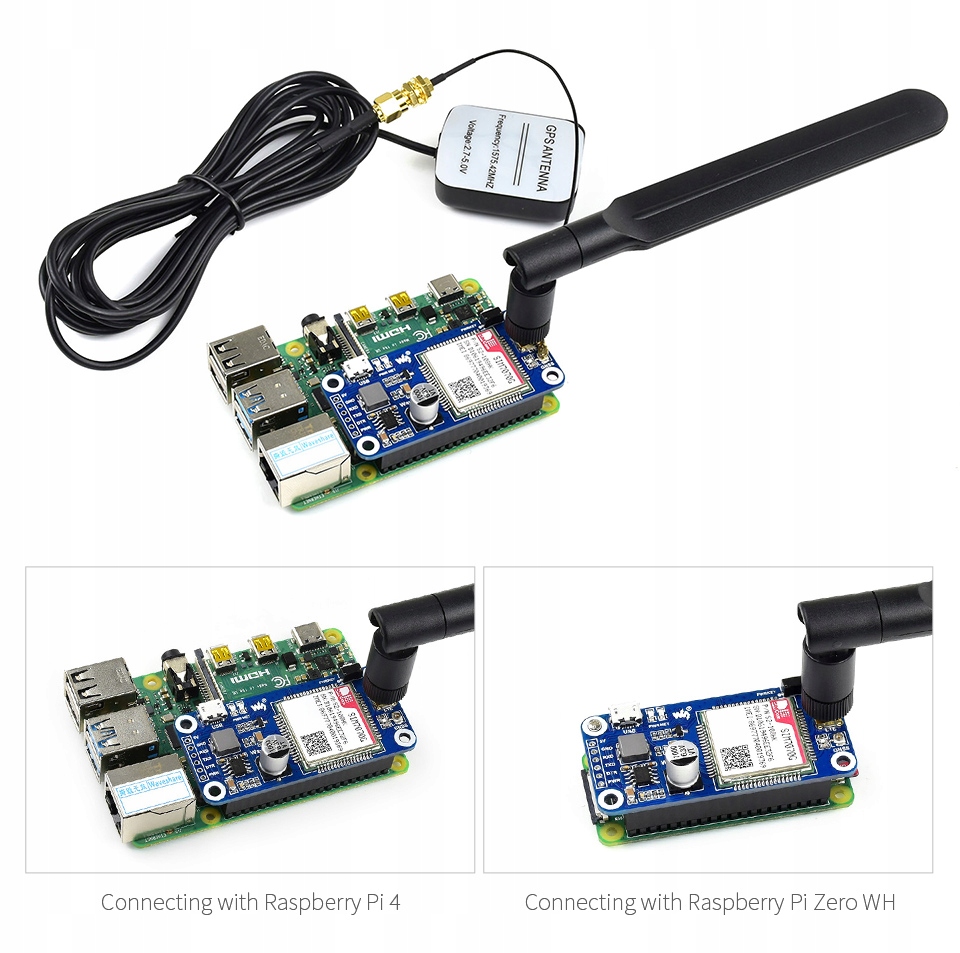

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

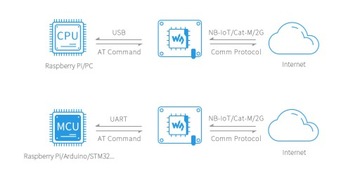

• Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT

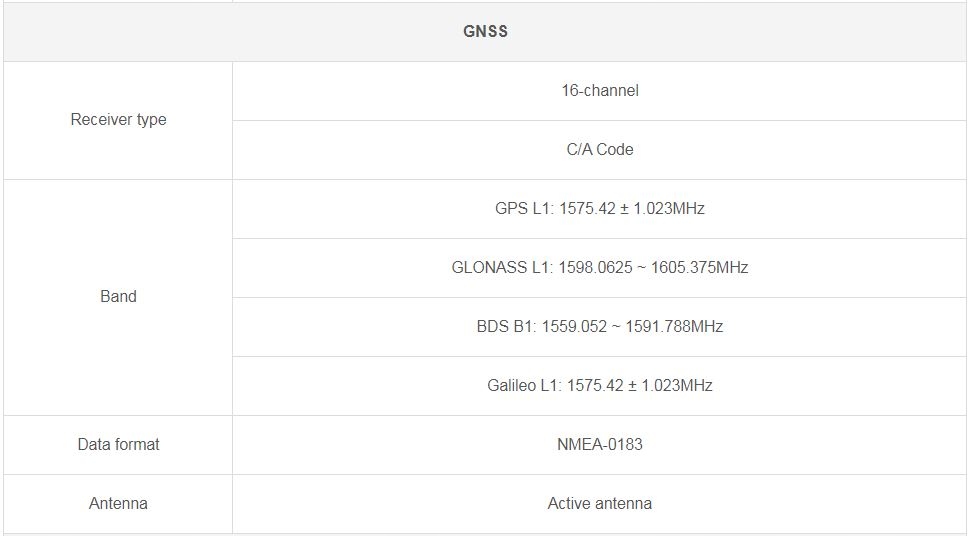

• Supports GNSS positioning (GPS, BeiDou, GLONASS, Galileo)

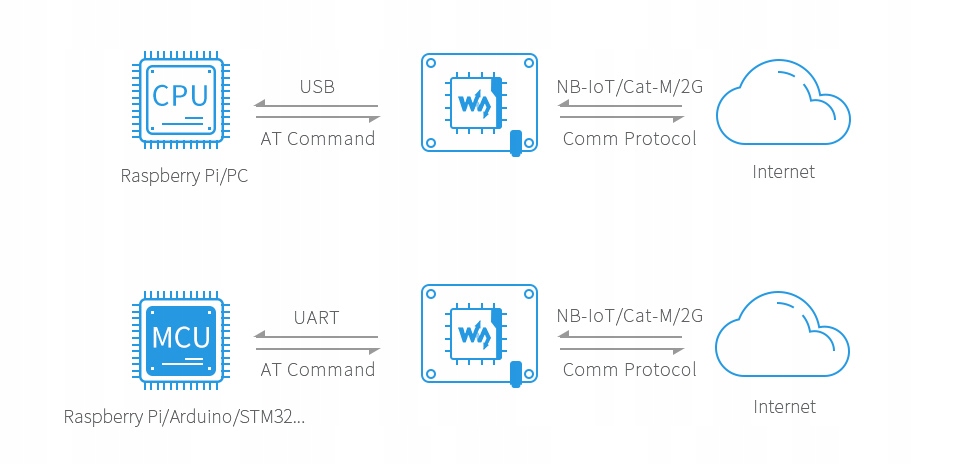

• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
• Breakout UART control pins, to connect with host boards like Arduino/STM32

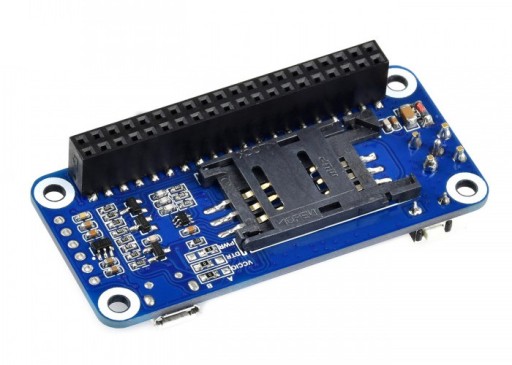

• SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
• 2x LED indicators, easy to monitor the working status
• Baudrate: 300~3686400 bps
• Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

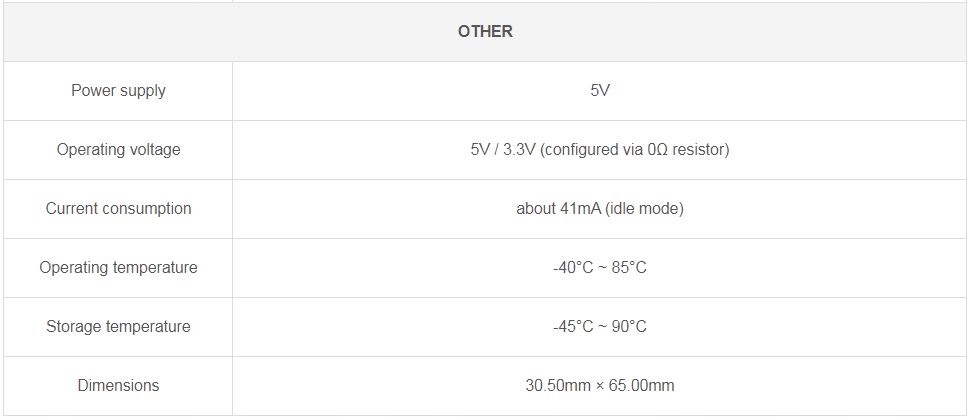

Specifications

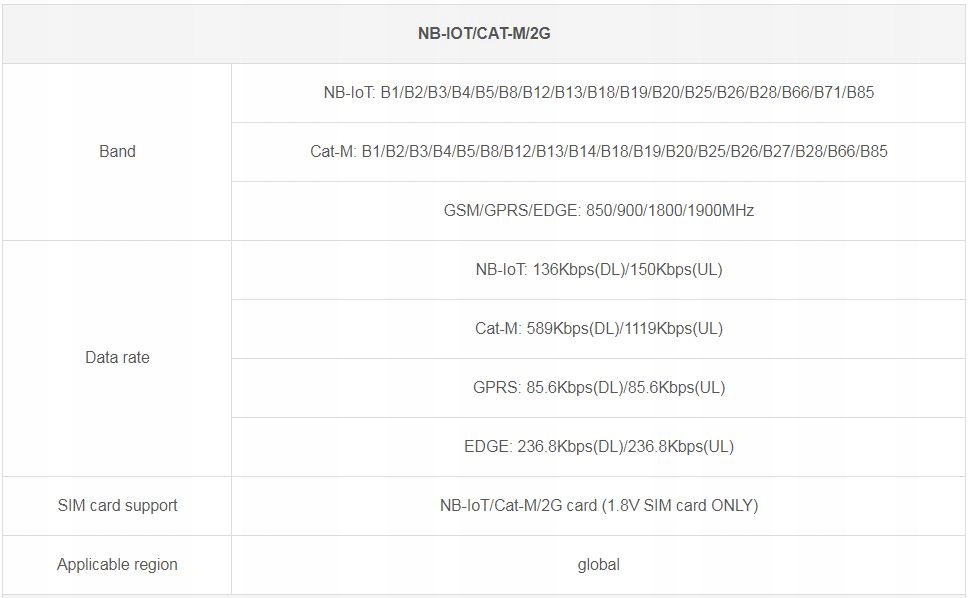

Global Band Support Of NB-IoT/Cat-M/2G

NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85

Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85

GSM/GPRS/EDGE: 850/900/1800/1900MHz

Cloud Communication

Supports Communication Protocols Including TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT

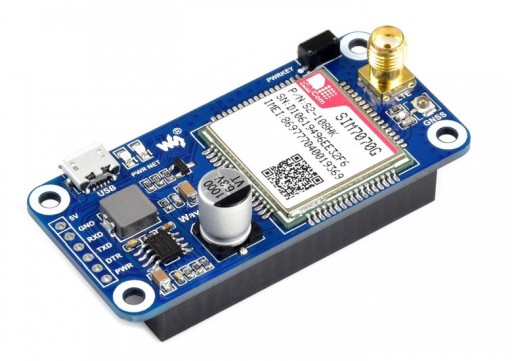

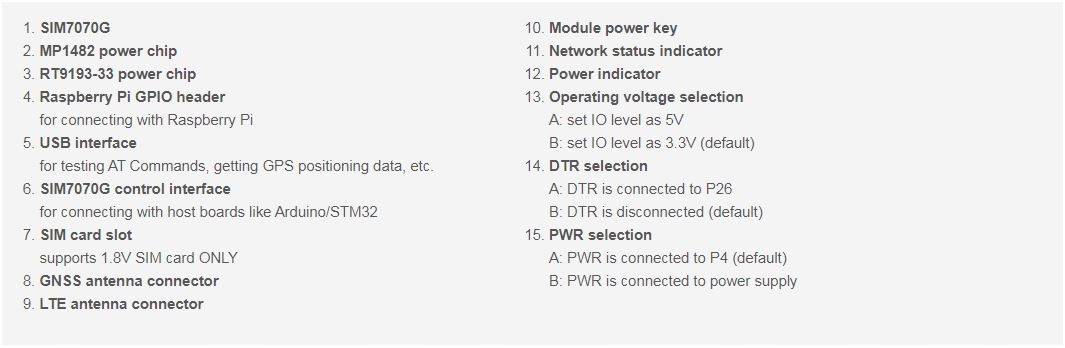

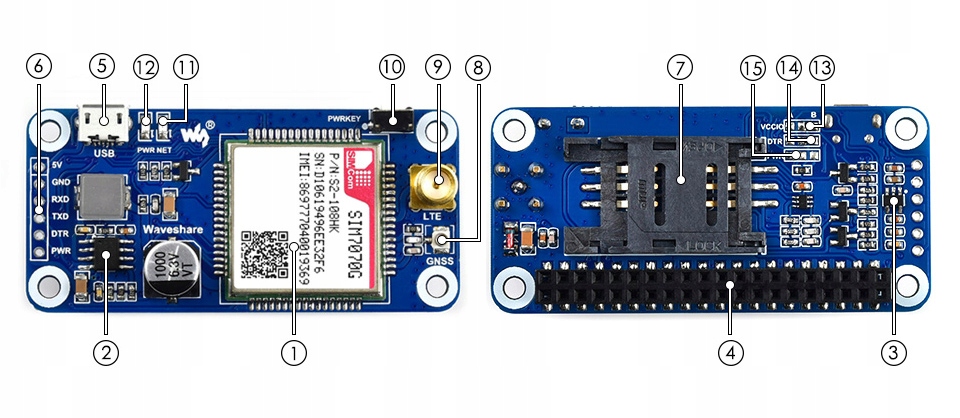

What's On Board

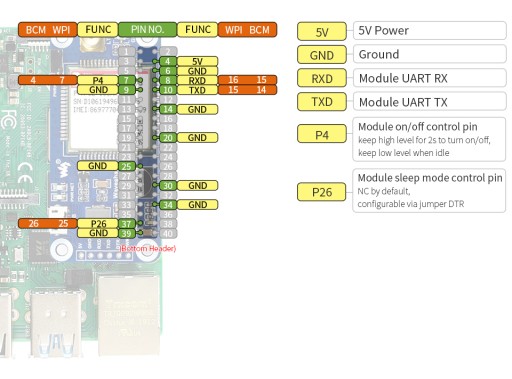

Pinout Definition

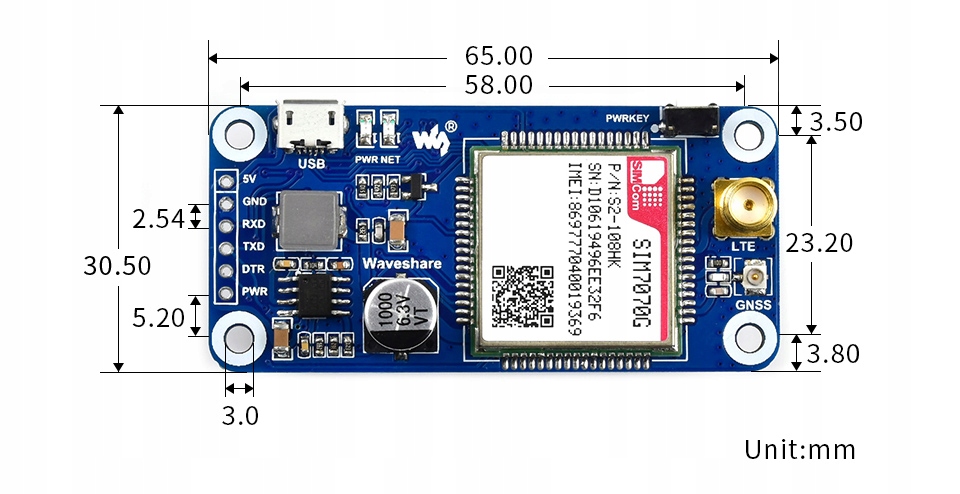

Outline Dimensions

Dodatkowe informacje, dokumentacja: WIKI: www.waveshare.com/wiki/SIM7070G_Cat-M/NB-IoT/GPRS_HAT

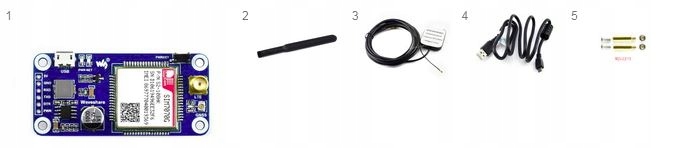

W zestawie:

1. SIM7070G Cat-M/NB-IoT/GPRS HAT x1
2. LTE Antenna x1
3. GPS External Antenna (B) x1
4. USB-A to Micro-B cable x1
5. Standoffs pack x1

Moduł Raspberry Pi widoczny na zdjęciach nie wchodzi w skład sprzedawanego zestawu.
