Power Ethernet HAT (C) Raspberry Pi 802.3af/at PoE

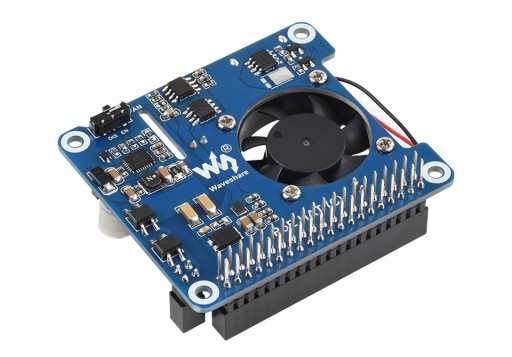

The PoE HAT (C) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

• Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B
• PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant
• Fully isolated switched-mode power supply (SMPS)
• While providing stable power for the Raspberry Pi, there's also a USB-A port for powering extra external device
• Onboard high speed active cooling fan, better heat dissipation

• POE input voltage: 37V ~ 57V DC input
• POE-USB Type A output voltage: 5V 4A (MAX)
• POE-Pin header output voltage: 12V 2A (MAX)
• Network standard: Support IEEE 802.3af/at PoE

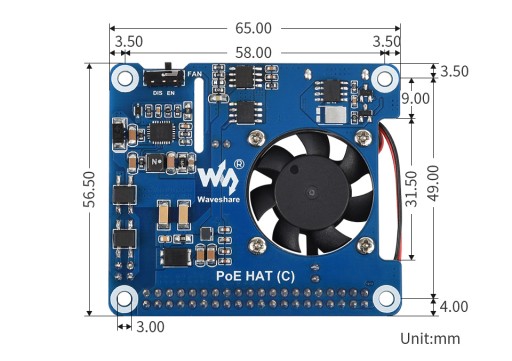

• Product size: 56.5 × 65mm

Dodatkowe informacje : https://www.waveshare.com/wiki/PoE_HAT_(C)

For Use With Raspberry Pi 3B+/4B

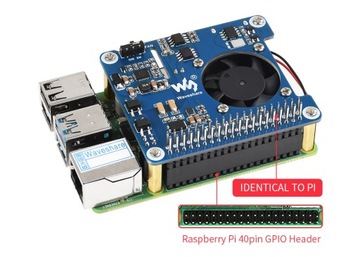

Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs

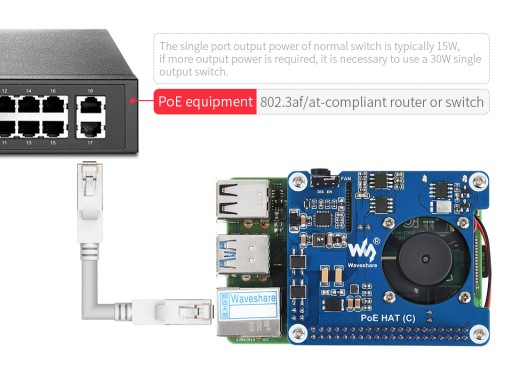

Power Over Ethernet

Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable

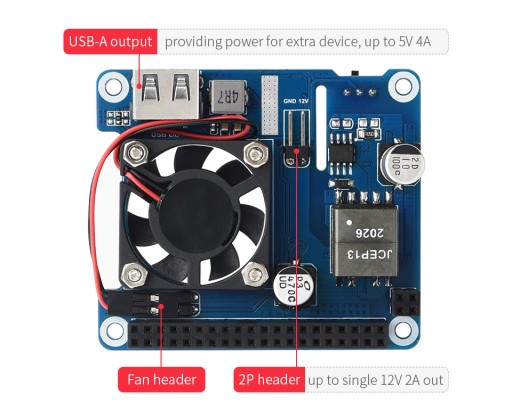

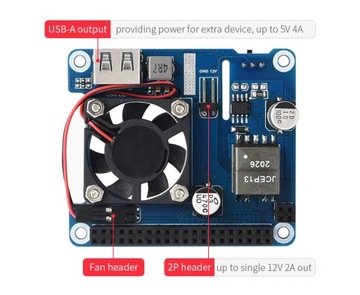

5V USB-A & 12V Header Outputs

5V USB-A Provides Up To 4A Output (MAX 25W For 12V+5V Total Output Power)

Be Able To Power Extra Device While Providing Stable Power To Raspberry Pi

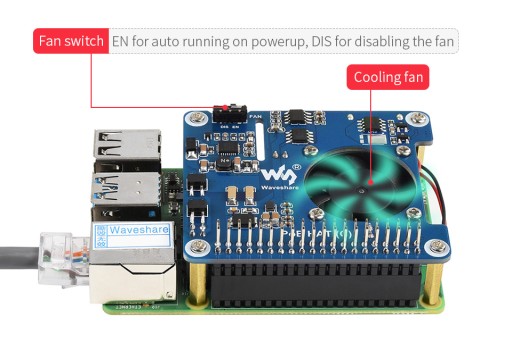

Active Cooling Fan

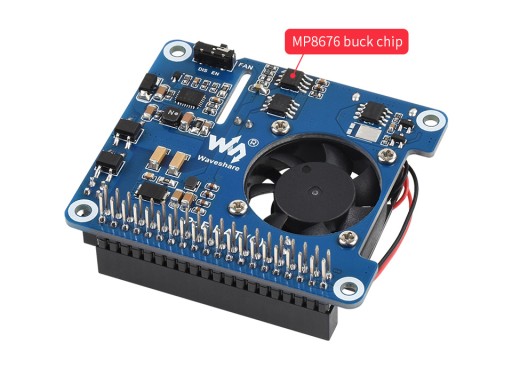

Onboard MP8676 Buck Chip

Incorporates Original Voltage Buck Chip

Providing Up To 4.5A Output For Raspberry Pi And USB-A Port

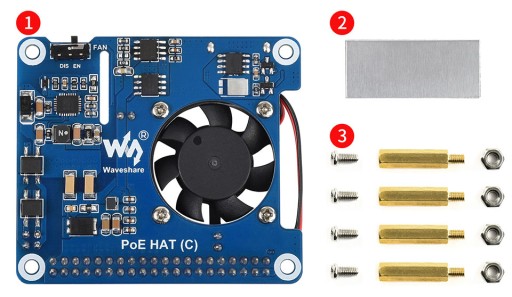

W zestawie:

1. PoE HAT (C) x1
2. Heatsink x1
3. Standoffs pack x1
