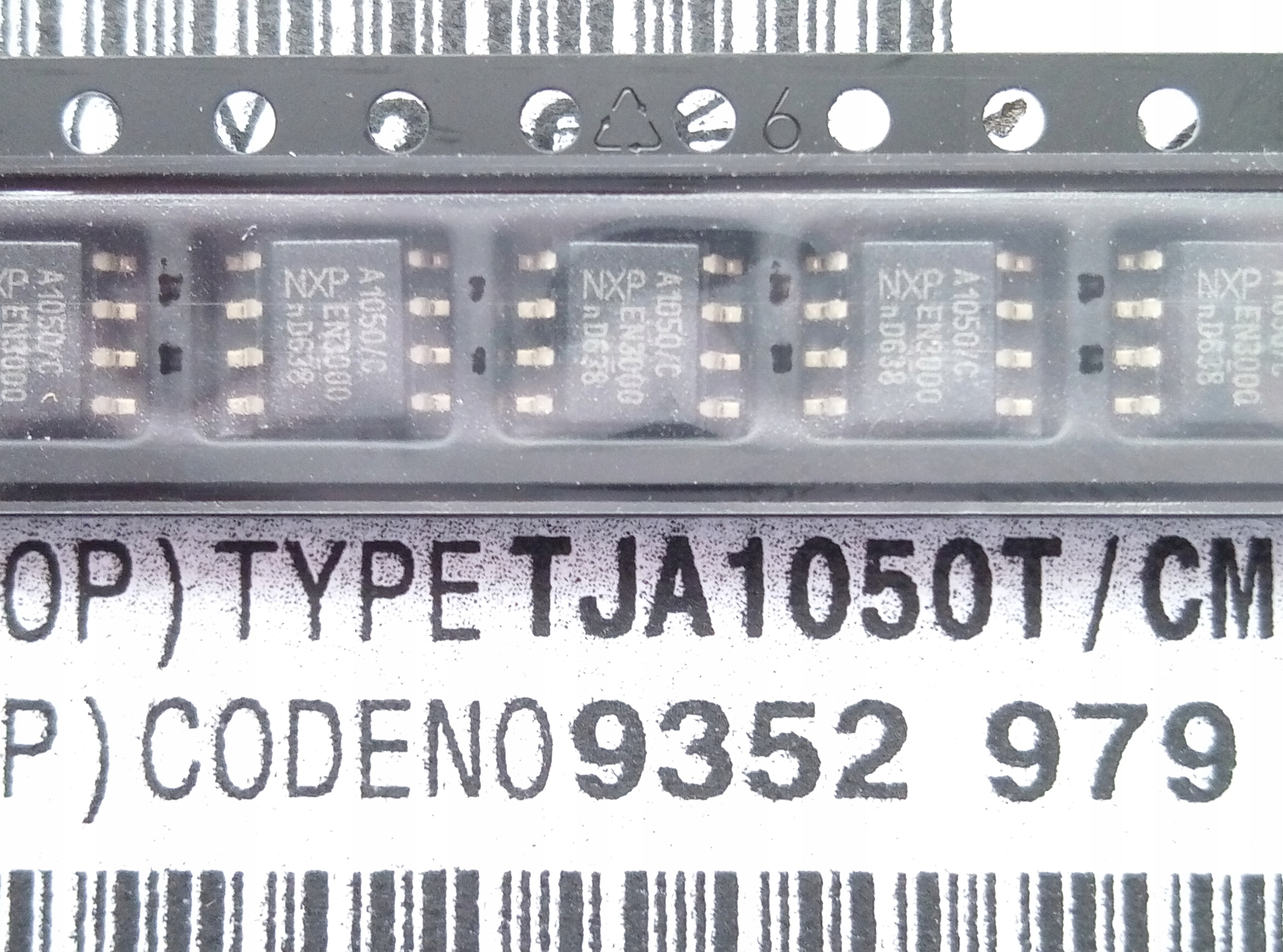

[1шт] TJA1050 Высокоскоростной CAN-трансивер NXP

High speed CAN (Controller Area Network) transceiver

1szt @ TJA1050 SO-8

Producent: Philips

Symbol producenta: TJA1050T

Obudowa: SO8

FEATURES

• Fully compatible with the “ISO 11898” standard

• High speed (up to 1 Mbaud)

• Very low ElectroMagnetic Emission (EME)

• Differential receiver with wide common-mode range for

high ElectroMagnetic Immunity (EMI)

• An unpowered node does not disturb the bus lines

• Transmit Data (TXD) dominant time-out function

• Silent mode in which the transmitter is disabled

• Bus pins protected against transients in an automotive

environment

• Input levels compatible with 3.3 V and 5 V devices

• Thermally protected

• Short-circuit proof to battery and to ground

• At least 110 nodes can be connected.

Cena podana w ofercie dotyczy 1 układ scalony.
