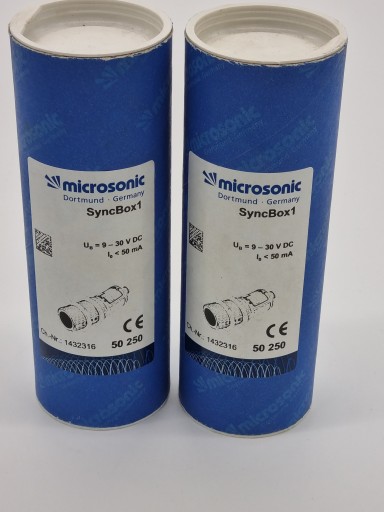

Ультразвуковой датчик MICROSONIC SynxBox1 1432316

MICROSONIC SynxBox1 Czujnik ultradźwiękowy synchronizujący

order no. SyncBox1

design cylindrical M30

operating mode accessories

description For the external synchronization of more than 10 mic+ sensors. The SyncBox1 allows synchronization of up to 160 mic+ sensors.

electrical data

operating voltage UB 9 - 30 V d.c., reverse polarity protection

voltage ripple ± 10 %

no-load current consumption ≤ 25 mA

type of connection 5-pin M12 initiator plug

outputs

output 1 synchronisation output

npn: Imax = 200 mA (-UB+2V)

output 2 synchronisation output

npn: Imax = 200 mA (-UB+2V)

inputs

input 1 control input

housing

material brass sleeve, nickel-plated, plastic parts, PBT

class of protection to EN 60529 IP 67

operating temperature -20°C to +70°C

storage temperature -40°C to +85°C

weight 110 g

technical features/characteristics

controls 2 push-buttons + LED display (TouchControl)

scope for settings TouchControl

indicators 3-digit LED display, 2 x three-colour LED
