Rower Elektryczny 1000W 16Ah 130km 26 “ MTB E-bike

Każdy szczegół jest zaprojektowany LANKELEISI RV700, ciesz się nową, improwizowaną podróżą

• Wspomaganie wspomagania Przebieg wynosi około 130 KM
• Szybki silnik o mocy 1000 w
• L-Drives System sterowania wektorowego
• Lekka rama ze stopu aluminium
• wysokiej jakości amortyzacja zawieszenia
• 26*4.0 gruba opona
• Hydrauliczny hamulec tarczowy i zabezpieczenie przed awarią zasilania
• Trzy jazda tryby

THREE MODES OF TRAVEL

Built-in 3 riding modes, easily switch according to the gear and mode, can calmly deal with the needs of different riding scenes

Electric mode

• Turn the electric throttle 0 gear provides electric drive

Power assist mode

• 1-5 gears provide about 10%-80% output power

Riding mode

• Bicycle riding mode

18650 LITHIUM BATTERY

POWER ASSISTED RIDING UP TO 13OKM

48V16ah power supply 18650 lithium battery pack, water bottle design IP54 waterproof level, double protection, strong output, always stable. The pure electric can reach 55KM, and the assisted riding can reach 130KM, providing sufficient power output for riding and free riding.

• A new generation of BMS Power saving plan
• Battery waterproof Built-in hidden
• Install lithium batteryProtection board

*The 130KM battery life is measured by our company. The tester's weight is 60kg and the tester adopts" the first gear to measure the constant speed of 20KM. The weight and actual conditions of differentusers have an impact on battery life, and the actual use of the individual will prevail.

REMOVABLE BATTERY PACK

EASY TO CHARGE

Upgrade 3a wired fast charging to prevent overcharging. It can be directly connected to the charging hole of the vehicle body, and the battery can be removed for charging.

FAQ

• Q: Will the battery be heavy?
• Answer: Use lithium battery pack. The battery weighs about 3.5KG, and it can be easily picked up with one hand.
• Q: How long does it take to fully charge the battery?
• A: Undervoltage 48v16ah full charge time 5-6 hours

1000W HIGH SPEED BRUSHLESS MOTOR

EXCELLENT ACCELERATION PERFORMANCE 42KM PER HOUR

The 48V1000w high-speed brushless motor is light in weight. Its internal use of star gear design can amplify torque and improve energy efficiency conversion rate. This is reflected in reducing energy consumption and silent energy consumption while increasing cruising range, improving speed performance and climbing performance . Fast power output.

• 1000w Motor
• 42KM speed
• 4.9s Up to full Speed

UNDERSTAND EVERY STEPPING ON YOU

EXPERIENCE NEW RIDING FUN

Built-in 5-level power assist mode, this mode can be adjusted by the button of the instrument, output from low power mode to high power mode, and intelligently detect each step. Depth sensing pedal strength and rotation speed, helping to ride more comfortably.

COLOR SMART LCD METER

DETECT DRIVING DATA

RV700 device intelligent LCD instrument, brand new interactive interface, LCD display, integrated gear switch, bicycle data view, power output setting, clear at a glance, ip64 waterproof and dustproof quality is reliable

LARGE DOUBLE SHOULDER OIL

SPRING SUSPENSION FORK 26 * 4.0 WHEELS

The dual oil spring suspension and lockable front fork are used to provide the rider with a stronger comfort experience during a collision. Large potholes and muddy roads with a wheel diameter of 26*4.0 inches can easily pass the speed bump. The tire has a width of up to 10 cm, has anti-skid and anti-vibration functions, and has a longer span. Bigger, faster, and less effort.

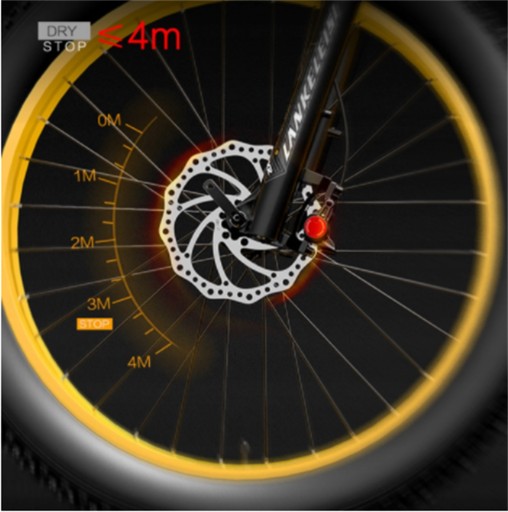

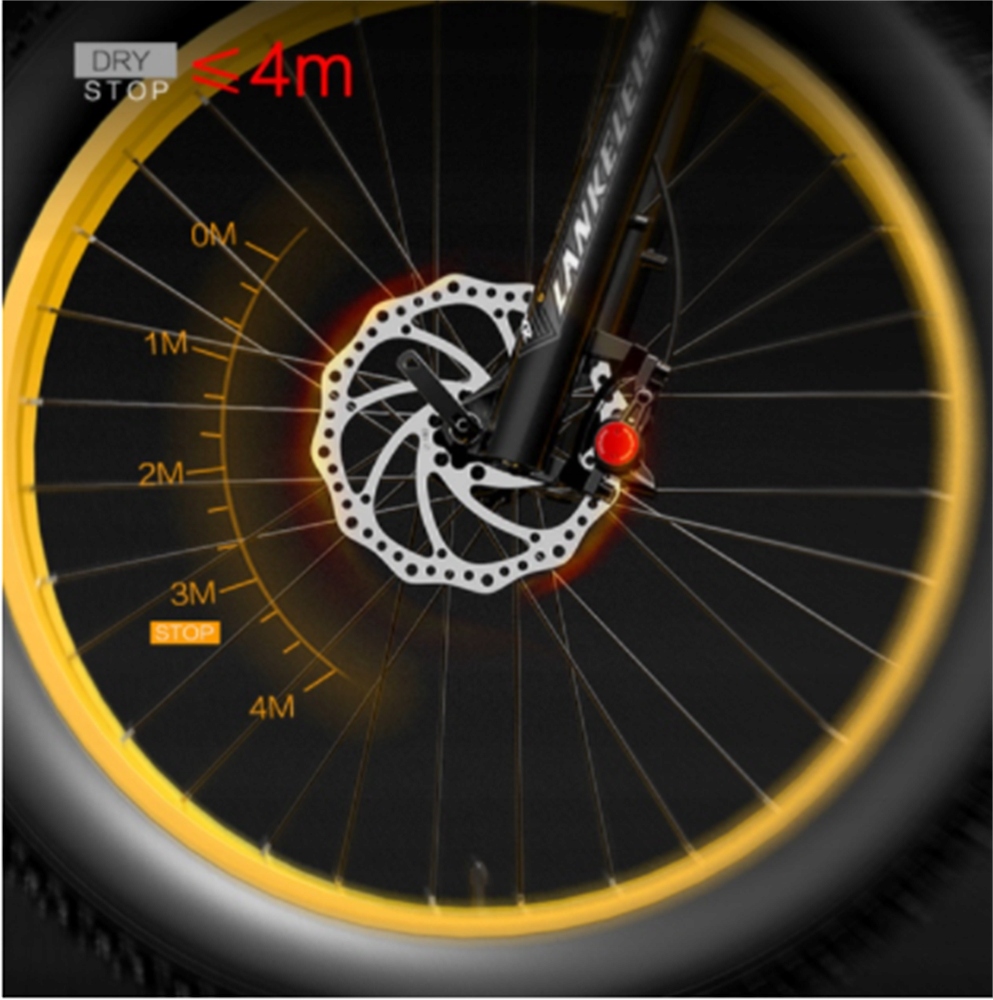

ZOOM POWER-OFF HYDRAULIC DISC BRAKE DUAL PISTON POWERFUL BRAKING,SENSITIVE BRAKING

Taiwan's original ZOOM HB-875 sensor-type dual hydraulic disc brake, CNC anode integrated mold, the brake feel and stability are greatly improved, hydraulic brake lever, integrated hydraulic cylinder, achieve zero cylinder explosion rate, and far exceed In addition to the safety of the front and rear wheels, the rear disc brake weighs only 0.62KG.

SOFT TAIL REAR OIL SPRING SUSPENSION

FOUR-BAR LINKAGE STRONG SHOCK ABSORBER

The four-bar linkage structure (front fork of the lower frame, front fork of the upper frame, shock absorber joint, 650-pound rear oil spring shock absorber) enhances shock resistance and shock resistance, and loads the frame Increase to 200kg and provide excellent performance.

7-SPEED TRANSMISSION SYSTEM

SHIMANO IMPORTED FROM JAPAN

Optional imported Shimano 7-speed transmission system, customized aluminum alloy crank 52 aluminum alloy crank chain, classic front 1 rear 7-speed combination, sis positioning, durable 7 The gear greatly enhances the fun of riding.

• shimano M310-7
• 48T chainring

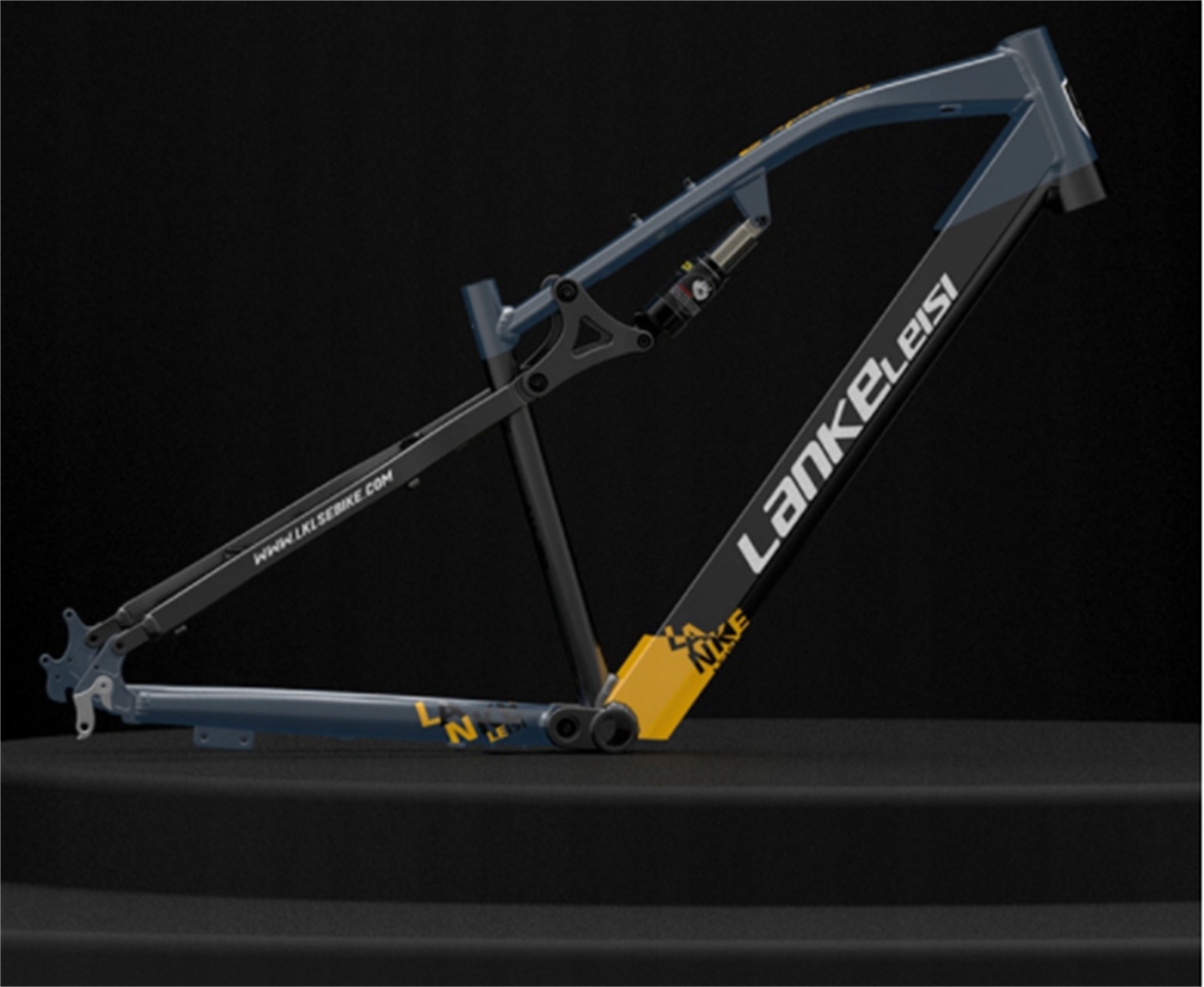

RUGGED DESIGN PUTS SAFETY FIRST

The strictly selected aluminum alloy 6061 material, after T4T6 heat treatment, has higher strength, corrosion resistance and rust resistance, and ensures the support strength of each part.

• Electrostatic paint
• Structural mechanics
• stable and durable

ERGONOMIC SEAT SHORTEN THE BRAKING DISTANCE

The streamlined widening seat and ergonomic design are both spacious and comfortable. The exercise posture is better and the riding experience is more friendly.

Parametry RV700

Rozmiar

• Materiał stop aluminium
• Rozmiar po rozłożeniu 193*120*87-107 cm
• Rozmiar opakowania 153*30*85 CM
• Obręcz ze stopu aluminium 26*4.0
• Występ
• Waga netto 31 kg
• obciążenie 150 kg
• Zastosowana wysokość to 165-190 cm
• Prędkość maksymalna 42 km/h
• Maksymalne nachylenie 35°
• Stopień wodoodporności IP54

Normy

• Ładowarka 48V 3A
• Pojemność baterii 16AH
• Napięcie akumulatora 48V
• System sterowania 48v16a Sterownik wektorowy
• Napięcie znamionowe silnika 48V
• Moc znamionowa silnika 1000 W
• Czas ładowania 5-6h
• Przebieg 16ah tryb elektryczny 55km / tryb wspomagania 130km
• Hamulec ZOOM HB-875 Hamulec indukcyjny dwutarczowy, hydroaktywny

Zawartość opakowania

• 1 x rower Lankeleisi RV700
• 1 x ładowarka
• 1x klucz płaski
• 1 x wielofunkcyjne narzędzie sześciokątne
• 1 x zamek
• 1 x szybkie zwolnienie przedniego koła
• 1 x pompa
• 1 x instrukcja obsługi
