Konwerter USB - UART TTL 4 kanały Multi Protection

Industrial USB TO 4CH TTL UART CONVERTER

Stable Transmission | Multi Devices | Multi Systems

• Extending USB to 4CH TTL (UART) with hardware flow control, allows concurrent and independent communication for each channel
• Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
• Onboard IO protection circuit for surge suppress and ESD protection, safe and stable communication

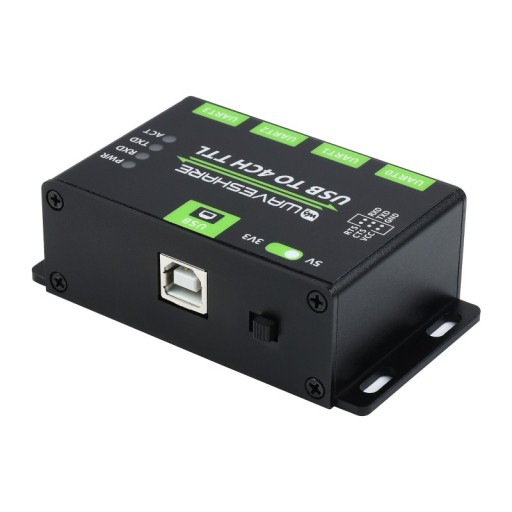

• Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level

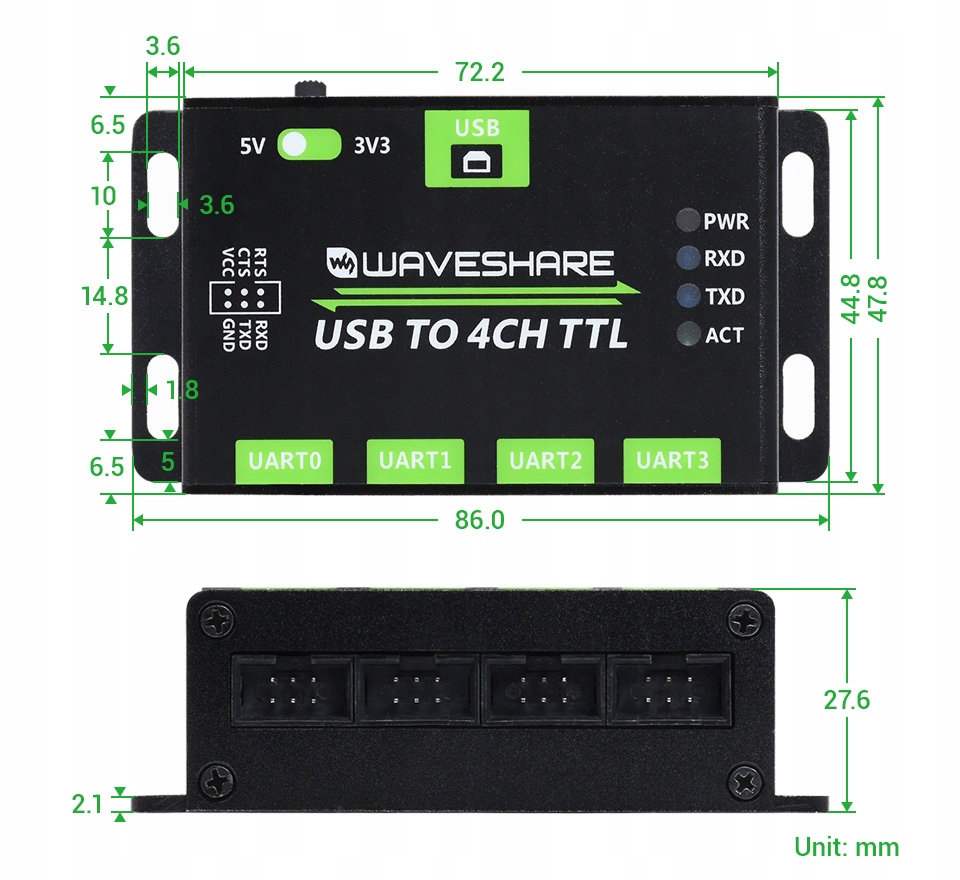

• Aluminium alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted

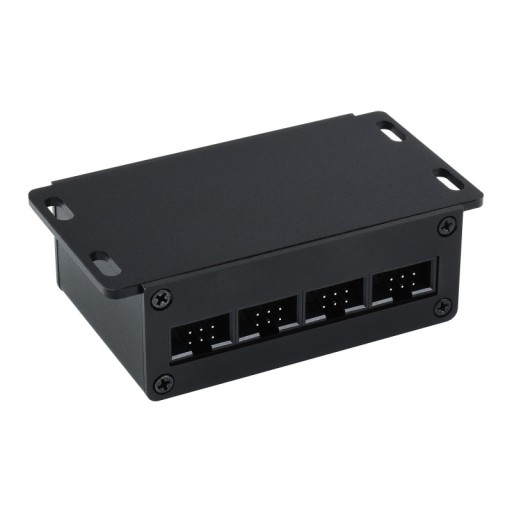

• Quality USB-B connector, and IDC connector with fool-proof design

• Working voltage: 5V
• Working current: 32mA
• Serial Baud rate: 1200bps ~ 460800bps
• TTL voltage: 3.3V / 5V (configuable)
• Working temperature: -40°C ~ 85°C
• Supported OS: Mac OS, Linux, Windows 11/10/8.1/8/7, Android

Multiple Protection, Safe And Stable

Onboard Resettable Fuse And Protection Diode, Provides Over-Current/Over-Voltage Proof, Improves Shock Resistance; Onboard IO Protection Circuit For Surge Suppress And ESD Protection, Safe And Stable Communication

• PWR: power indicator, lights up while the USB is connected and voltage is detected
• RXD: receiving indicator, lights up while the device port is receiving data
• TXD: sending indicator, lights up while the USB port is sending data
• ACT: status indicator, lights up while the converter is properly operating

• VCC: 5V or 3.3V output, configured by switch
• GND: Ground
• TXD: Connecting to MCU.RXD
• RXD: Connecting to MCU.TXD
• RTS: Connecting to MCU.CTS
• CTS: Connecting to MCU.RTS

W zestawie:

1. USB TO 4CH TTL x1
2. USB cable (~1.2m) x1
3. 6PIN squid wire (~20cm) x4

Dodatkowe informacje, sterowniki do pobrania ze strony Wiki : https://www.waveshare.com/wiki/USB_TO_4CH_TTL
