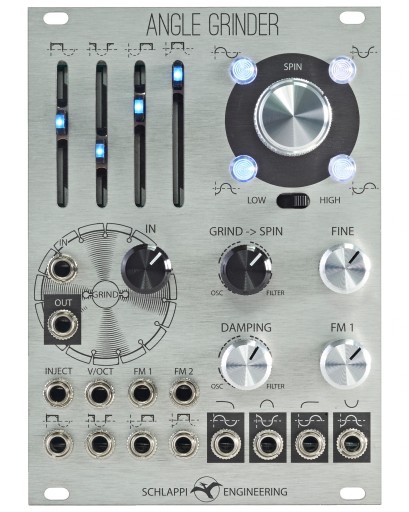

Schlappi Engineering ANGLE GRINDER Silver 18HP

Eurorack Module

• Quadrature sine oscillator with filter and waveshaper
• SPIN section: Quadrature sine wave oscillator with 4 outputs (0°, 90°, 180°, 270°) and tracking over 4 octaves
• GRIND section: Compares the SPIN outputs with an input signal and derives square wave signals which are fed into a VCA and modulated by the 4 GRIND CV inputs and GRIND fader
• Depending on the setting, the module functions as an oscillator or state variable filter
• Controls for coarse and fine tuning, attenuation, GRIND/SPIN ratio
• FM input with attenuator (linear or exponential)
• GRIND input with attenuator
• 4 SPIN outputs provide phase-shifted sinusoidal signals or in filter mode low-pass, band-pass, high-pass and notch characteristics
• Current consumption: 81 mA (+12 V) / 78 mA (-12 V)
• Width: 18 TE
• Depth: 25 mm
