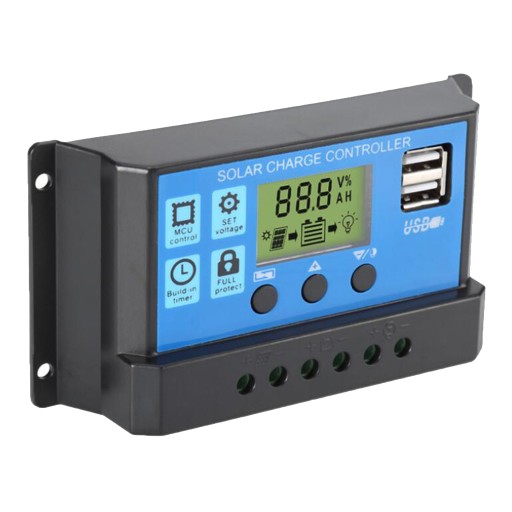

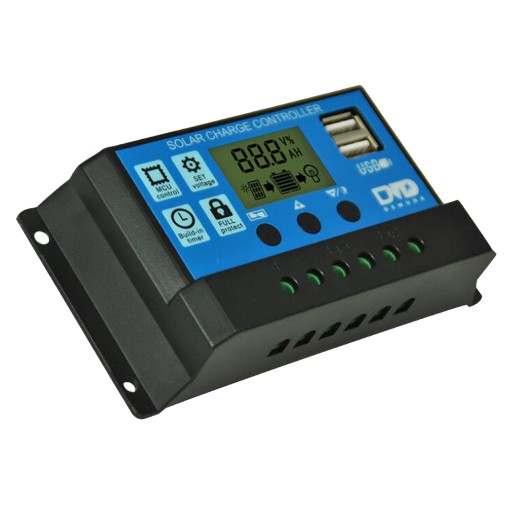

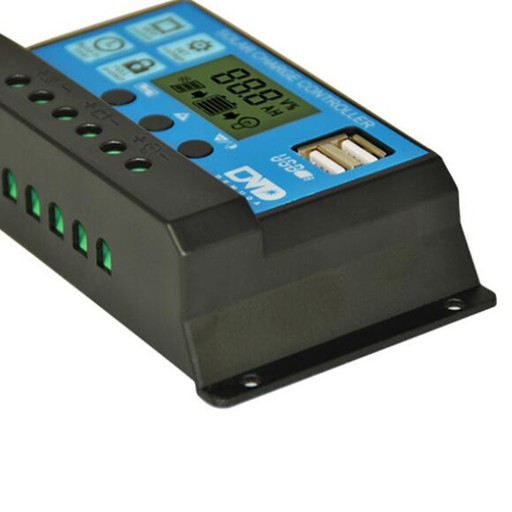

60A LCD PWM Solar Panel Battery Regulator Charge Controller Dual USB

Description:

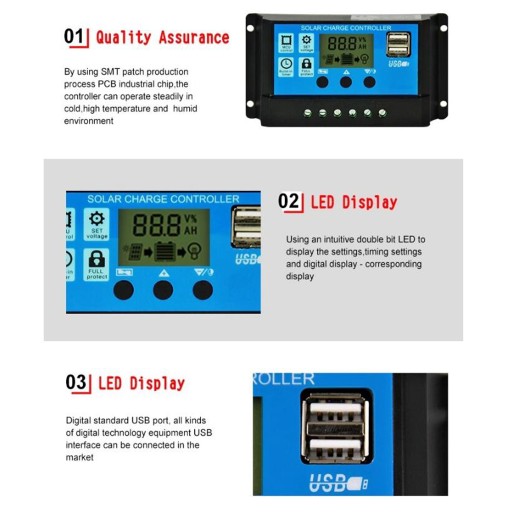

The large screen LCD shows that the parameters of charging and discharging can be adjusted.

Complete 3 stage PWM charging management.

Built-in over-current/short-circuit protection, open-circuit protection, reverse protection, are automatic recovery type, do not damage the controller.

Double MOS anti backflow circuit has extremely low calorific value.

Easy to set up and operate. suitable for home, industrial, commercial, etc.

Specification:

Material: ABS

Rated Voltage: 12/24V

Rated Current: 60A

Charge Mode: PWM

Function:

1. Always keep the battery on fill voltage condition.

2. Prevent the battery from over-charging.

3. Prevent the battery from over-discharging.

4. Prevent the battery from reverse charging to solar panels during

nights.

5. Reverse polarity protection for battery

6. Reverse polarity protection for solar panels

7. When the battery voltage is low, the controller will

automatically cut off the load from the system. If the voltage of

battery is back to normal and the load will restart working.

8. Thunder protection

9. According to the battery voltage grade, the controller can

automatically set charge-off voltage, the load-off voltage, the

load- restore voltage.

10. The controller will automatically compensate the temperature of

the charging voltage according to the changes of ambient temperature.

Size Chart:

Size: 183x90x47mm / 7.2x3.54x1.85inch

Package Includes:

1 Piece Solar Panels Battery Charge Controller

1 Piece User Manual
