DVD B&O Beovision Avant 32. 0522

TV:

B&O Beovision  Avant 32 DVD

Dane techniczne:

• BeoVision Avant 32 (DVD) Specifications
• Dimensions W x H x D: 84 x 109 x 61cm Weight: 86 kg
• Cabinet finish:
• Pearlescent shades of black, silver, red, green, blue
• Power consumption: Typical 134 watt/stand-by < 2 watt
• Stand turning function: +/- 35 degrees, remote operated
• two memory positions
• Picture tube/Visual picture: 81 cm - 32"/76 cm - 30" (16:9)
• Wide-Screen, Real Flat
• Curtain : Electronic
• Contrast screen: Anti-reflex coating
• VisionClear: Auto picture adjustment
• Auto cut-off
• Digital CTI
• Adaptive Luminance Peaking
• Scan Velocity Modulatioin
• Improved letterbox
• Motion Clear
• Teletext: Teletext level 2*, 1780 pages
• Wide Screen Signalling (WSS)
• Fastext (FLOF), 4 memory pages per program
• 17 teletext languages in 7 groups
• Tuning: Autotune, program move and semiautomatic naming
• Tuner range: 45 - 860 MHz, VHF, S, Hyper, UHF
• TV programmes: 99
• Stereo decoders: A2 + NICAM
• Theft protection: With pin-code or Disabled:
• DVD: Built-in
• Disc sizes: 12 cm - 5"
• Frequency range: 20Hz - 20KHz
• Playback the following: DVD-Video, Video CD, CD-A, CD-R, CD-RW
• Multistandard PAL/NTSC
• Signal-to-noise-ratio Typical 100 dB, A weighted, in Audio mode
• DVD Zone According to type
• Loudspeakers:
• Power amplifier modules 4 units
• Long term max. output power 39 watts
• per module
• Frequency range 50 - 20,000 Hz
• Max. sound pressure level 96 dB
• Cabinet principle/ net volume Bass Reflex / 3.5 litres
• Woofer 115 mm - 4*"
• Tweeter 18 mm - 3/4"
• Bass equalizer Adaptive
• Magnetic shielded Yes
• Dolby® Digital Decoder :
• Decoding capabilities Dolby® Digital 5.1 channel decoding
• Dolby® Pro-Logic decoding of two channel Dolby® Digital
• Dolby® Pro-Logic decoding of two channel PCM
• Dolby® Pro-Logic decoding of two analogue channels (Lt/Rt)
• Automatic format detection(Dolby® Digital, PCM)
• Calibration 3 channel tone control & loudness (L/C/R)
• Bass management, Delay management
• Sound modes (Speaker 1 - 5) Speaker 1 : Stereo internal speakers (subwoofer muted)
• Speaker 2 2.0/2.1 : Stereo external speakers / Stereo external speakers + subwoofer
• Speaker 3 3.0/3.1 : Dolby®-3 stereo / Dolby®-3 stereo + subwoofer
• Speaker 4 4.0/4.1 : Stereo-4 / Stereo-4 + subwoofer
• Speaker 5 5.0/5.1 : Dolby® Digital or Dolby® Pro-Logic Surround / Dolby® Digital + subwoofer
• Connections :
• - Digital Audio input 2 x Coax phono, Input-1 for AV-SCART, Input-2 for DECODER-SCART
• - External Beolab loudspeakers 5 x Power Link (left, right, rear left, rear right, subwoofer. - internal center)
• Loudspeakers recommended, Beolab 1, Beolab 8000, Beolab 6000, Beolab 4000, Beolab 4500
• Front/Rear
• Loudspeaker recommended, BeoLab 2
• subwoofer
• System modulator : Splitter/system modulator output to link room (Beolink Video Distribution)
• Frequency range 479 - 831 MHz (in 1 MHz step), Dual side band
• Audio Mono
• According to type : FM sound system G : 5.5MHz, FM sound system I : 6MHz
• Connection 1 x 75 ohm aerial male
• Satellite modul : (optional)
• Tuner range 950 - 2150 Mhz
• Programmes 119 TV/Radio
• Sound systems Mono/Stereo
• Satellite radio Yes
• Down conv. supply 14/18 Volts control, Tone control (22 Khz)
• DiSEqC (One way control)
• Connections 2 x F-connector (2 x 75 ohm)
• Set Top Box-Controller : (optional)
• Controlling boxes with Beo4 Supported boxes : See list at Bang & Olufsen Retail System (via internet)
• Controlling one or two boxes 1 box control by use of the IR-blaster included in the kit.
• (2 x STB) 2 box control by use of the IR-blaster included in the kit and IR Y-adaptor(6174171)
• and one more IR-blaster(8330352).
• Connection 1 x stereo mini jack
• TV Input 1 x 75 ohms aerial female
• System modulator 1 x 75 ohms aerial male (splitter/system modulator output). According to type : G or I RF output
• V.TAPE - AV - Decoder 3 x 21-pin sockets
• V.TAPE : CVBS in/out, RGB in (automatic 16:9 sense(pin-8), B&O AVL)
• AV : CVBS in/out, RGB in, S-VHS in/out (automatic 16:9 sense (pin-8),
• automatic S-VHS configuration, B&O AVL
• DECODER : CVBS in/out (automatic 16:9 sense (pin-8))
• Beolink 1 x Master Link
• Dolby® Digital
• - External Beolab speakers 5 x Power Link (2 x front, 2 x rear, 1 x subwoofer)
• - Digital Audio input 2 x Coax phono, Input-1 for AV-SCART, Input-2 for DECODER-SCART
• Camcorder / Auxiliary 3 x Phono sockets (video in/audio L-R in) *)
• S-Video (S-VHS) 1 x Y/C playback 4-pin socket
• Headphone socket 1 x Mini jack
• V.TAPE DECODER 1 x 21-pin for V.TAPE decoder (video, L, R in/out)
• Satellite modul (optional) 2 x F-connector input (2 x 75 ohms)
• STB-Controller output 1 x Mini jack (stereo for 2 x IR-blaster with IR-Y-adaptor)
• (optional)
• *) Possible to configure Set Top Box(STB) at Camcorder input and control via STB-Controller.

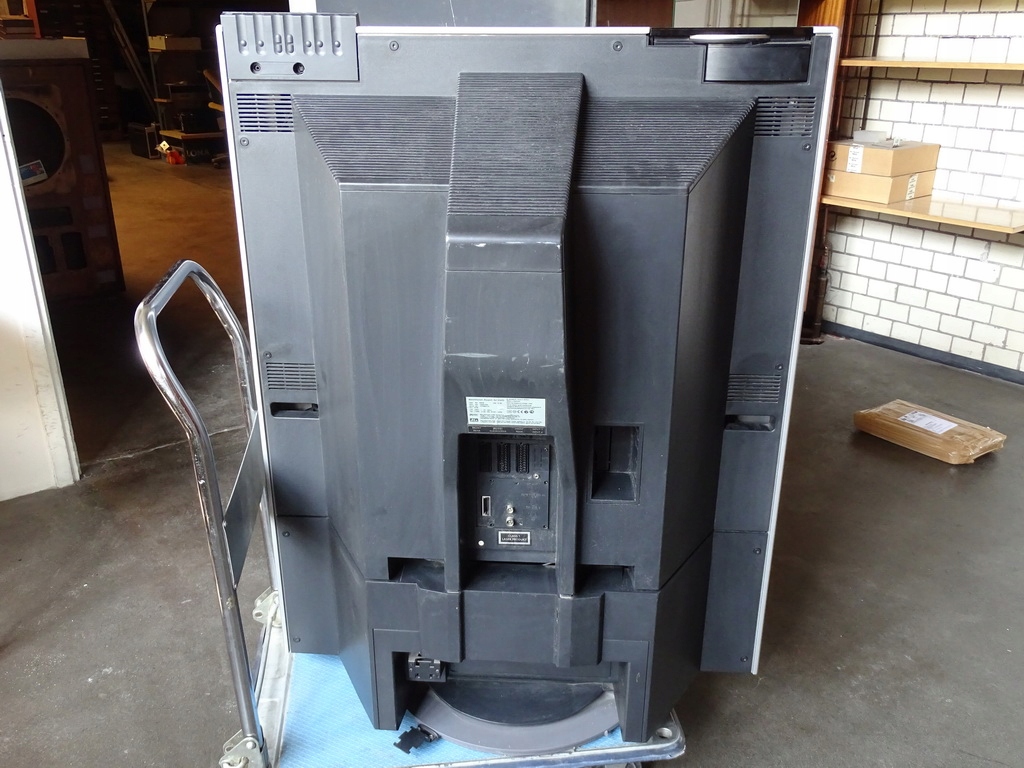

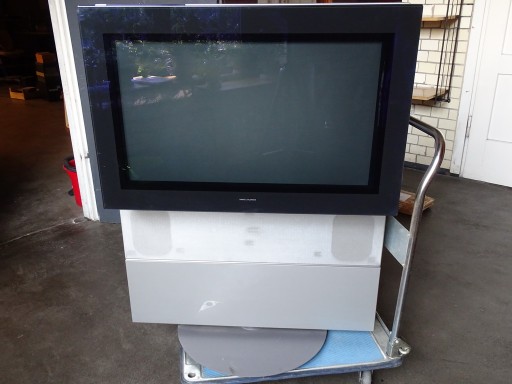

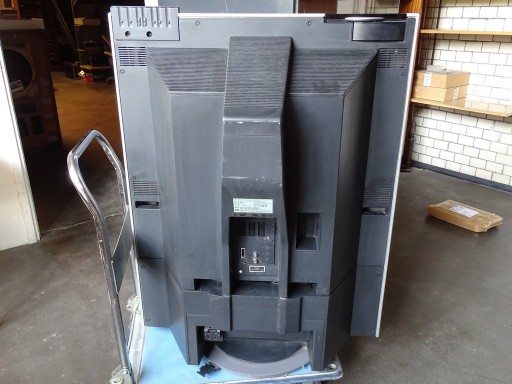

Stan - wizualny: patrz sekcja zdjęć;

- techniczny: Uszkodzony.
