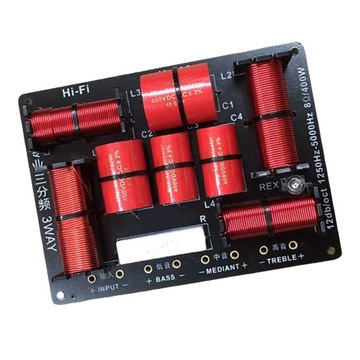

3 Way Audio Speaker Temperature Resistant Speaker

Audio Crossover HiFi Audio for Home High Power Speaker Sound Quality Upgrade

Description:

Circuit: The treble, midrange and bass are all designed with a second-order standard 12db/oct circuit.

High-tone band current-limiting over-current protection bubble: When the current is small, the bubble acts as a wire; when the current is too large, it acts as a load, consumes the current, and the high-pitched sound is not burned by the current too much. It belongs to a movable type protection.

The inductor is wound with oxygen-free copper wire, the bass coil uses 1.2MM wire diameter, the mid-range upper coil uses 1.1MM wire diameter, the middle lower limit coil uses 1.0MM wire diameter, and the high-pitched coil uses 1.0MM wire diameter; The copper wire is full of power, making the bass more powerful.

The capacitor uses a non-inductive MKP capacitor with a high withstand voltage of 400V, which better prevents the peak voltage from crossing and burning the speaker.

The design is reasonable, the appearance is exquisite, and the sound quality is excellent.

Specification:

Rated power: 400W

Max Power: 800W

impedance: 8Ohmdesign (Applicable to 4-8 ohm speakers.When using 4 ohm speakers, the crossover point is more wider.)

Filter Features: 12 dB / oct

Frequency points: 1250HZ/5000HZ (The bass frequency works below 1250HZ, the midrange frequency works at 1250HZ-5000HZ, and the treble frequency works above 5000HZ)

Size Chart:

16.3cmx12.1cmx4cm/6.42inchx4.76inchx1.57inch

Package Includes:

1*Three Way Speaker Crossover
