Сетевой аудиоплеер профессиональной версии DMS-800

CARY AUDIO DMS-800 AMERYKAŃSKI ODTWARZACZ SIECIOWY Z DAC KLASY HI-END  DUAL MONO !! kolor black

ZAPRASZAMY NA PROFESJONALNY ODSŁUCH SALONOWY

DMS-800 — odtwarzacz sieciowy

ABOUT THE DMS-800PV

Professional Version (PV)

NETWORK AUDIO PLAYER

When we created the DMS-700, we began thinking about a no holds barred version of the DMS capable of competing with the best of the best in Network Audio Players/Streamers/DACs. First, it would have to exceed the performance of the DMS-700 which is no small feat. After considerable research and design, the DMS-800 Professional Version (PV) was born.

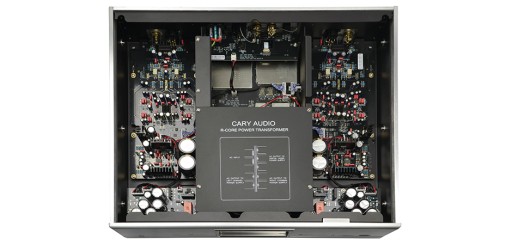

The DMS-800 Professional Version (PV) is a limited-edition marvel. Simply put, the DMS-800PV is our ultimate expression of our famous DMS platform. If the DMS-700 is analog-like, the DMS-800PV IS analog. Bigger, deeper, wider, and smoother in sound, the DMS-800PV is capable of revealing the actual instruments within the recordings and not just the sound of the instruments. This allows for a more dimensional insight into the music, illuminating a more true-to-life sound. Inside, the DMS-800PV is a dual mono design, doubling most everything inside the renown DMS-700. While the DMS-700 utilizes a single digital/analog stage board with a single current output switched resistor 4 channel AK4499EQ DAC (equivalent to 4 DACs), the DMS-800PV uses separate right and left channel digital/analog stage boards. Each stage board has their own 4 channel current output switched resistor AK4499EQ DAC for a total of 8 individual DAC channels for a true fully balanced dual differential circuit. In addition, the DMS-800PV includes a Crystek Oscillator Clock, two separate DSP driver stages, 14 groups of independent regulated power supplies and two independent groups of analog stage regulation power supplies as well as other enhancements. The DMS-800PV has a larger 5” high resolution display and a slightly taller stance than previous DMS models. Inside the DMS-800PV is a marvel of circuitry design regarding power regulation and both digital and analog circuitry.

The DMS-800PV is also Roon Ready and MQA Certified. Like other DMS products, the DMS-800PV allows streaming from on-board TIDAL, Qobuz, Spotify, Spotify Connect, vTuner, or from files stored on a network computer or NAS Drive. If that wasn’t enough, it includes three (3) USB-A ports for listening from connected USB hard drives, flash drives, and even from a SD card. As an extra measure for convenience, the DMS-800PV also includes aptX™ HD input and output (output for Bluetooth speakers or headphones) as well as Airplay.

Additional features include Ethernet or Wi-Fi connectivity, TruBit™ 7-step Selectable PCM upsampling to 768kHz, and selectable PCM to DSD conversion with selectable 3-step DSD upsampling. Digital inputs include Coaxial (x2), Optical (x1), and AES/EBU (x1) as well as Coaxial and Optical digital outputs, RCA and XLR fully balanced outputs, OSO™ Re-clocking, MU-MIMO Wi-Fi, and a full 3-volt output and variable volume control for direct-to-amplifier connection.

Download the free iOS and Android Control APPS for the DMS-800PV.

Experience MQA over TIDAL. Learn more here. Sign up for TIDAL HiFi here.

The following section describes the DMS-800PV basic specifications. The specifications are subject to change without notice or obligation.

Master Clock Jitter

Below measurable levels

Digital Sampling Rates (Fs)

44.1 kHz to 768 kHz, DSD64 to DSD512

Digital Filter

32-Bit 8x Oversampling Digital Filter

Digital/Analog Converters

2 – 4 channel AK4499EQ for working on true balanced output

BLUETOOTH

CSR Bluetooth v 4.0 with aptX® HD for 24 Bit / 48 kHz high definition audio decoder

Analog Filter

3rd Order Bessel

Analog Outputs

Balanced XLR, Single – Ended RCA

Digital Outputs

Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16 bit to 24 bit, DSD64, DSD128, DSD256

Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 bit to 24 bit, DSD64

Digital Inputs

USB x 3, SD Card x 1

BLUETOOTH x1

AES/EBU x1, Coaxial x2, Toslink x1

Digital Input Sample Rate

USB/HDD operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16 bit to 32 bit, DSD 64, 128, 256 and 512.

BLUETOOTH Sample Frequency (Fs) 48 kHz, 24 bit.

AES/EBU, Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16bit to 24 bit, DSD64 to DSD256

Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16bit to 24 bit, DSD64

Control

Trigger input 12VDC x1

IR control x1

Communication

Ethernet RJ45 full remote configuration interface

Wi-Fi 802.11 b/g/n/ac support MU-MIMO

Power Input

Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz

AC Power Requirements

55 Watts

Finish

Custom aluminum chassis and faceplate available in either Silver or Black anodized finish

Weight

39.50 lbs

Dimensions

4.25″ H x 17.25″ W x 16.25″ D

AUDIO (LPCM)

Frequency Range

2 Hz – 22 kHz (44.1 kHz)

Amplitude Linearity

0.1 dB (20 Hz – 20 kHz)

Phase Linearity

3 degrees (20 Hz – 20 kHz)

Dynamic Range

129 dB (1 kHz) XLR OUT

Signal-to-Noise Ratio

127 dB (1 kHz)

Channel Separation

107 dB (1 kHz)

Total Harmonic Distortion

0.0001% (1 kHz)

Audio Output Level

2.0V RMS (220 Ω output impedance) for Volume at 0.0dB

3.0V RMS (220 Ω output impedance) for Volume at +8.0dB

Balanced XLR Output

+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB

+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

NETWORK, USB, SD CARD PLAYBACK

Playback Format Supply

.dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3, .aac, .wma, .ogg, .asf

Frequency Range

2 Hz – 100 kHz +/- 3.0 dB

Signal System

16, 20, 24, & 32 bit PCM and 1 bit DSD

Sampling Frequency

44.1 kHz to 384 kHz PCM and 2.822MHz – 22.5792 MHz DSD

Dynamic Range

129 dB @1kHz XLR OUT

DSD System Clock

Frequency 22.5792 MHz

Signal-to-Noise Ratio

127 dB

Audio Output Level

2.0V RMS (220 Ω output impedance) for Volume at 0.0dB

3.0V RMS (220 Ω output impedance) for Volume at +8.0dB

Balanced XLR Output

+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB

+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

SPDIF PLAYBACK; COAXIAL, TOSLINK, AES/EBU (lPCM)

Frequency Range

2 Hz – 100 kHz +/- 3.0 dB

Signal System

16, 20, and 24 bit

Sampling Frequency

44.1 kHz to 768 kHz PCM, DSD64, DSD128, DSD256

Dynamic Range

129 dB @1kHz XLR OUT

System Clock

Frequency 22.5792 MHz

Signal-to-Noise Ratio

127 dB

Audio Output Levelb

2.0V RMS (220 Ω output impedance) for Volume at 0.0dB

3.0V RMS (220 Ω output impedance) for Volume at +8.0dB

Balanced XLR Output

+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB

+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
