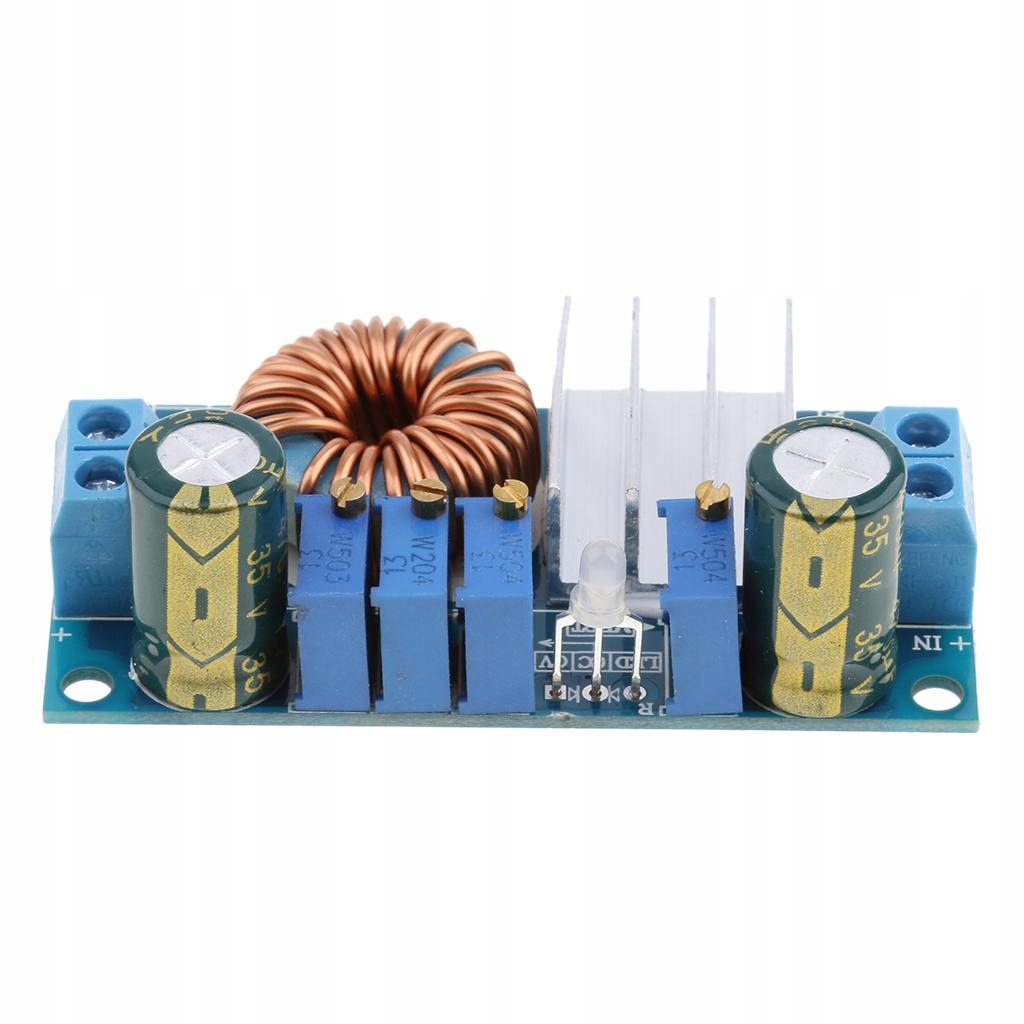

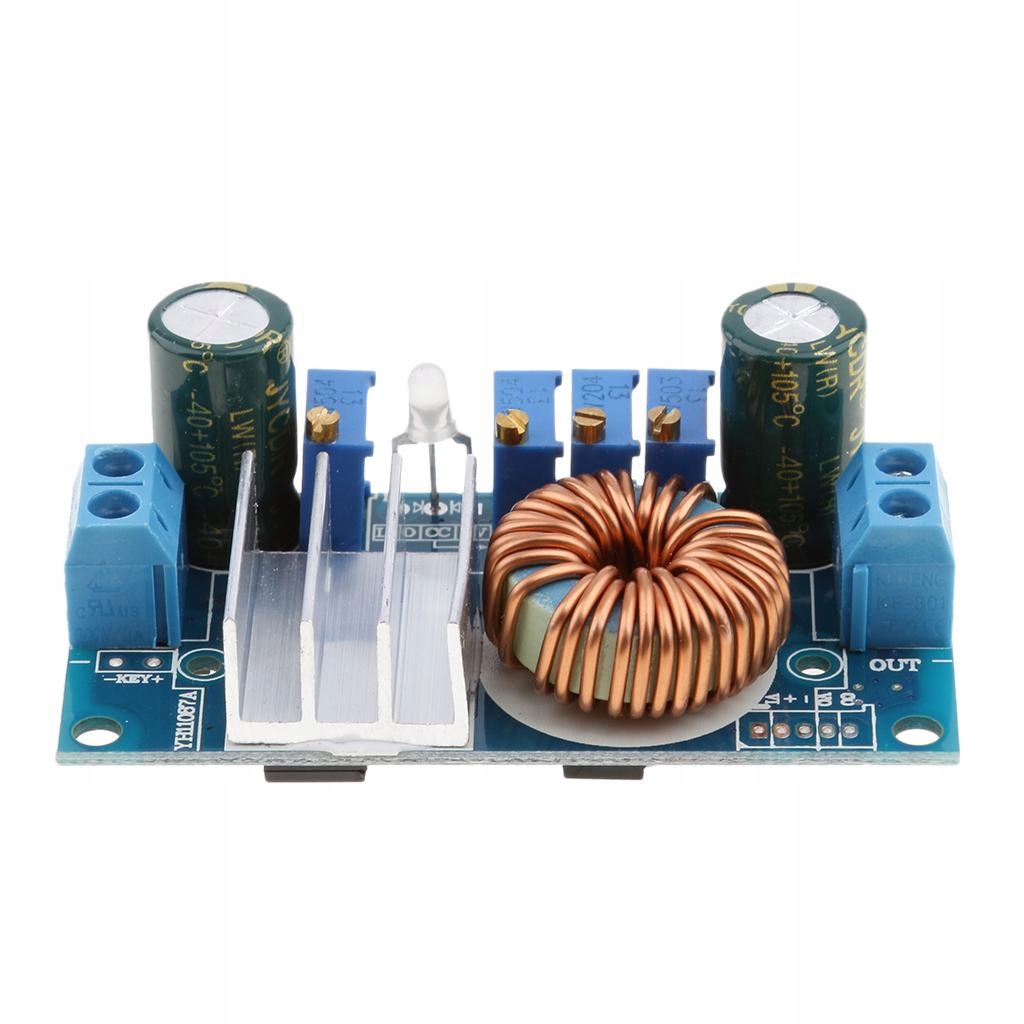

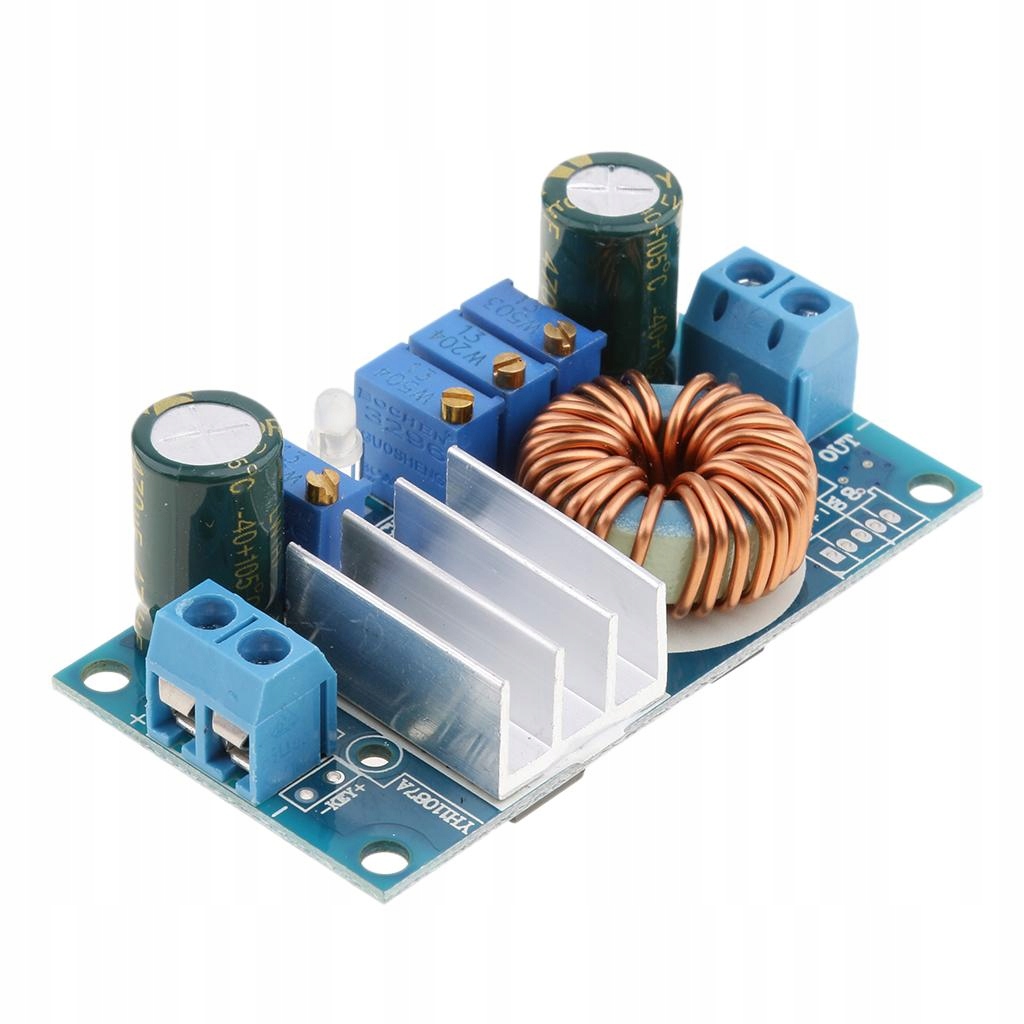

Модуль понижающего преобразователя контроллера MPPT DC/DC 6–36 В до –32 В

5A MPPT Solar Panel Controller DC/DC 6V-36V to 1.25-32V

Description:

5A constant current and voltage module with MPPT control.

Effectively shorten the time of solar battery charging.

Maximum 95% conversion efficiency, improve charging efficiency.

Can charge batteries, lithium batteries, etc. and with turn light control.

Power supply for the mobile phone or a variety of digital products, as a vehicle power supply, driving high power LED.

Specification:

Properties: Non-isolated buck module (BUCK)

Input voltage: 6-36V

Output voltage:1.25-32V continuously adjustable (the default output 5V)

MPPT voltage setting range: 6-36V

Output current range: 0.05-5A (The default output current is 3A,within 3A for a long time)

Turn

lights output range: 0.01-5A (default 0.3A) the current range will be a

little difference because the parts parameter error.

Multifunctional double display: input voltage, output voltage, output current, output power

Operating temperature: -40 to + 85 degrees

Operating frequency: 180KHz

Conversion efficiency: up to 95% (efficiency is related with input voltate,output voltage,current and voltage difference)

Short circuit protection: Yes

Over temperature protection:Yes (automatically shut off the output after overtemperature)

Input reverse polarity protection: None, (if necessary, please add the string into the diode)

Output

anti-irrigation protection: None, the output must be connected to the

battery plus blocking diode, otherwise it will burn the module!

Charging

indicator:charging red, fully charged green. Turn light detection way

for current.When using solar panels to supply electricity,the small sun

charge current is also very small, less than turn light's current, it

will green light,but it is not full, please note that distinction.

Installation: 3mm screws(4)

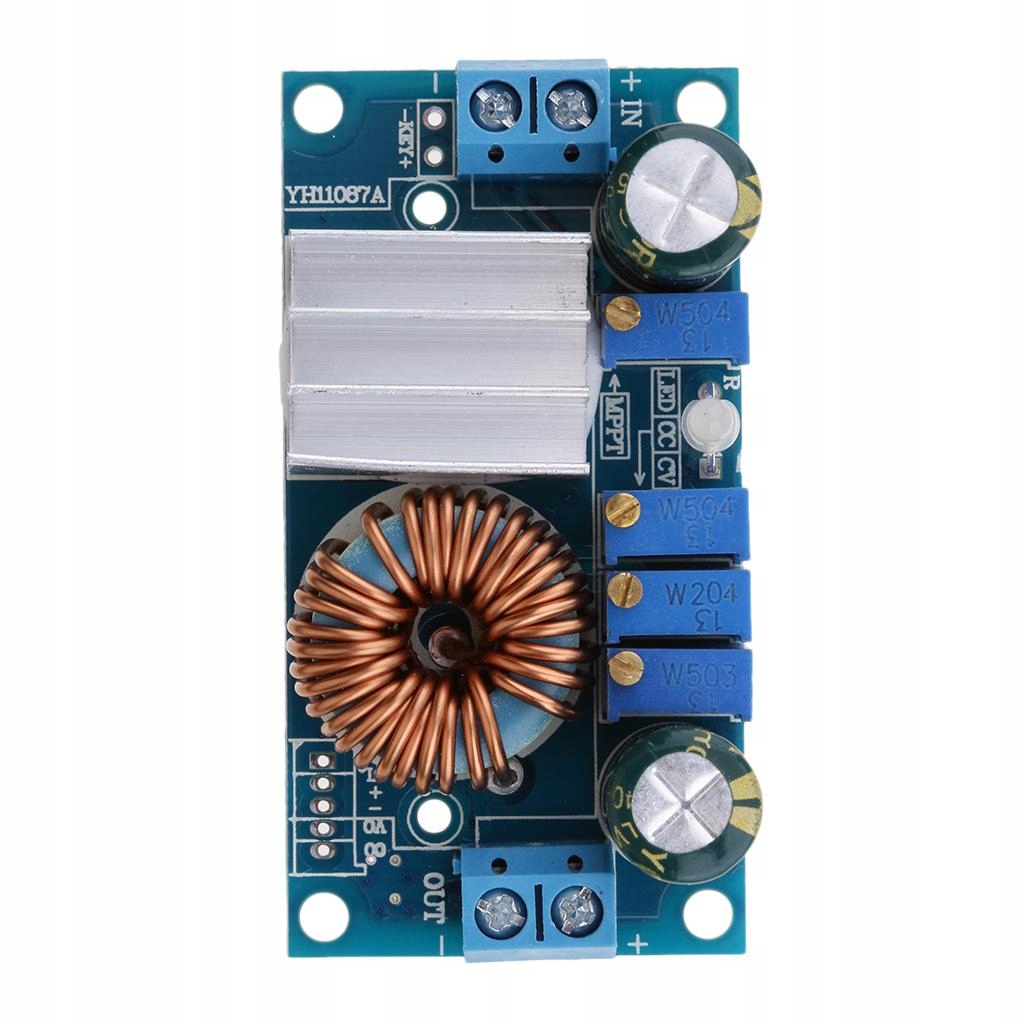

Connection:Terminals, IN is input, OUT is output

Size:60*31*22 mm(L * W * H)

Package Includes:

1 Piece MPPT DC-DC buck converter
