ATOMSTACK S20 PRO 130 W laser engraver with air support kits

The newest four 6W laser coupling technology is so powerful it can cut 12-15mm tung wood panels, 8mm black acrylic panels and even 0.05mm stainless steel sheet in one pass.

Product description:

Product model number: ATOMSTACK S20 PRO

Print size: Recommended print size 400 * 400mm

Carved Objects: Wood, Bamboo, Cardboard, Plastic, Leather, PCB, Alumina, Non-reflective

Electroplating layer and paint metal surface layer, 304 stainless steel mirror, glass, ceramic, cotton fabric, slate;

Items to cut: cardboard, non-woven fabric, wooden board, acrylic, thin plastic board, sponge

Machine power: 130 W

Laser power: 90 W

Laser output power: 20-21W

Wavelength: 445 ± 5nm

Engraving accuracy: 0.01 mm

Focus method: fixed focus laser, no need to focus

Laser Shield: Protect the user's eyes and prevent pets from catching the laser spot.

Operating software: LaserGRBL, LightBurn, Support Win XP / Win 7 / Win 8 / XP / Win 10.

Input format: NC, BMP, JPG, PNG, DXF etc.

Data transmission method: USB connection.

Input voltage: AC100-240V, 50 / 60Hz

Output voltage: DC12V, 5A

Certification: CE FCC RoHS FDA PSE

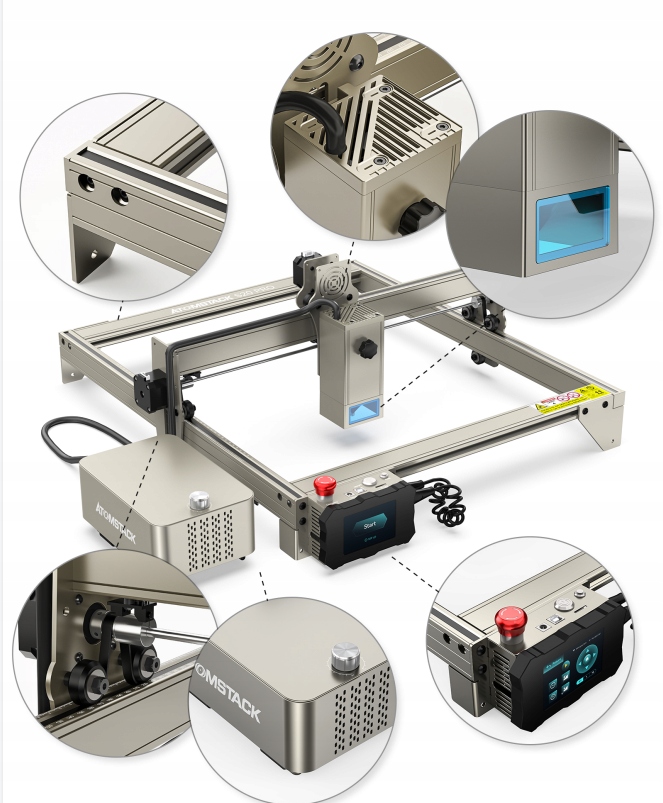

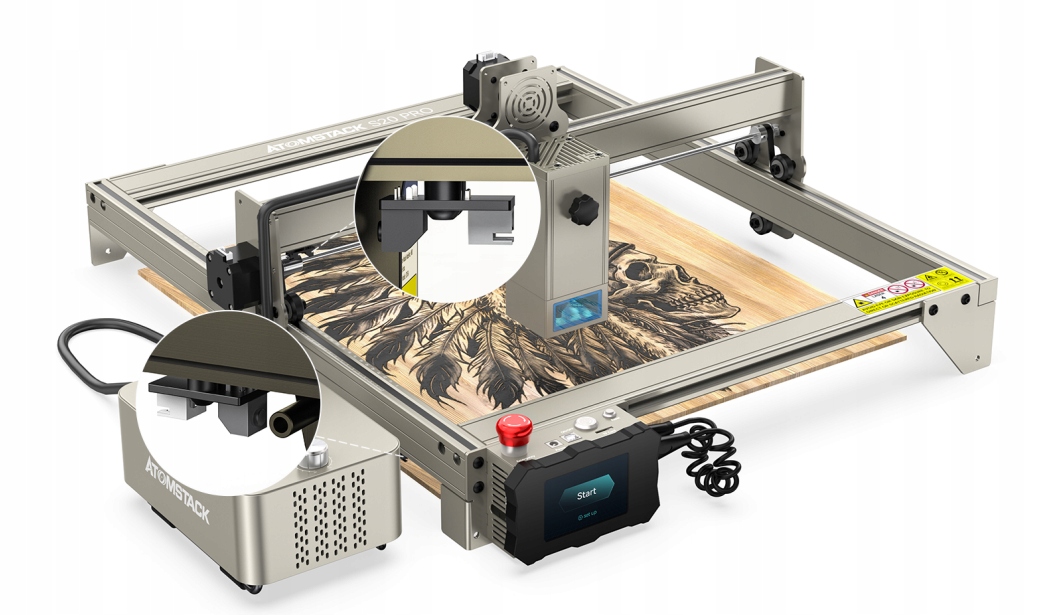

130W Quad-Laser Engraving Cutting Machine Built-in Air Assist System

The world's first quad-core diode laser

Multi-color engraving of stainless steel metal

12mm solid wood cutting in one pass

8mm acrylic cutting in one pass

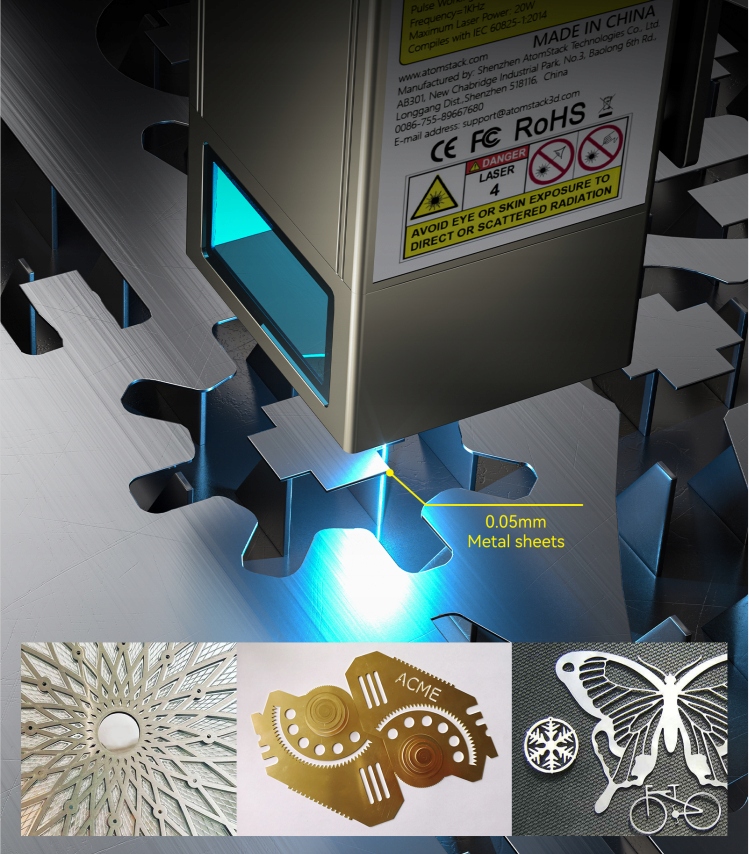

It can even cut 0.05mm thin sheet metal.

Patented APP and MCU control system

Built-in powerful air assist kit。

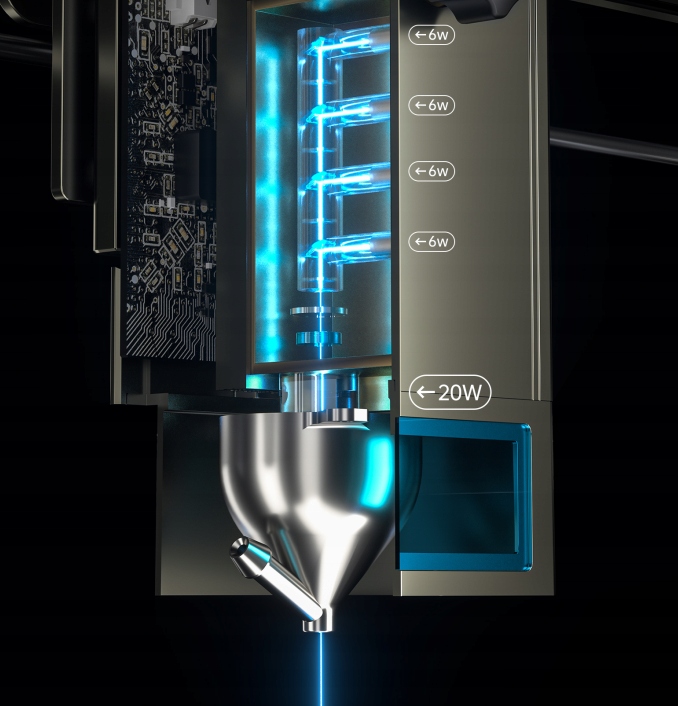

Coupling technology

Based on compressed and shaped spot technology, four 6W laser diodes are coupled with optical mirrors to increasethe laser power to 20W, which could compress thespot to 0.08mm * 0.1mm in size.

He can cut metal like a wild beast.

256 different grayscales make the engraving more than just black

According to the different grayscale information from the image, the laser energy is automatically adjusted to achieve finer contrast in the finished design as well as a more natural color transition.

Ability to engrave and cut a wider range of materials

With a 20W laser power, more than 40 materials can be engraved, including many materials that cannot be engraved and cut with a 5W or 10W laser.

A 12-15mm thick solid wood plank is cut off with just one cut

High-performance air assist makes cutting faster and also improves results for a clean surface.

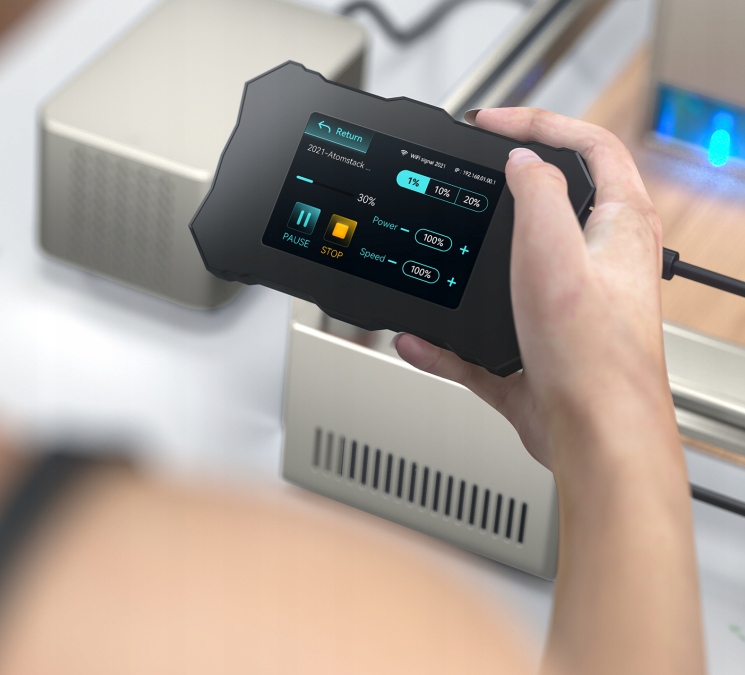

Offline engraving possible ".

Terminal for stand-alone operation. The ability to control the engraver without a phone or computer. Engraving without a computer connection is supported.

Dynamic optical power compensation

This machine not only adopts the four-in-one coupling beam technology, but also has a built-in advanced algorithm to achieve the dynamic power compensation of the four laser beams, monitor the power of the four laser beams in real time at any time, and provide power compensation to keep the laser stable above 20W optical power.

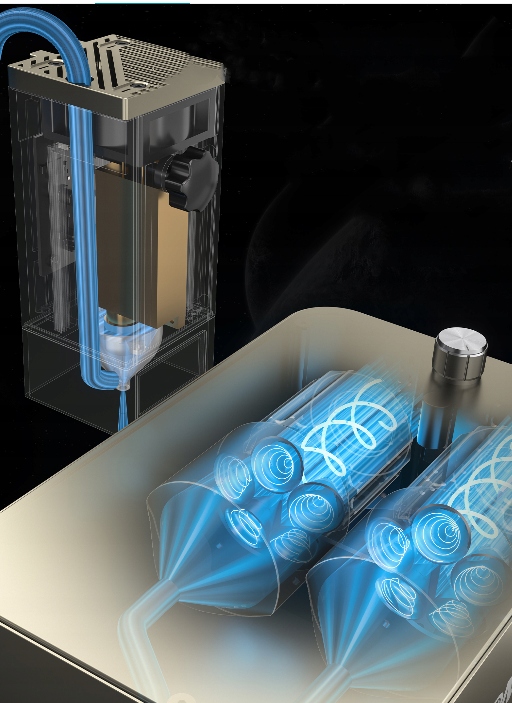

Improved two-cylinder compression,

more air volumemore stable

Upgraded cylinder compression, fast gas delivery, stable gas volume, double the work effidency. Using thickened aluminum alloy material, low noise, low heat generation rate, and longer service life

Pressure: More than 120Kpa

Built-in air assist kit and focus kit

The laser head has a built-in air assist kit and a fixed focus kit, no need to purchase additional accessories

Glass coated with a panoramic filter

Innovative use of coated filter glass provides better vision transmission.Track can be clearly visible during engraving, can effectively filter the laser, prevent eye injuries as well as eliminate the potential danger of acrylic burnout.

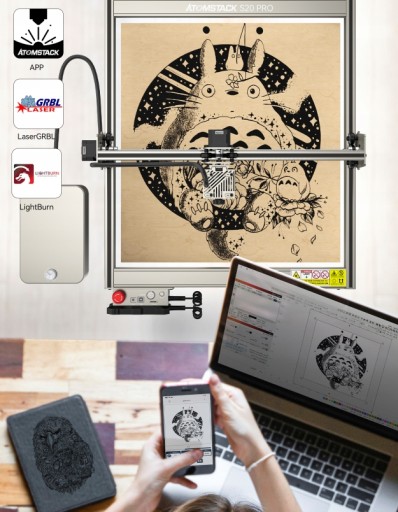

Support multiple systems and file formats LightBurn / LaserGRBL / APP (JPG / SVG / PNG / DXF / TIF / BMP / PDF / NG) Linux / Mac OS / Windows (Win XP / Win 7 / Win 8 / Win 10 / Win 11)

Supports Mobile App Operation Create engraving jobs with images from your mobile album, instant shooting or files from a TF card.

With the upgraded 32bit ship motherboard, the engraving speed is faster and the operation is more stable 32bit motherboard can support offline work, which makes it more convenient to use.

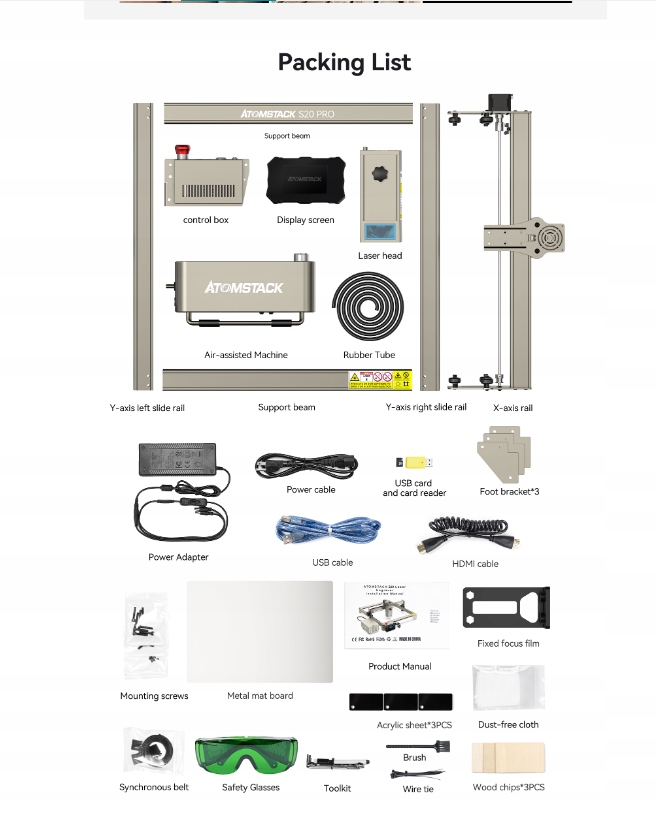

S20 Pro packing list

• 1 x Mounting screws
• 1 × Toolbox
• 4 × Foot foam
• 1 × film
• 3 × acrylic plate
• 3 × wooden plate
• 10 × wire ties
• 1 × desiccant
• 1 × brush
• 1 × cleaning cloth
• 1 × card reader
• 1 × TF card
• 1 × Power Adapter
• 1 × Manual
• 1 × Data cable
• 1 × Touch screen assembly
• 1 × HDMI cable
• 1 × Laser module
• 1 × Cutting mat
• 1 × X axis assembly
• 1 × Left Y axis profile
• 1 × Y axis - right profile
• 1 × Profiles on the base
• 1 × Profiles under the base
• 3 × Std
• 1 × Air Booster Kit
• 1 × User Manual
