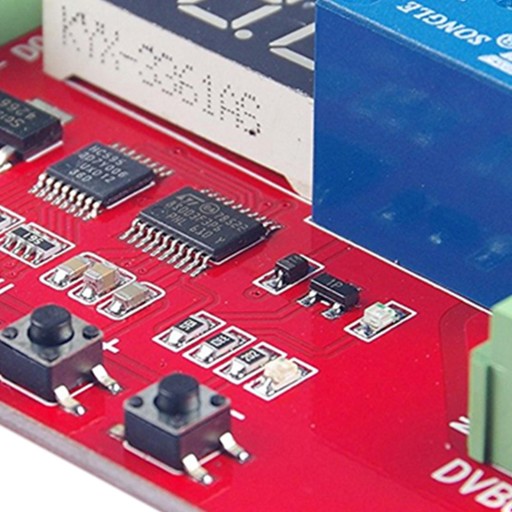

DVB01 Voltage Measuring Module Range 0-100V DC Digital Display Autosave 12V

Description:

It provide 5 kinds of functions for users to choose, to meet more application needs.

You can set the voltage upper and lower voltage limits.

Measuring range 0-100V DC, measuring accuracy ±0.1V.

You can set the automatic power saving function.

All set parameters can be automatically saved, the setting contents won't be lost when blackout occurs.

Specification:

Working voltage: DC 5V, 12V, 24V (nominal voltage should not exceed ±10%).

Size(L×W×H): Approx. 67×44×20mm/ 2.64×1.73×0.79 inch

Module voltage inputs: a 4-wire interface, all the terminals are the interface.

DC+: DC power positive

DC-: DC power supply negative

V+: measuring voltage positive electrode

V-: measure negative voltage

5 types of function:

1. Voltage measurement: select this function, the relay will not move, the digital display of the current measurement voltage;

2. Charging monitoring: When the measured voltage is lower than the lower limit voltage, the relay pulls above the upper limit voltage, the relay is disconnected;

3. Discharge monitoring: When the measured voltage is higher than the upper limit voltage, the relay pulls, below the lower limit voltage, the relay is disconnected;

4. Interval within the pull: When the measured voltage between the upper and lower limits, the relay pull, the other case the relay is off;

5. Interval outside the pull: When the measured voltage is lower than the lower limit voltage, or the measured voltage is higher than the upper limit voltage, the relay pull; other circumstances the relay is disconnected.

Package Includes:

1 Piece of DVB01 Digital Display Voltage Measuring Module
