Moduł regulatora regulatora 5A MPPT do

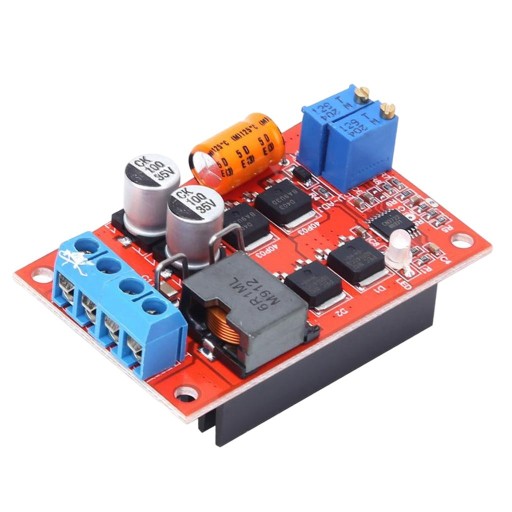

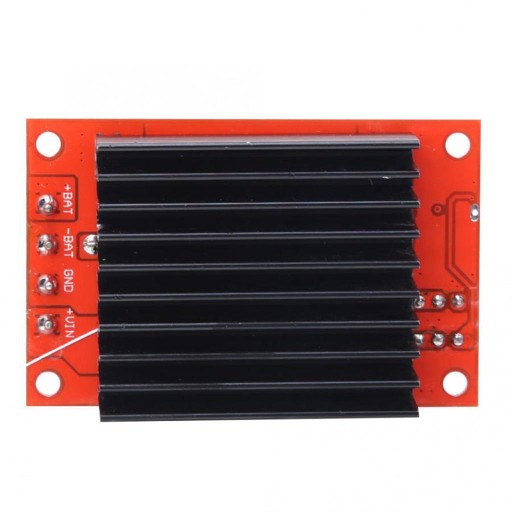

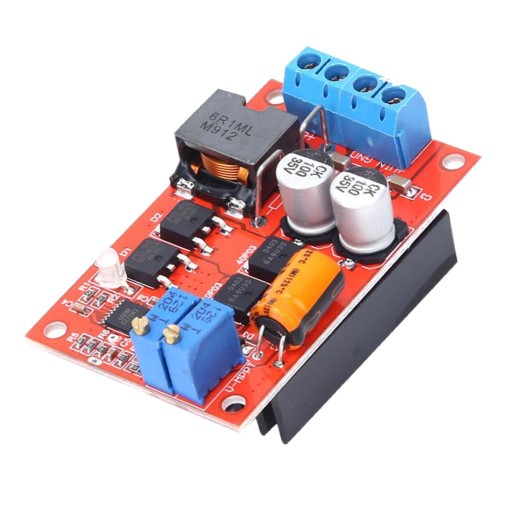

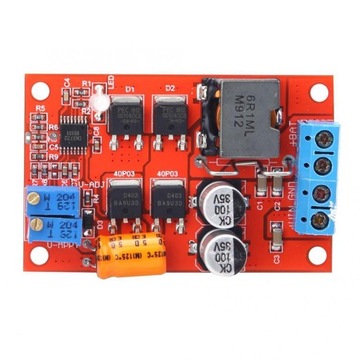

5A MPPT Solar Panel Regulator Electrical Equipments for Solar Wind Energy

Description:

Suitable for 1W-100W 9V-28V 9V 12V 18V 24V solar panels to charge batteries, NiCd, NiMH, Lithium batteries, wind turbines or solar street lights, etc.

Both the input and output terminals use high-end switching power supplies as high frequency low impedance electrolytic capacitors (LOW ESR) to ensure output ripple and effectively filter out switching power supply faults.

MPPT maximum power point automatic tracking, make full use of solar charging; automatic intelligent three-stage charging mode, self tracking solar charging current is automatically adjusted; 3 mA no-load current, even if the weak morning light can easily start automatically, Forget the manual switch.

It has super-low dropout protection to prevent MOS tube reverse connection, and the input reverse connection does not work; it has output backflow protection, which effectively prevents reverse battery charging at night.

Input voltage: DC 8-28V input DC voltage. (Forbid AC input)

Output voltage: DC 5-26V infinitely variable.

Specification:

Material:Electronic Components

Size Chart:

58x37x23mm/2.28x1.46x0.91inch

Package Includes:

1x Solar Panel Regulator
