2.4Ghz Wireless Mini Remote Control Receiver Electric Skateboard Longboard

Description:

2CH 2.4Ghz Electric Skateboard Remote Control and Receiver

Universal 2.4Ghz remote control with receiver for electric skateboard

Compact, comfortable holding and easy to operate

Built-in battery, rechargeable

Designed with wrist strap, safe and easy to carry

Specification:

Frequency: 2.4G

Voltage: 3.7V

Battery: Built-in lithium battery

Capacity: 400MAH

Control: PWM

Output width: 1-1.5-2 milliseconds

Reset: automatically return to center

Charging method: wired charging

Charging port: Mico-USB

Charging voltage: 5V

Charging current: 500MA

Charging time: 2H

Overcharge protection

Remote control distance: 10M

Number of channels: 2

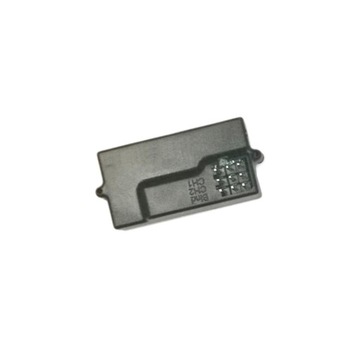

Receiver:

Frequency: 2.4G

Use voltage: 5V

ESC power supply

External power supply interface

Frequency line

Out of control protection

Number of channels: 2

How to bind the transmitter to the receiver?

1).Check and make sure all the wires are mounted,and the remote is CLOSED,insert the bind plug into CH3(Bind) on the receiver;

2).Switch on the ESC,you can see the receiver red light flash;

3).Press and hold on the bind button on the remote and then turn the remote on;

4).You should notice the transimitter go from flashing red to solid red,and also the solid red of the receiver;

5).Once you see a solid red light, you now know the two are binded together,and please pull the bind plug out (this is important,so the remote can record the throttle mid to realize the fail safe)

6).Then you can test it again by turning off the controller and it should flash.if you turn the power on Transmitter back on it should go back to solid red.Before running,it's better to test the fail safe fuction by closing the remote,if the motor didn't move,so the fail safe fuction is in good

Package Includes:

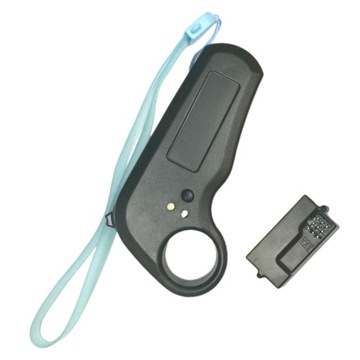

1 Piece Remote Control

1 Piece Receiver
