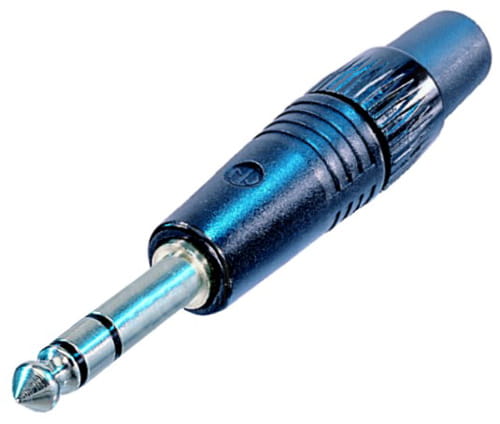

NEUTRIK NP3C-BAG wtyk jack stereo TRS

NEUTRIK NP3C-BAG wtyk jack stereo TRS.

Product Title NP3C-BAG Connection Type Plug Gender male Electrical Contact resistance depends on mating connector mΩ Dielectric strength 1 kVdc Insulation resistance > 2 GΩ (initial) Rated current per contact depends on mating connector A Rated voltage < 50 V Mechanical Cable O.D. 4 - 7 mm Lifetime > 1000 mating cycles Wiresize 1 mm² Wiresize 18 AWG Wiring Solder contacts Material Bushing Polyacetal (POM) + PU Contact plating 2 µm Ni (Su) Contacts Brass (CuZn39Pb3) Insert Polyamide (PA 6.6 30 % GR) Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Strain relief Polyacetal (POM) Environmental Standard compliance IEC 60603-11 / EIA RS-453 Solderability Complies with IEC 68-2-20 Temperature range -20 °C to +65 °C
