2-канальный RS485 CAN HAT (B) с несколькими функциями защиты

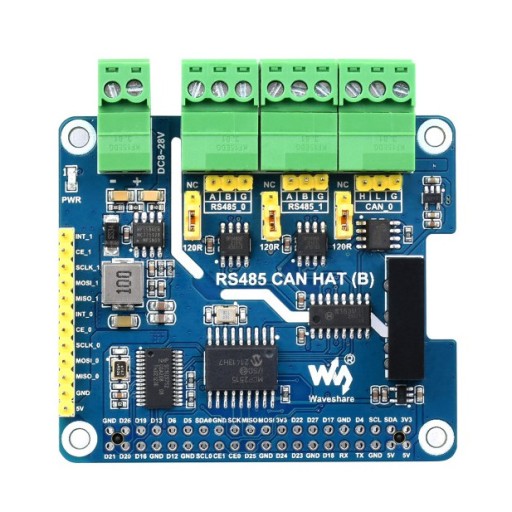

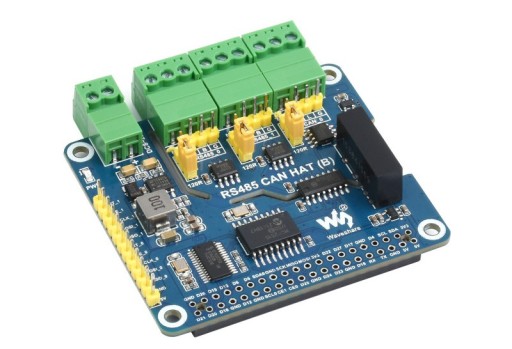

RS485 CAN HAT (B)

SKU: 23227

2-Ch RS485 and 1-Ch CAN, SPI communication

Bulit-In Power Supply Isolation, ADI Magnetical Isolation, And TVS Diode, Etc.

Dodatkowe informacje, schemat, przykłady oprogramowania itp https://www.waveshare.com/wiki/RS485_CAN_HAT_(B)

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

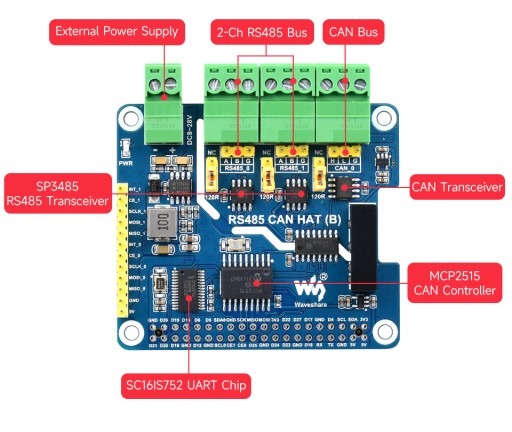

• 1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converts SPI to CAN
• 2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485
• Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time
• Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
• Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
• Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
• Onboard 120Ω terminal resistor, configured by jumper
• Onboard terminals and pin headers, more convenient connection

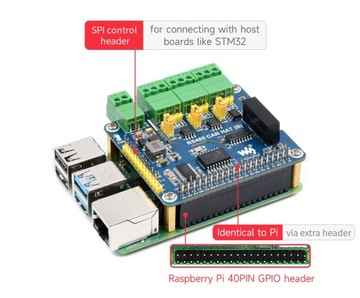

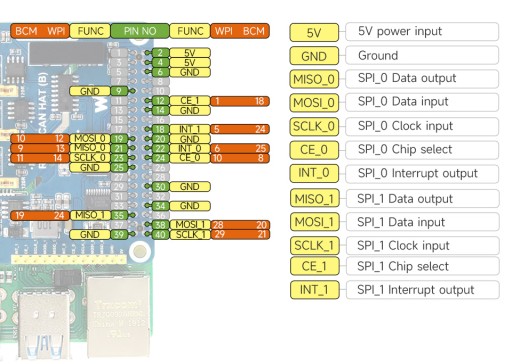

• Breakout SPI control pins, for connecting with host control boards

Standardowe złącze 40PIN GPIO, zgodne z płytkami z serii Raspberry Pi

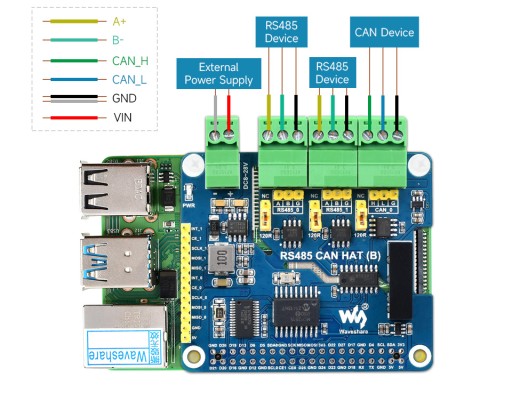

Expand 1-Ch CAN And 2-Ch RS485

CAN: Adopts Controller MCP2515 With CAN Transceiver

RS485: Adopts SC16IS752 And SP3485 Dual-Chip Combination

Industrial Grade Isolation Protection

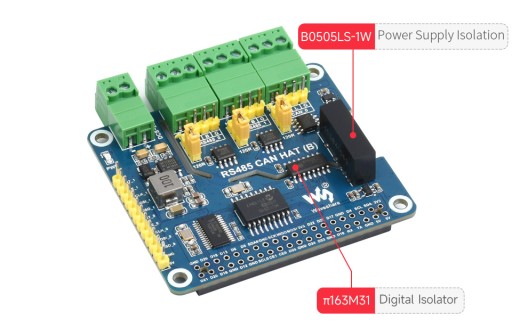

• Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
• Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption

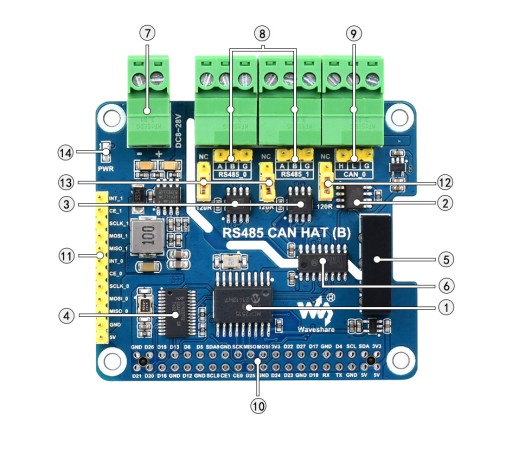

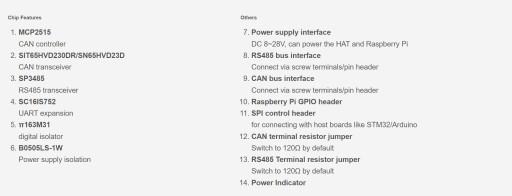

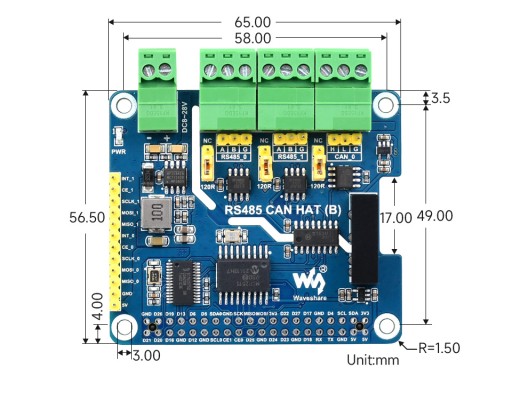

Budowa modułu:

W zestawie:

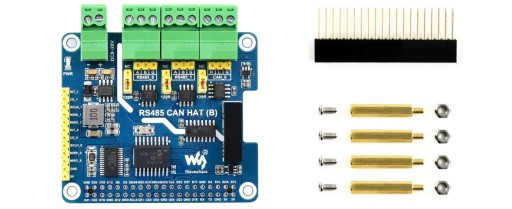

1. RS485 CAN HAT (B) x1
2. 2x20PIN female header x1
3. Screws pack x1

Moduł RPi widoczny na zdjęciach nie wchodzi w skład sprzedawanego zestawu.
