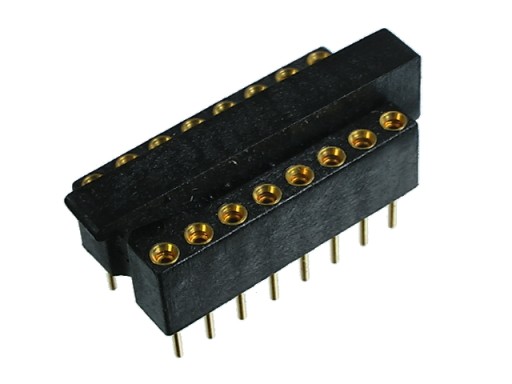

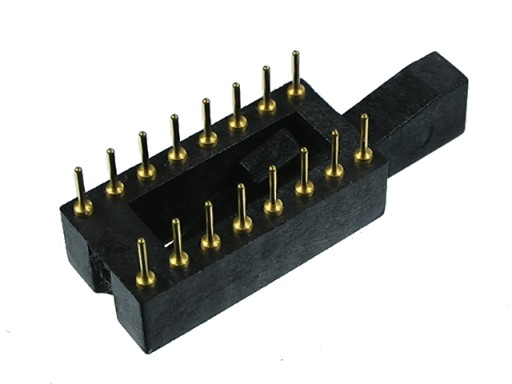

Прецизионная основа DIL16 с выталкивателем, 2 шт.

Witamy!

Oferujemy podstawki precyzyjne 16 pin

z wyrzutnikiem

• no. of contacts: 16
• contact material: CuZn-alloy
• contact spring: gold-plated
• contact sleeve: gold-plated
• surface contact/contact sleeve: Ni+≥0.2µm Au
• inner contact spring material: CuBe-alloy
• inner contact spring surface: Ni+0,75µm Au
• plugability for circuit points: Ø0,4...0,56mm
• 0,22x0,25mm... 0,4x0,55mm
• insert depth: 2.5...3.6mm
• insertion / drawing force: 4 lamellas contact
• 1.8 N/1.4 N
• shock resistance: 50 g
• vibration resistance max.: 15 g
• volume resistance: 10 mΩ
• contact resistance: 4 mΩ
• contact resistance after 1000 cycles: 7 mΩ
• capacity between two adjacent contacts: 0,4 pF
• nominal current: 1.5 A
• nominal voltage: 150 V DC
• test voltage: 1000 V
• insulating body material: PPS, GF
• temperature range: -40°C... +200°C
• (260°C/10 s)
• class of flammibility: UL 94 V-0
• specific insulation resistance: >1012 Ω·m
• reflow solderable: yes

Producent: FISCHER

pełna nazwa: DIL 16 PEK

Elementy nowe

Podana cena dotyczy 1 kompletu czyli 2 sztuk
