USB-CAN преобразователь CAN2.0A CAN2.0B

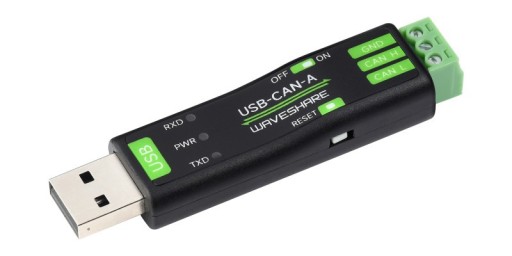

USB To CAN Adapter Model A, STM32 Chip Solution, Multiple Working Modes, Multi-System Compatible

Dodatkowe informacje, przykładowe oprogramowanie itp, do pobrania ze strony producenta https://www.waveshare.com/wiki/USB-CAN-A

• Supports CAN2.0A (standard frame) and CAN2.0B (extended frame)
• CAN baud rate is configurable in the range of 5Kbps-1Mbps
• Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode
• Supports multiple CAN data sending modes: single frame, multiple frames, manually, regularly and cyclic sending
• Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data
• Data can be saved as TXT or Excel
• Supports CAN bus detection for status checking
• Sending/receiving CAN data with time scale, allows sequentially displaying
• Baud rate of USB virtual COM port is configurable in the range of 9600 ~ 2000000bps (2000000bps by default)
• Supports setting working parameters by configuration software or serial command, can be saved after power off

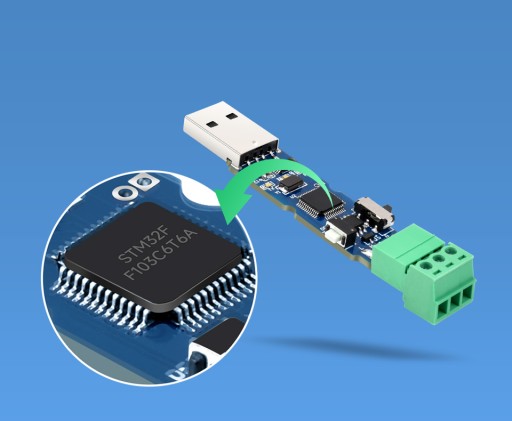

• Adopts STM32 chip solution, stable and reliable communication
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit
• Comes with master computer software for Windows system, easy to use
• Easy secondary development, just need to modify the sending and receiving commands

Primary Functions

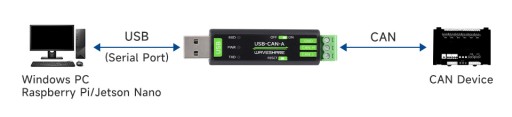

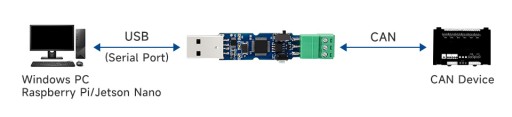

Collects Data From CAN Bus To PC Via USB For Transceiver Control, Data Analysis,

Acquisition And Monitoring Of CAN Bus Network

Support Multiple Working Modes

W zestawie:

1. USB-CAN-A x1
2. USB Cable ~1.5m x1
3. Screwdriver x1
