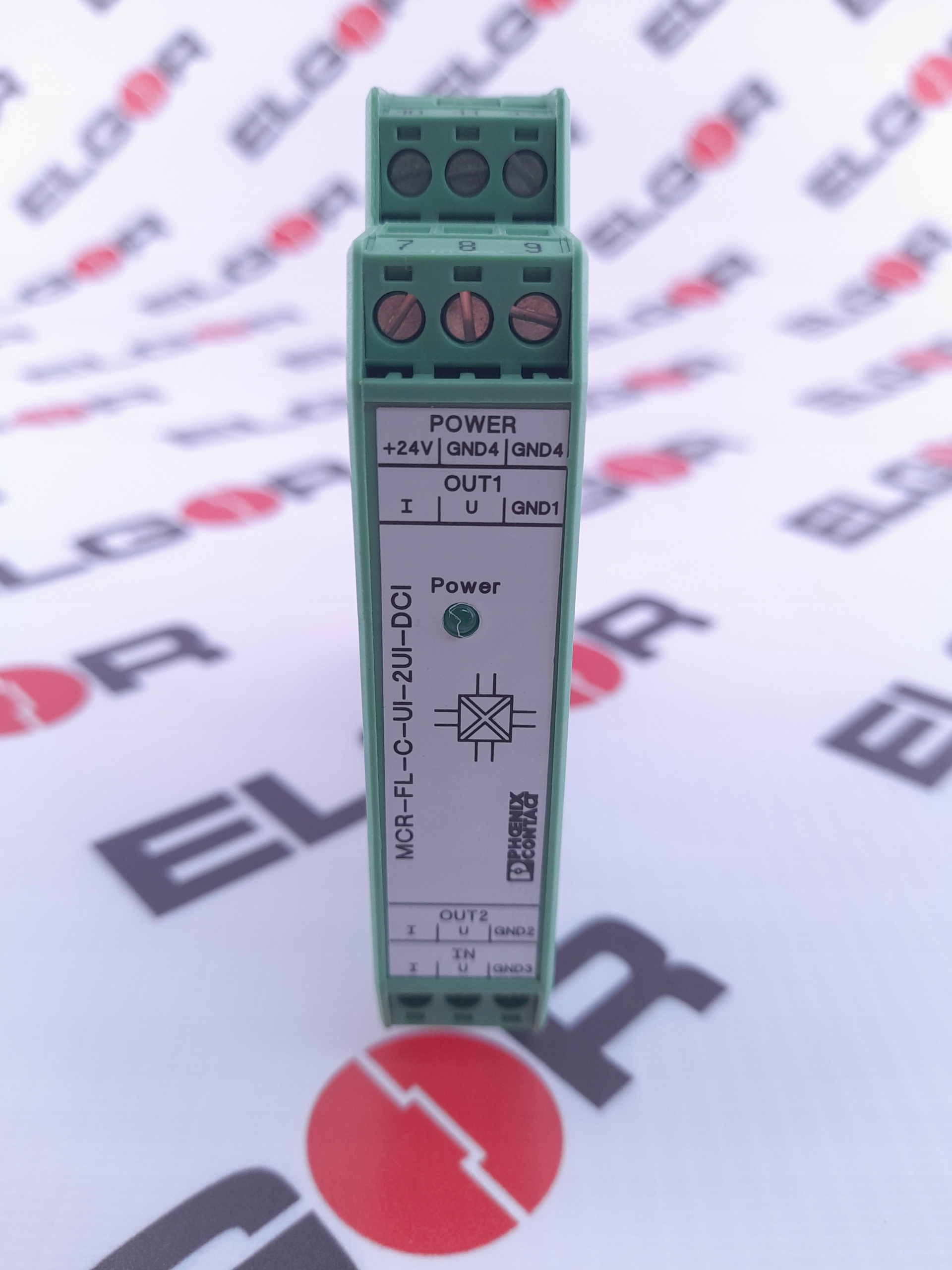

PHOENIX CONTACT MCR-FL-C-UI-2UI-DCI 2814854

SPECYFIKACJA:

• No. of channels: 2 (1 inputs, 2 outputs)
• Electrical isolation between input and output: yes
• Limit frequency (3 dB): 30 Hz
• Maximum power dissipation for nominal condition: 15 mW
• Test voltage, input/output/supply: 1.5 kV AC (50 Hz, 60 s)
• Protective circuit: Transient protection
• Step response (10-90%): 12 ms
• Maximum temperature coefficient: < 0.015 %/K
• Temperature coefficient, typical: 0.0075 %/K
• Maximum transmission error: ≤ 0.15 % (of final value)
• Transmission error, typical: 0.05 % (of final value)

• Supply voltage range: 20 V DC ... 30 V DC
• Max. current consumption: < 25 mA
