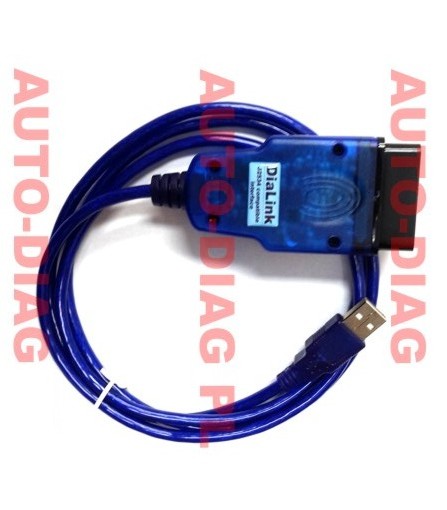

Интерфейс PCMFlash DiaLink J2534 PassThru 12/24 В

Interfejs DiaLink J2534 PassThru 12/24V PCMFlash i inne...

ISO-9141/ISO-14230 (K/L-Line)

J1850 VPW/PWM

ISO-11898/ISO-15765 (CAN)

zasilanie: 12V-24V

maksymalna przepustowość magistrali CAN, 8x szybszy niż OpenPort !

możliwość przełączenia w tryb: K-Line, BMW: K-Line / D-CAN, ELM327, CANHacker

współpracuje ze wszystkimi modułami PCMFlash po K line i CAN

a od v1.2.2 także z modułami 71 i 77

współpracuje z większością programów do diagnostyki i fleszowania sterowników

Dialink application:

• J2534 compatible adapter;
• Being supplied together with the J2534 interface library, Dialink can be used for ECU reprogramming with PCMFlash, CombiLoader or for diagnostics with any third-party tools;
• Suitable for SMS-Diagnostics 3;
• Together with SMS-Diagnostics 3 software it can be used for diagnostics of modern vehicles control systems with the standard SAE J1962 diagnostic connector (connection to other diagnostic connectors is achieved by the use of additional adapters).

Advantages:

• Capable of working with trucks (24V car network)
• Better compatibility with J2534 requirements (*1)
• High operational speed (*2)
• Good value for money

*1 in comparison with OpenPort software.

*2 the exchange speed of ISO-11898 (CAN) reaches the max capacity of the bus. It is up to 8 times faster than  OpenPort operational speed.

Supported protocols:

• ISO-9141/ISO-14230 (K/L-Line)
• J1850 VPW/PWM
• ISO-11898/ISO-15765 (CAN)

Power:

• 12V car network
• 24V car network
• Powered from a USB port of a PC

The full operational range of power voltage is from 8V to 35V which guarantees fail-free operation in any working conditions including trucks.

PC (laptop) connection:

• USB cable

Diagnostic connector pins:

• 2(BUS+)/10(BUS-): J1850 VPW/PWM (Ford/GM/Chrysler...)
• 4/5: ground
• 6(CAN-H)/14(CAN-L): ISO-11898/ISO-15765 CAN
• 7(K-Line)/15(L-Line): ISO-9141/ISO-14230 K/L-line (bidirectional lines)
• 16: power

Extra features:

Thanks to the built-in microprocessor  DiaLink adapter can be used not only as a diagnostic adapter for SMS-Diagnostics 3 software or as a J2534 compatible device but also can be configured for use in the following modes

• K-Line — allows to work with any software designed for a usual USB-K-Line-adapter;
• D-CAN — allows to work with BMW diagnostic software via EDIABAS (STD:OBD driver) supporting K-bus and CAN-bus;
• ELM327 — allows to work with the software designed for ELM327 chip (this mode will be added soon and will be included in the software update).
• CANHacker — allows you to work with programs designed to work on Lawicel-compatible Protocol (e.g., CANHacker)
