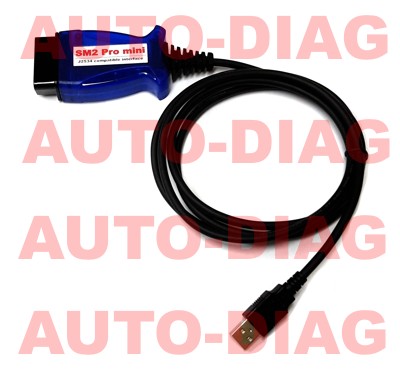

SM2P-Mini Scanmatik J2534 PassThru интерфейс

Interfejs SM2P-Mini  PassThru J2534  12/24V PCMFlash i inne...

kompatybilny z interfejsem Scanamtik 2 Pro (bez multiplexera)

ISO-9141/ISO-14230 (K-Line)

ISO-11898/ISO-15765 (CAN)

Linia L do sterowania zasilaniem ECU (bench mode)

zasilanie: 12V-24V

maksymalna przepustowość magistrali CAN, 8x szybszy niż OpenPort !

współpracuje ze wszystkimi modułami PCMFlash po K line i CAN

także z modułami 53, 71 i 77

współpracuje z większością programów do diagnostyki i fleszowania sterowników

.

.

SM2P-Mini application:

• J2534 compatible adapter
• Compatible with interface Scanmatik 2 Pro
• Interface can be used for ECU reprogramming with PCMFlash, CombiLoader, BitBox, MD Flasher or for diagnostics with any third-party tools

Advantages:

• Capable of working with trucks (24V car network)
• Better compatibility with J2534 requirements (*1)
• High operational speed (*2)
• Good value for money

*1 in comparison with OpenPort software.

*2 the exchange speed of ISO-11898 (CAN) reaches the max capacity of the bus. It is up to 8 times faster than  OpenPort operational speed.

Supported protocols:

• ISO-9141/ISO-14230 (K-Line)
• ISO-11898/ISO-15765 (CAN)

Power:

• 12V car network
• 24V truck network
• Powered from a USB port of a PC and car

The full operational range of power voltage is from 8V to 35V which guarantees fail-free operation in any working conditions including trucks.

PC (laptop) connection:

• USB cable A

Diagnostic connector pins:

• 1: GPT1
• 2: GPT2
• 4/5: ground
• 6 (CAN-H) and 14(CAN-L): ISO-11898/ISO-15765 CAN
• 7 (K-Line)
• 15 (L-Line) for control ECU power (bench mode)
• 16: power
