Set of 5-roller trolleys with accessories for profile 80 × 80

Our trolleys are delivered to manufacturers of gates, construction markets and retail customers. We focused on quality, soldered workmanship and durability of trolleys, so when choosing our products you can be sure of receiving the highest quality goods with a guarantee of long-term trouble-free operation of the sliding gate.

WDB is a POLAND brand of accessories for gates and fences. We are a leading supplier of trucks on the Polish market. Our products are characterized by high precision, durability and long service life.

Advantages of WDB products:

• high quality of materials used
• production with attention to every detail
• wide range
• constant availability and reproducibility of goods
• competitive prices

By choosing WDB products, you can be sure of receiving the highest quality product!

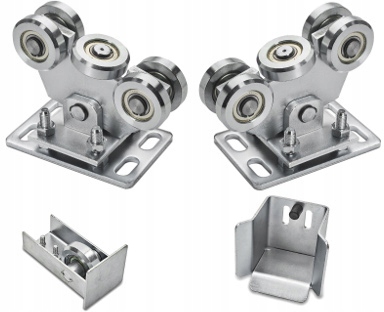

The set consists of:

• 2 pieces of trolleys,
• overrun roller with end,
• inrun sockets,
• information about the correct spacing of trolleys during assembly.

A set of trolleys with accessories for the sliding gate Polish brand WDB is a set of precisely matched elements, made of highest quality materials, with increased resistance to abrasion and mechanical damage, guaranteeing long-term and trouble-free operation of the gate.

Each steel part has been subjected to full galvanization, thanks to which the product is entirely resistant to extreme weather conditions such as high and low temperatures, rain or snow.

The set of trolleys with accessories consists of:

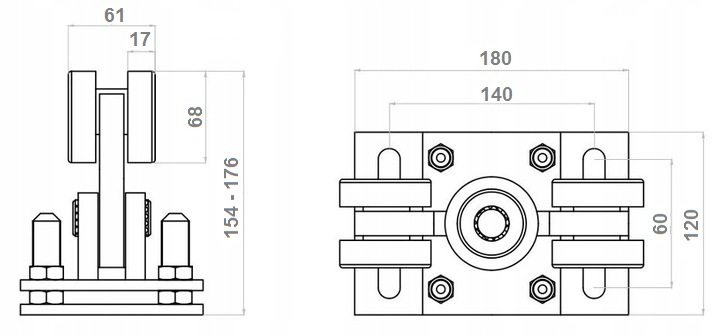

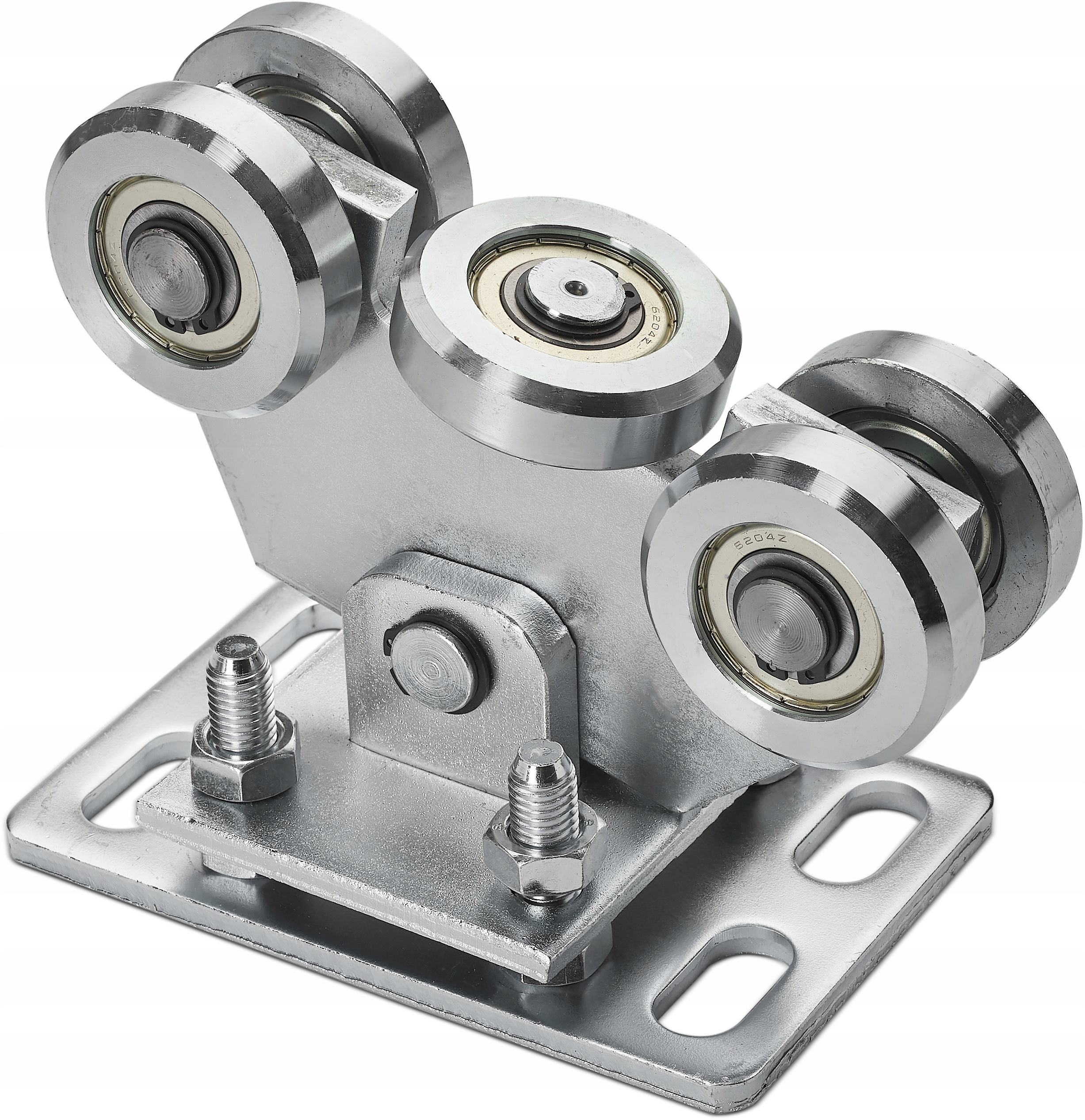

5-roller trolley for rail 80 x 80 - steel rollers - 2 pieces

characteristics:

• equipped with bearings 6204Z ERI-3 - they produce much less noise and are characterized by greater strength than standard bearings
• has an undercut vertical plate - this facilitates access to mounting screws and simplifies the adjustment of the trolley, making the installation and setting of the entire structure more affordable
• trolley can be adjusted vertically and horizontally, allows for ideal adjustment of the trolley to the sliding gate
• trolley rollers are made of material with increased hardness and reduced abrasion, thanks to which they are more durable and have a long service life

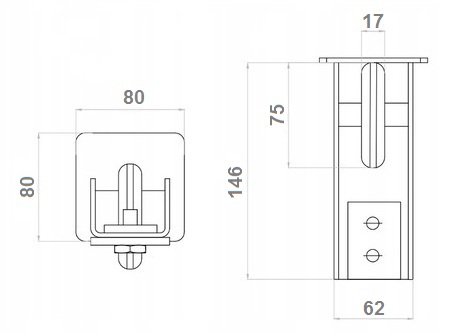

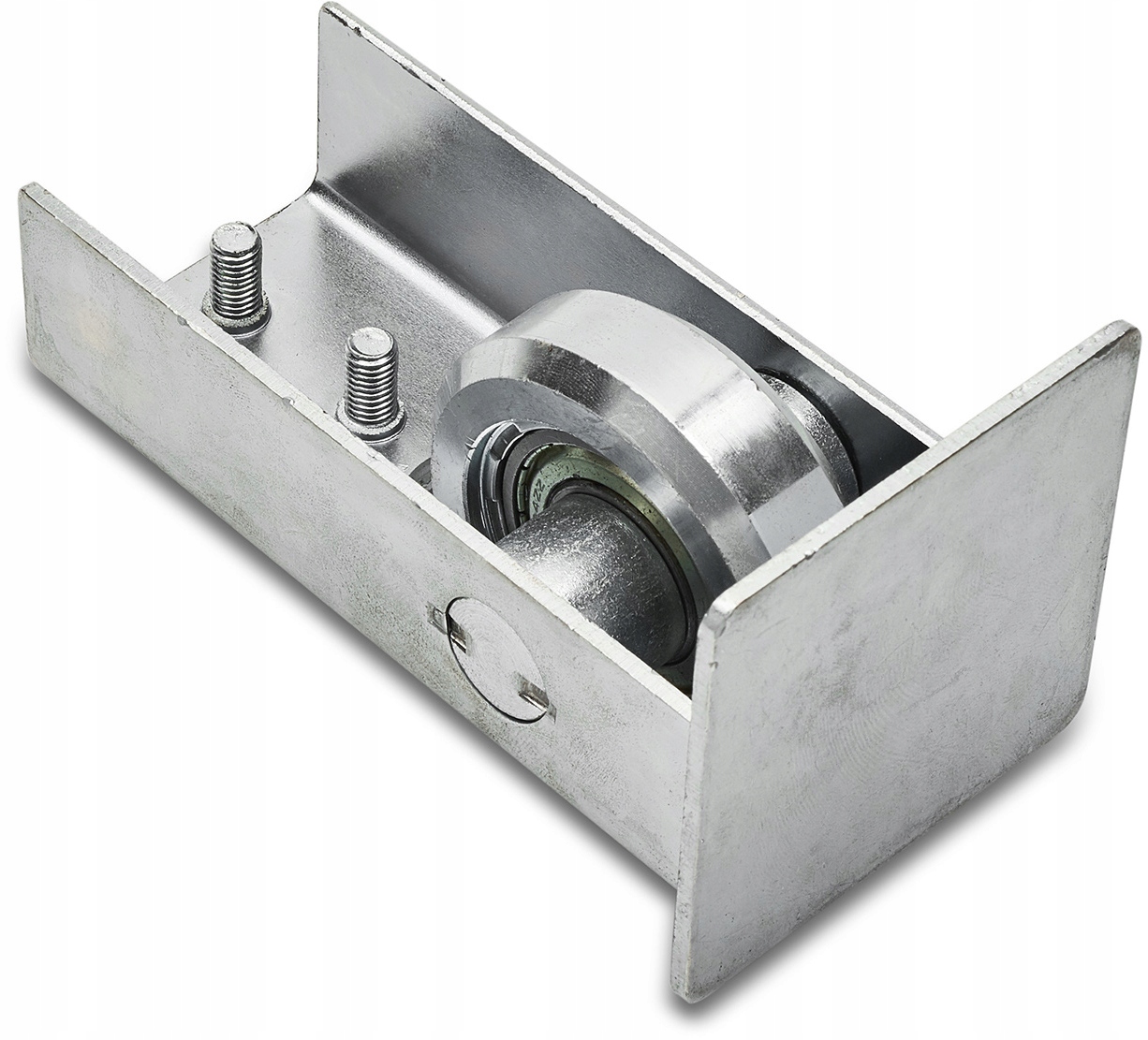

Overrun roller for rail 80 x 80 mm with end

Characteristic:

• roll made of high quality steel, stacked - has high abrasion resistance and is characterized by very low rolling resistance
• facilitates the introduction of the gate into the socket
• protects the rail against the deposition of impurities in it
• element with mounting on two screws for gate guide

Specification:

• Material: high-quality heavy-duty steel
• all galvanized product
• assembly: screwing to the gate guide with two fixing screws
• solid element guaranteeing high work culture

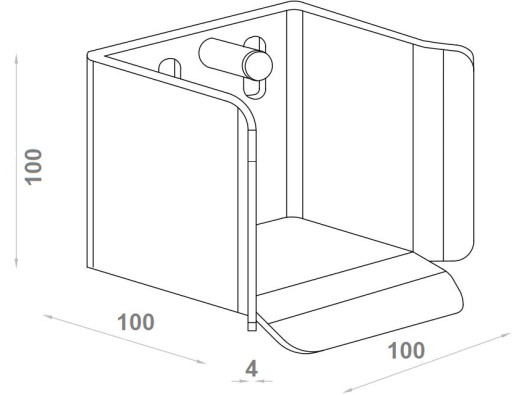

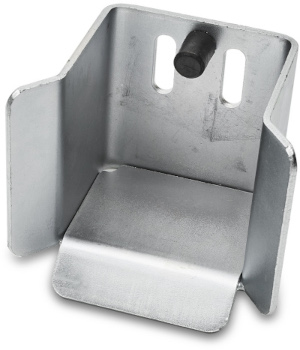

Overrun socket for rail 80 x 80

Characteristic:

• has a rubber fender, absorbing the energy of the rail-socket contact
• special holes in the end of prevent the accumulation of water
• high quality galvanized steel protects the element from corrosion
• appropriately profiled handle walls ensure smooth embedding in the socket

Specification:

• Material: high quality steel + flexible and durable rubber
• all galvanized product
• assembly: the socket has two installation holes
• precisely made element with high abrasion resistance, effectively absorbing even strong impact forces

Accessories for gates of the Polish brand WDB are the highest quality products!

All elements have been made with attention to every detail - the appropriate match of the rail to the rollers and accessories in the entire construction of the sliding gate determining the high working culture for years.

Trolleys and accessories for gates of the Polish brand WDB are characterized by perfect fit to dedicated guide rails, and thanks to the possibility of adjustment allow for even distribution of load, which has a significant impact on the smooth guide of the gate and long life of the mechanism.

How to choose the right size trolley for a sliding gate?

The size of the trolley 60 / 70 / 80 determines the width of the guide rail on which it should move. This is the width of the rail measured together with the side walls.

E.g. if the total width of the rail (i.e. the width of both side walls + the width of the plane to drive the trolley) is 60 mm, the trolley in size 60 will be dedicated.

The subject of this auction is a set that fits a rail with dimensions of 80 mm x 80 mm and a wall thickness of 5 mm.
