Miernik sygnału satelitarnego V8 Finder2 S/S2/S2X

GTMEDIA V8 Finder2 is a DVB-S/S2 and MPEG-2/4 H.264(8 Bit) compliant handheld satellite meter. With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service to residential homes or multi-dwelling units.

Key Features

● 3.5 Inch High Definition LCD Screen,

● Fully DVB-S2X/S2/S, MPEG-2/MPEG-4 compliant

● Support H.264 (8 Bit) Hardware decoding

● Digital measuring device for signal strength and quality.Supports presetting all satellite information

● Support Loop Search

● Spectrum analyzer

● Supports scan of Auto, Blind, Manual or NIT

● Sound for Locking Signal

● Auto Calculate Angle of AZ,EL

● Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone

● Speaker Integrated

● Support both AV out and AV in

● Support both HD-MI out

● Support real-time power display, with low power reminder

● Supports Youtube for USB wifi 2.4G

● LNB short protect

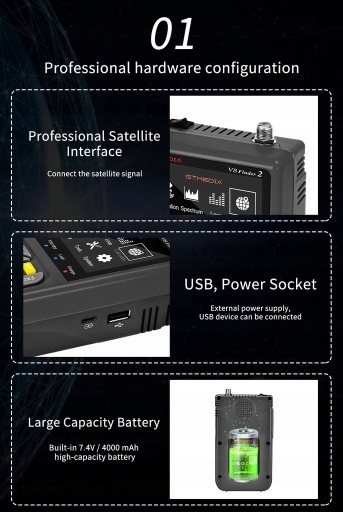

● 7.4V/4000mAh Li-ion Battery Included

● Support Type-C charging interface, support multi-protocol fast charging, max 18W

● Support TypeC reverse charging

● Software upgrade via USB port

● Easy to carry

Specifications

TRANSMISSION STANDARDS

DVB-S2X/S2/S,MPEG-2,MPEG-4,H.264

Supports softcam: Fastest BISS auto roll, PowerVu auto roll

Support CCM,VCM, ACM, multi-stream, T2-MI, Single/Multi-PLP

SATELLITE INPUT/DEMODULATION

Connector Type F Type

Input Frequency 950 to 2150 MHz

Signal Input Level ‐65 to ‐25 dBm

Band Switch Control 22KHz

LNB Supply 13V/18V, Max 350mA

Demodulation Type "DVB-S2 QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,

DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK"

Symbol Rate 2<45Mband(SCPC/MCPC)

LCD FEATURES

LCD Type 3.5”high-resolution digital display LCD

Number of Dots 320 RGB*240

Active area (W*H) 70.08(H)*52.56(V)MM

AV output interface

Connector Type 3.5 mm jack

Video Output CVBS

Audio Output Stereo Audio L/R output

HD-MI output connecter

Format HD-MI 1.3a

Resolution Optional 480i,480P 576i,576P,720P,1080i,1080P

AV input interface

Connector Type 3.5 mm jack

Video Input CVBS

Audio Input Stereo Audio L/R input

AUDIO/VIDEO PROCESSING

Video decompression MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@l5 HD resolution, H.264 MP&HP@L4, HW JPEG decoder

Resolving rate PAL-25 frame@720*576, NTSC -30 frame@720*480

Singnal compatibility Support conversion for different video formats

Video Format 4:3, 16:9, By Pan & Scan and Letter Box conversion

Audio Decompression MPEG-1 Layer I/II, MPEG-2 Layer I/II

Audio Output Mode Stereo, Mono, R/L

DATA SERVICE PORT

Conector USB

Data Protocol USB 2.0 interface

File Management System NTFS, FAT32, FAT16

File Format "Media:TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp

Audio: wma,mp3

Photo: jpg,jpeg,bmp,img"

PVR Option Support software upgrade and PVR ，Supports external HDD via USB, power wanted if necessary

WIFI Option Support networking via USB WIFI

POWER SUPPLY

Li-Lon Battery 7.4V/4000mAh(The machine behind labeling shall prevail)

Battery power "Build-in Lithium battery find satellite around 4 hours

Battery play time(AV input): about 6 hours"

Adapter (Optional) Support fast charge, MAX 20W

Power Consumption Rated 8W (No external equipment)

PHYSICAL CHARACERSTICS

Product Dimension Size(W*D*H) 95*155*45 MM（L*W*H）

Product Net Weight 0.45kg

Packing box size(W*D*H) 204*160*57(mm)

Package weight (Standard) 0.6kg

Carton Qty&Weight 345*295*435MM (20 pcs/Carton）, 13KG

Accessories "Digital satellite meter, User Manual, Warranty Card, Adapters*1

Optional accessories: charging head*1, backpack*1"

Temperature Operation 0～ 45℃; Storage -10~ 60℃

Humidity 20~90%, non-condensed
