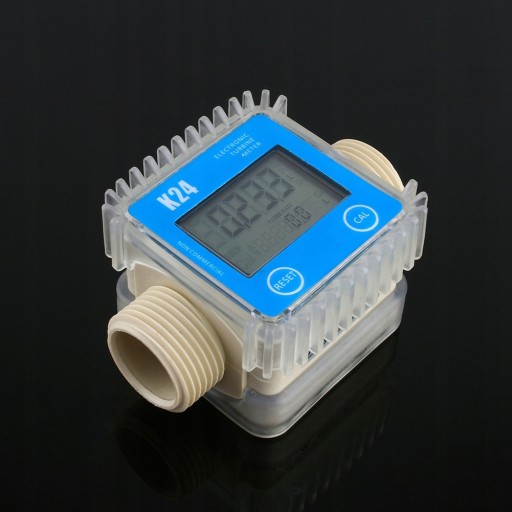

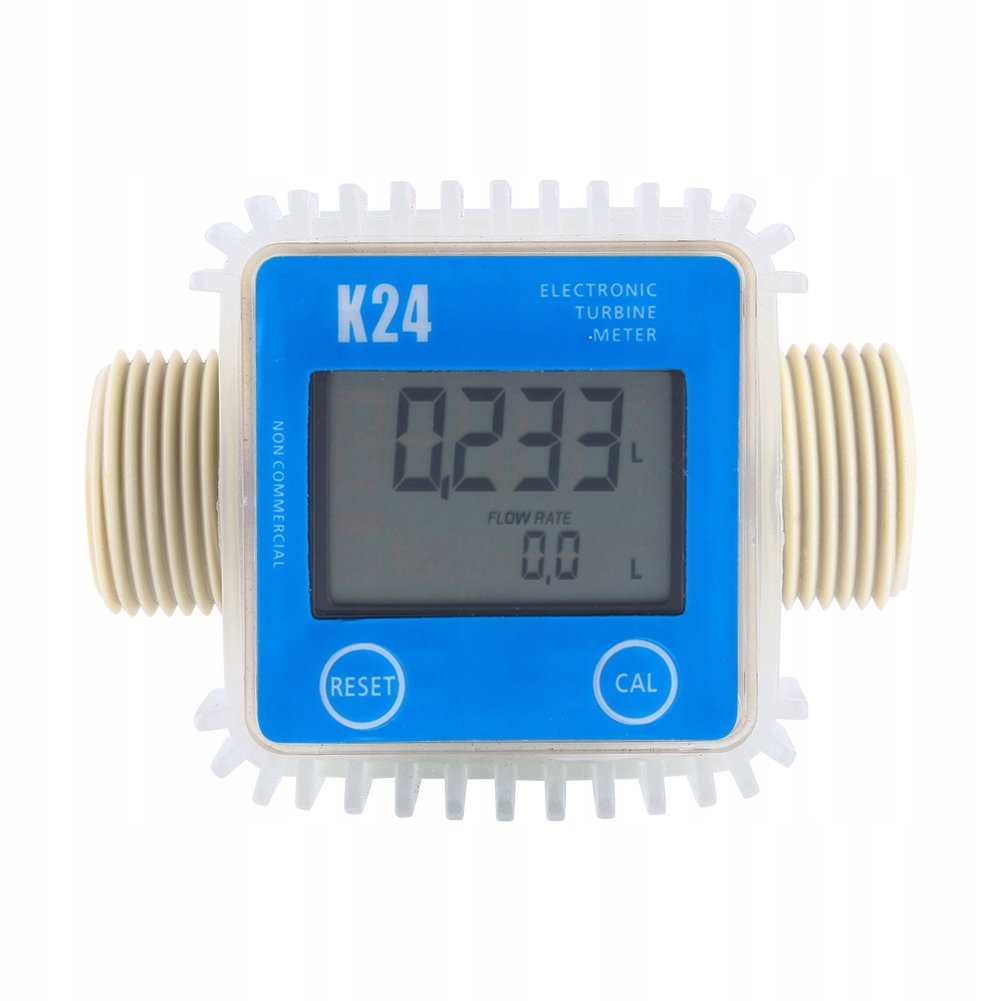

K24 LCD Turbine digital flow meter

Description:

Modular design control panel, fully functional, simple structure, convenient operation. It can be widely used in petroleum, chemical, pharmaceutical, transportation, food industrial and commercial.

Technical data:

Model: K24

Media: methanol diesel fuel chemical kerosene urea liquid water

Importers: 1 inch male thread

Length: 103MM

Measurement accuracy: ± 1%

Repeatability: ± 0.5%

Maximum working pressure: 5BAR

Working voltage: 2.3-3.3V

Standby time: 2 years

Flow range: 10-90L / MIN

Single number: 0.00-9999.9

Total Cumulative Number: 0.00-999999.9

Unit: L / L, gal / GAL, pint / PTS, quart / QTS

Single measurement cleared: RESET

Setting the measurement units:

In standby mode, or increase the amount of the current display state

Press the CAL RESET button for 5 seconds

Enter unit conversion settings, press the RESET button

Then LTR-GAL-PT-QT-LTR select the measurement unit

While the cumulative filling volume displayed in the current unit of measure for conversion after

Press the MENU button for 3 seconds to exit the unit conversion setting.

Note:

This product requires 2 AAA batteries, more convenient to use, this product comes with 2 removable AAA batteries

Low battery tips

When the battery voltage is 2.2V to 2.4V, display LBat to remind user to replace the battery.

Package includes:

1 x K24 Turbine Digital Diesel Fuel Flow Meter
