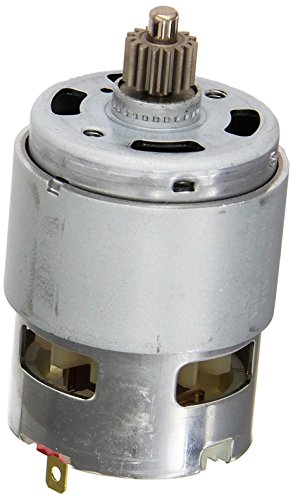

Двигатель Hitachi для DS14DVF3, DS14DFL HiKOKI 324483

Hitachi - silnik - nowy oryginalny.

Zastosowanie : wkrętarka akumulatorowa DS14DVF3, DS14DFL

Pozycja na schemacie nr 25.

Nr katalogowy : 324-483

Lista części od DS14DVF3

1 324-503 SPECIAL SCREW (LEFT HAND) (B) M6X23 1

2 322-167 DRILL CHUCK 10VLRF-N (W/O CHUCK WRENCH) 1

3 324-490 GEAR BOX ASS'Y 1

4 324-114 CLUTCH DIAL 1

5 324-108 CLICK SPRING 1

6 324-109 NUT 1

7 324-110 SPRING 1

8 324-347 WASHER (D) 1

9 324-491 FRONT CASE 1

10 306-936 STEEL BALL D5 6

11 324-111 RING GEAR 1

12 324-348 PLANET GEAR (C) SET (3 PCS.) 3

13 324-349 WASHER (A) 1

14 324-501 REAR CASE 1

15 324-357 SCREW SET D3X12 (4 PCS.) 4

16 324-115 SHIFT ARM 1

17 324-351 SLIDE RING GEAR 1

18 324-112 PINION (C) 1

19 324-352 PLANET GEAR (B) SET (3 PCS.) 3

20 324-492 PINION (B) 1

21 324-494 PLANET GEAR (A) SET (3 PCS.) 3

22 324-493 FIRST RING GEAR 1

23 324-355 WASHER (B) 1

24 324-495 MOTOR SPACER 1

25 324-483 MOTOR 1

26 324-485 SPACER 1

27 313-687 TAPPING SCREW (W/FLANGE) D3X16 (BLACK) 8

28 NAME PLATE 1

29 317-333 MACHINE SCREW (W/SP. WASHER) M4X6 2

30 324-482 HOUSING (A).(B) SET 1

31 324-484 INTERNAL WIRE (BLACK) 90L 1

32 324-499 INTERNAL WIRE (RED) 140L 1

33 324-498 DC-SPEED CONTROL SWITCH 1

34 324-117 PUSHING BUTTON 1

35 323-229 FERRITE CORE 1

36 324-116 SHIFT KNOB 1

37 HITACHI LABEL 1

38 320-287 HOOK ASS'Y 1

39 320-288 V-LOCK NUT M5 1

40 306-952 STRAP (BLACK) 1

41 315-141 TERMINAL SUPPORT (A) 1

42 319-926 HOOK SPRING 1

43 320-881 SPECIAL SCREW (A) M5 1

44 322-633 BATTERY EB 1414S (W/ENGLISH N.P.) 2

44 324-367 BATTERY EB 1414S (W/ENGLISH N.P.) 2
