Механический шатун Hilti для молота TE 3000

Hilti korbowód mechaniczny do młota udarowego TE 3000 - nowy, oryginalny

Ramię korbowodu do elektrycznego młota wyburzeniowego

Kod producenta : 2062819

Pozycja na schemacie: nr 37

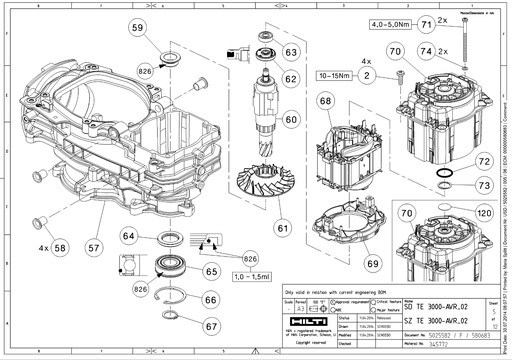

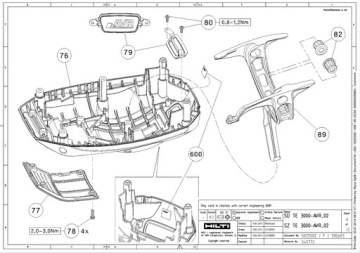

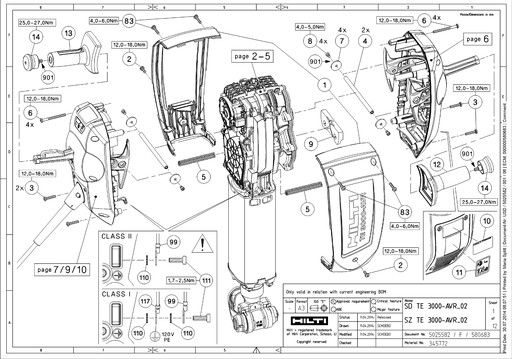

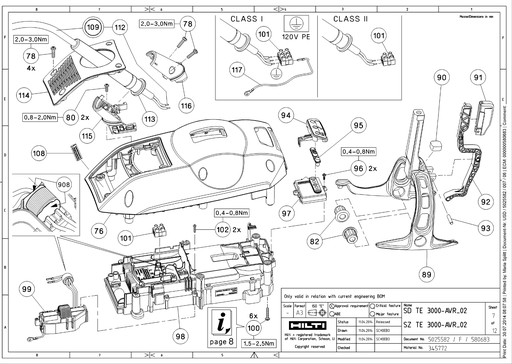

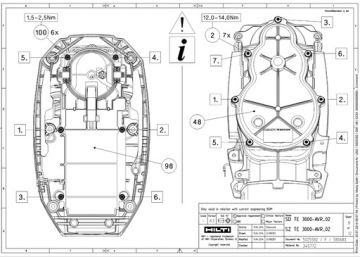

Lista części

1 429781 2,000 PC Casing red packed

2 209296 19,000 PC Taptite screw 2000 SN40 6X18ST - gal ZnFe5F

+Deltacoll schw

3 278673 4,000 PC Taptite screw II SN40 6X30A2-70 - gal ZnFe5F

+Deltacoll s

4 2049658 2,000 PC Axle 2

5 209093 2,000 PC Compression spring 2x12,5x105

6 209298 8,000 PC Taptite screw 2000 SN40 6X709.8 - gal ZnFe5F

+Deltacoll sch

7 2061054 4,000 PC Washer 6,4x30x3

8 241420 4,000 PC Torx-soc cap screw M6X10 mc8.8 - A2KSpedcaps

80

9 345820 1,000 PC Adapter piece

10 2131326 2,000 PC Rating plate TE 3000-AVR 230V ZA

11 209233 1,000 PC Adhesive label 108 dB

12 209123 1,000 PC Grip right

13 209122 1,000 PC Grip left

14 209141 2,000 PC End brace

15 345548 4,000 PC Threaded stud M10 x 344

16 2035596 4,000 PC Nut+washer kit

17 2020124 4,000 PC Retaining washer Nordlock NL121.7182 - FLZN

18 209085 1,000 PC O-ring 134,5x4,5NBR 70 schwarz

19 209096 1,000 PC Housing end cap

20 2029152 1,000 PC Chuck TE 3000-AVR packed

21 345581 2,000 PC Absorber ring

22 2034043 1,000 PC Latch clamp 2 TE 3000-AVR finpt

23 345736 1,000 PC Eccentric pin

24 345604 1,000 PC Scraper ring

25 345730 1,000 PC Stop right

26 345729 1,000 PC Stop left

27 26359 2,000 PC Pan head screw M6X16 mc8.8 - brüniert-

Spedcaps 85

28 345602 2,000 PC Insert St - 6kt

29 2046998 1,000 PC Absorber

30 2035597 1,000 PC Servicing set TE 3000-AVR

31 2066353 1,000 PC Guide tube TE 3000-AVR packed

32 414417 1,000 PC Ram TE 3000 packed

33 2046997 1,000 PC Washer B

34 2085204 1,000 PC Stop packed

35 2041350 1,000 PC Striker piston TE 3000-AVR packed

36 429785 1,000 PC Guide ring TE 3000 packed

37 2062819 1,000 PC Conrod mach

38 345580 1,000 PC Drive piston finpt

39 208751 1,000 PC Clevis pin

40 265886 1,000 PC O-ring 49X2NBR 50

41 2047242 1,000 PC Absorber

42 414412 1,000 PC Eccentric TE 3000 packed

43 423081 1,000 PC Ball bearing set

44 72421 1,000 PC Circlip 35X1.5FED-ST -

45 2085205 1,000 PC Seal holder packed

46 209094 2,000 PC Spring guide AVR

47 414414 1,000 PC Toothed gear z=62 TE 3000 set

48 414415 1,000 PC Bearing cover TE 3000 assy packed

49 209180 2,000 PC Centering bushing

50 209084 1,000 PC Seal

51 414413 1,000 PC Gear spindle TE 3000 packed

52 208655 1,000 PC Grooved ball bear. 15X42X13-2Z6302-2Z

53 209115 2,000 PC Absorber

54 209181 1,000 PC Holder

57 414407 1,000 PC Gear housing TE 3000 packed

58 209092 4,000 PC Bushing 10x12x18x17

59 209049 1,000 PC Sleeve

60 414409 1,000 PC Rotor TE 3000 packed

61 208681 1,000 PC Cooling fan VZ=17

62 341146 1,000 PC Insulating washer

63 366158 1,000 PC Grooved ball bear. 8X22X7-2RS608-2RS

64 208771 1,000 PC Rotary shaft seal BAUMX27-25x40x5

65 208772 1,000 PC Ball bearing 20x47x146204-2RS

66 76460 1,000 PC Circlip J47

67 59665 1,000 PC Circlip 20X1.2FED-ST - PHOSPHAT.&GEÖLT

68 414411 1,000 PC Stator TE 3000 packed

69 209051 1,000 PC Air deflector

70 209061 1,000 PC Motor housing

71 275057 2,000 PC RF screw SN165 5X75/3512.9 - brüniert

72 206145 1,000 PC O-ring 21.3X2.4NBR 70 schwarz

73 234227 1,000 PC Compression spring 21,65x5,4

74 268225 2,000 PC Washer 5.3140 HV - A2K

76 429782 2,000 PC Casing black packed

77 209186 1,000 PC Lid right

78 209299 12,000 PC Torx-soc re scr SN65 5X189.8 - FeZn5F

+2xDeltacoll schwa

79 211509 1,000 PC Lid AVR printed

80 278312 4,000 PC Torx-soc re scr SN65 4X12A2-70

82 209150 4,000 PC Bushing 10x20x26 95 Shore

83 425436 4,000 PC Torx-soc re scr SN65 6X309.8 - FeZn5F

+2xDeltacoll schwa

89 429783 2,000 PC Bow packed

90 345549 4,000 PC Spring Cellasto

91 209257 1,000 PC Cover cap

92 209275 1,000 PC Setting lever prea

93 275589 1,000 PC Dowel pin 5m6X26ST - A2K

94 211508 1,000 PC Cover printed

95 209127 1,000 PC Lightguide

96 366522 2,000 PC Torx-soc pl scr 45 3x12 T10 black

97 39096 1,000 PC Electronics Mini MMI packed

98 414463 1,000 PC Electronics TE 3000-AVR packed

99 414464 1,000 PC Line filter packed

100 330107 6,000 PC Torx-soc re scr 4X24 T20 blackST - gal ZnFe5F

+2Xdeltacoll sc

101 330332 1,000 PC Terminal block 500/2 35 DS

102 429315 2,000 PC Ejot screw 3x14 T10 zinced

108 302093 1,000 PC Warning sign Kondensatoren

109 2112080 1,000 PC Supply cord ZA+IND 2x1,5 4m assy

110 51458 1,000 PC Serrated lock washer A4,3

111 326298 1,000 PC Torx-soc tapt scr M4X12 T20 blackESt-ZnFe5F

+2x Deltacoll schwar

112 72417 2,000 PC Conductor end sleeve

113 345621 1,000 PC Protective sleeve

114 209189 1,000 PC Lid left

115 345645 1,000 PC Cable holder d=10

116 345644 1,000 PC Cable holder d=10

120 2056655 1,000 PC Adhesive foil TE 3000-AVR

826 280102 1,000 PC Grease PETAMO GHY 133 N 400G

830 420371 1,000 PC Grease Thermopl. ALN 250 EP plus

901 3994 1,000 PC Adhesive LOCTITE 243 50CCM

908 271295 1,000 PC Sealant electronics
