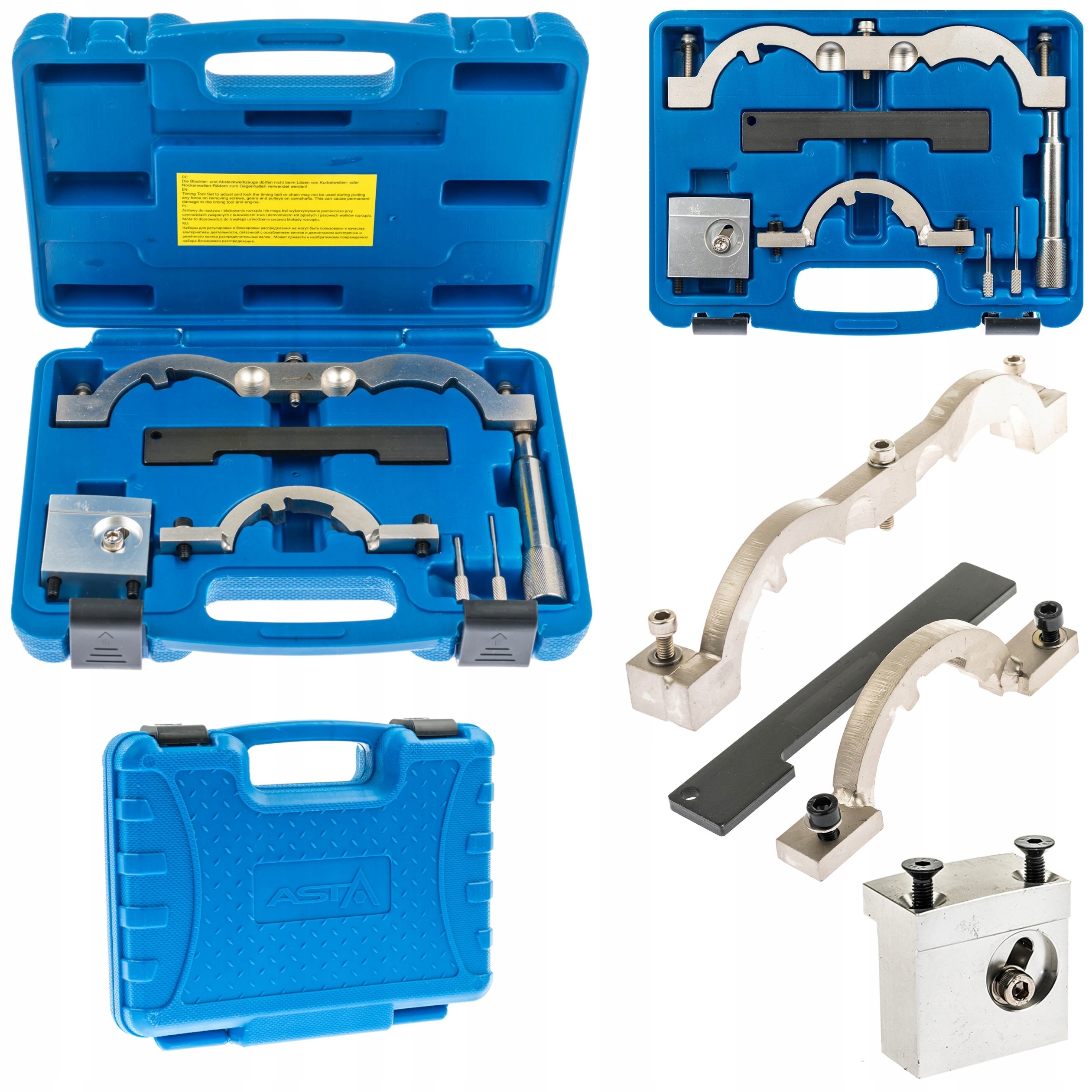

ПРИБОР ГРМ OPEL 1.0 1.2 1.4 12V 16V TURBO

BLOKADA ROZRZĄDU OPEL 1.0 1.2 1.4 ASTRA CORSA

KOD PRODUKTU: B.8857

ZAMIENNIKI:

• ASTA A-VOTT
• BGS 857 B.8857
• 05082022 C.36308 36308
• HP 904 022 50 90402250
• LASER 5902
• KB GLOBAL KB01625 1625
• QUATROS QS10750 10750
• SATRA S-BOP1

OPIS PRODUKTU:

• Specjalistyczny zestaw umożliwiający blokadę rozrządu przy wymianie paska lub łańcucha napędzającego w silnikach samochodów:
• Adam, Ampera, Astra-J, Aveo, Corsa-D, Meriva-B, Mokka, Zafira-C Tourer z silnikami o pojemnościach 1.0/1.2/1.4.

MODELE:

• Opel Adam, Astra J, Agila-B, Cascada, Combo, Corsa D, Meriva B, Mokka, Zafira Tourer
• Chevrolet Cruze

ZESTAW ZAWIERA:

• do blokowania wału korbowego i wałków rozrządu
• do regulacji czujnika wałka rozrządu
• do mocowania urządzeń zaciskowych
• przy zmianie łańcucha rozrządu lub naprawie silnika

MODEL / MOC SILNIKA kW (DIN KM) Obr./min. /  KODY SILNIKÓW / ROK PRODUKCJI

• Corsa-D 1.0 ecoFLEX 48 (65) 5300 A10XEP 2009-2014
• Corsa-D 1.2 51 (70) 5600 A12XEL 2009-2014
• Corsa-D 1.2 ecoFLEX 51 (70) 5600 A12XEL 2009-2014
• Corsa-D 1.2 63 (85) 5600 A12XER 2009-2014
• Corsa-D 1.2 ecoFLEX 63 (85) 5600 A12XER 2009-2014
• Corsa-D 1.2 LPG ecoFLEX 61 (83) 5600 A12XER 2011-2014
• Corsa-D 1.4 Turbo 88 (120) 4800 A14NEL 2012-2014
• Corsa-D 1.4 64 (87) 6000 A14XEL 2009-2014
• Corsa-D 1.4 ecoFLEX 64 (87) 6000 A14XEL 2012-2014
• Corsa-D 1.4 74 (100) 6000 A14XER 2009-2014
• Corsa-D 1.4 ecoFLEX 74 (100) 6000 A14XER 2012-2014
• Adam 1.4 ecoFLEX 64 (87) 6000 L2Z/A14XEL 2012-2015
• Adam 1.4 64 (87) 6000 L2Z/A14XEL 2012-2015
• Adam 1.4 LPG 64 (87) 5200 L2Z/A14XEL 2013-2015
• Adam Rocks 1.4 64 (87) 6000 L2Z/A14XEL 2014-2015
• Adam Rocks 1.4 ecoFLEX 64 (87) 6000 L2Z/A14XEL 2014-2015
• Corsa-E 1.2 51 (70) 5600 LDC/B12XEL 2015-2017
• Astra-J 1.4 16V 64 (87) 6000 LDD/A14XEL 2009-2015
• Astra-J 1.4 16V ecoFLEX 64 (87) 6000 LDD/A14XEL 2009-2015
• Astra-J 1.4 16V 74 (101) 6000 LDD/A14XER 2009-2015
• Astra-J 1.4 16V ecoFLEX 74 (101) 6000 LDD/A14XER 2009-2015
• Meriva-B 1.4 16V 74 (101) 6000 LDD/A14XER 2010-2015
• Adam 1.4 ecoFLEX 74 (101) 6000 LDD/A14XER 2012-2015
• Adam 1.4 74 (101) 6000 LDD/A14XER 2012-2015
• Corsa-E 1.4 55 (75) 6000 LDD/B14XEJ 2015-2017
• Adam 1.4 64 (87) 6000 LDD/B14XEL 2014-2017
• Adam 1.4 ecoFLEX 64 (87) 6000 LDD/B14XEL 2014-2017
• Corsa-E 1.4 66 (90) 6000 LDD/B14XEL 2015-2017
• Adam 1.4 LPG 64 (87) 6000 LDD/B14XEL 2014-2017
• Adam Rocks 1.4 ecoFLEX 64 (87) 6000 LDD/B14XEL 2014-2017
• Adam Rocks 1.4 64 (87) 6000 LDD/B14XEL 2014-2017
• Meriva-B 1.4 16V 74 (101) 6000 LDD/B14XER 2013-2017
• Meriva-B 1.4 16V ecoFLEX 74 (101) 6000 LDD/B14XER 2013-2017
• Adam 1.4 74 (101) 6000 LDD/B14XER 2014-2017
• Adam 1.4 ecoFLEX 74 (101) 6000 LDD/B14XER 2014-2017
• Adam Rocks 1.4 74 (101) 6000 LDD/B14XER 2014-2017
• Adam Rocks 1.4 ecoFLEX 74 (101) 6000 LDD/B14XER 2014-2017
• Astra-J 1.4 16V 74 (101) 6000 LDD/B14XER 2015-2017
• Astra-J 1.4 16V ecoFLEX 74 (101) 6000 LDD/B14XER 2015-2017
• GTC 1.4 16V 74 (101) 6000 LDD/B14XER 2015-2017
• GTC 1.4 16V ecoFLEX 74 (101) 6000 LDD/B14XER 2015-2017
• Meriva-B 1.4 16V ecoFLEX 88 (120) 4800 LUH/A14NEL 2010-2015
• Meriva-B 1.4 Turbo LPG ecoFLEX 88 (120) 4800 LUH/A14NEL 2011-2015
• Meriva-B 1.4 Turbo LPG ecoFLEX 88 (120) 4200 LUH/B14NEL 2013-2017
• Meriva-B 1.4 Turbo 88 (120) 4200 LUH/B14NEL 2013-2017
• Meriva-B 1.4 Turbo ecoFLEX 88 (120) 4200 LUH/B14NEL 2013-2017
• Zafira-C Tourer 1.4 Turbo 88 (120) 4200 LUJ/A14NEL 2011-2015
• Zafira-C Tourer 1.4 Turbo ecoFLEX 88 (120) 4200 LUJ/A14NEL 2011-2015
• Astra-J 1.4 Turbo 88 (120) 4200 LUJ/A14NEL 2011-2015
• Astra-J 1.4 Turbo ecoFLEX 88 (120) 4200 LUJ/A14NEL 2011-2015
• Cascada 1.4 Turbo 88 (120) 4900 LUJ/A14NEL 2013-2015
• Astra-J 1.4 Turbo 103 (140) 4900 LUJ/A14NET 2009-2015
• Meriva-B 1.4 Turbo 103 (140) 4900 LUJ/A14NET 2010-2015
• Insignia 1.4 Turbo 103 (140) 4900 LUJ/A14NET 2011-2015
• Zafira-C Tourer 1.4 Turbo 103 (140) 4900 LUJ/A14NET 2011-2015
• Zafira-C Tourer 1.4 Turbo ecoFLEX 103 (140) 4900 LUJ/A14NET 2011-2015
• Mokka 1.4 Turbo 103 (140) 4900 LUJ/A14NET 2012-2015
• Astra-J 1.4 Turbo ecoFLEX 103 (140) 4900 LUJ/A14NET 2011-2015
• Astra-J 1.4 Turbo LPG ecoFLEX 103 (140) 4900 LUJ/A14NET 2011-2015
• Insignia 1.4 Turbo ecoFLEX 103 (140) 4900 LUJ/A14NET 2011-2015
• Zafira-C Tourer 1.4 Turbo LPG ecoFLEX 103 (140) 4900 LUJ/A14NET 2011-2015
• Cascada 1.4 Turbo 103 (140) 4900 LUJ/A14NET 2013-2015
• Insignia 1.4 Turbo LPG ecoFLEX 103 (140) 4900 LUJ/A14NET 2011-2015
• Mokka 1.4 Turbo ecoFLEX 103 (140) 4900 LUJ/A14NET 2012-2015
• Adam 1.4 S 110 (150) 4900 LUJ/B14NEH 2014-2017
• Corsa-E 1.4 Turbo 74 (101) 3500 LUJ/B14NEH 2014-2017
• Corsa-E 1.4 Turbo 74 (101) 3500 LUJ/B14NEJ 2014-2017
• Cascada 1.4 Turbo 88 (120) 4200 LUJ/B14NEL 2014-2017
• Zafira-C Tourer 1.4 Turbo 88 (120) 4200 LUJ/B14NEL 2014-2017
• Zafira-C Tourer 1.4 Turbo ecoFLEX 88 (120) 4200 LUJ/B14NEL 2014-2017
• Astra-J 1.4 Turbo 88 (120) 4200 LUJ/B14NEL 2015-2017
• Astra-J 1.4 Turbo ecoFLEX 88 (120) 4200 LUJ/B14NEL 2015-2017
• GTC 1.4 Turbo 88 (120) 4200 LUJ/B14NEL 2015-2017
• GTC 1.4 Turbo ecoFLEX 88 (120) 4200 LUJ/B14NEL 2015-2017
• Insignia 1.4 Turbo 103 (140) 0 LUJ/B14NET 2013-2017
• Insignia 1.4 Turbo LPG ecoFLEX 103 (140) 4900 LUJ/B14NET 2013-2017
• Insignia 1.4 Turbo ecoFLEX 103 (140) 0 LUJ/B14NET 2013-2017
• Meriva-B 1.4 Turbo 103 (140) 4900 LUJ/B14NET 2013-2017
• Meriva-B 1.4 Turbo ecoFLEX 103 (140) 4900 LUJ/B14NET 2013-2017
• Cascada 1.4 Turbo 103 (140) 4900 LUJ/B14NET 2014-2017
• Zafira-C Tourer 1.4 Turbo 103 (140) 4900 LUJ/B14NET 2014-2017
• Zafira-C Tourer 1.4 Turbo ecoFLEX 103 (140) 4900 LUJ/B14NET 2014-2017
• Zafira-C Tourer 1.4 Turbo LPG ecoFLEX 103 (140) 4900 LUJ/B14NET 2014-2017
• Mokka 1.4 LPG ecoFLEX 103 (140) 4900 LUJ/B14NET 2014-2016
• Mokka 1.4 Turbo 103 (140) 4900 LUJ/B14NET 2014-2016
• Mokka 1.4 Turbo ecoFLEX 103 (140) 4900 LUJ/B14NET 2014-2016
• Astra-J 1.4 Turbo ecoFLEX 103 (140) 4900 LUJ/B14NET 2015-2017
• Astra-J 1.4 Turbo 103 (140) 4900 LUJ/B14NET 2015-2017
• GTC 1.4 Turbo 103 (140) 4900 LUJ/B14NET 2015-2017
• GTC 1.4 Turbo ecoFLEX 103 (140) 4900 LUJ/B14NET 2015-2017
• Ampera 1.4 63 (86) 4800 LUU/A14XFL 2011-2015
• Adam 1.2 ecoFLEX 51 (70) 5600 LWD/A12XEL 2012-2015
• Adam 1.2 51 (70) 5600 LWD/A12XEL 2012-2015
• Adam Rocks 1.2 ecoFLEX 51 (70) 5600 LWD/A12XEL 2014-2015
• Adam Rocks 1.2 51 (70) 5600 LWD/A12XEL 2014-2015
• Adam 1.2 51 (70) 5600 LWD/B12XEL 2014-2017
• Adam 1.2 ecoFLEX 51 (70) 5600 LWD/B12XEL 2014-2017
• Adam Rocks 1.2 51 (70) 5600 LWD/B12XEL 2014-2017
• Adam Rocks 1.2 ecoFLEX 51 (70) 5600 LWD/B12XEL 2014-2017
• Corsa-B 1.0 40 (55) 5600 X10XE 1997-2000
• Corsa-B 1.2 48 (65) 5600 X12XE 1997-2000
• Astra-G 1.2 48 (65) 5600 X12XE 1998-2000
• Agila 1.0 43 (58) 5600 Z10XE 2000-2003
• Corsa-C 1.0 43 (58) 5600 Z10XE 2000-2007
• Corsa-C 1.0 44 (60) 5600 Z10XEP 2003-2007
• Agila 1.0 44 (60) 5600 Z10XEP 2003-2008
• Corsa-D 1.0 44 (60) 5600 Z10XEP 2006-2010
• Corsa-D 1.0 ecoFLEX 44 (60) 5600 Z10XEP 2009-2010
• Agila 1.2 55 (75) 5600 Z12XE 2000-2004
• Corsa-C 1.2 55 (75) 5600 Z12XE 2000-2007
• Astra-G 1.2 55 (75) 5600 Z12XE 2000-2004
• Corsa-C 1.2 55 (75) 5600 Z12XE 2001-2005
• Astra-G Classic II 1.2 55 (75) 5600 Z12XE 2003-2004
• Agila 1.2 59 (80) 5600 Z12XEP 2004-2008
• Corsa-C 1.2 59 (80) 5600 Z12XEP 2004-2007
• Combo-C 1.2 59 (80) 5600 Z12XEP 2004-2005
• Astra-H 1.2 59 (80) 5600 Z12XEP 2005-2011
• Corsa-D 1.2 59 (80) 5600 Z12XEP 2006-2010
• Corsa-C 1.2 Dualfuel 59 (80) 5600 Z12XEP 2005-2006
• Corsa-D 1.2 LPG ecoFLEX 55 (75) 5530 Z12XEP 2007-2010
• Corsa-C 1.4 66 (90) 6000 Z14XE 2000-2007
• Corsa-C 1.4 66 (90) 6000 Z14XE 2000-2005
• Astra-G Classic II 1.4 66 (90) 6000 Z14XE 2003-2004
• Astra-H 1.4 55 (75) 5200 Z14XEL 2004-2011
• Corsa-C 1.4 66 (90) 5600 Z14XEP 2003-2007
• Astra-H 1.4 66 (90) 5600 Z14XEP 2004-2011
• Astra-G 1.4 66 (90) 5600 Z14XEP 2003-2006
• Meriva-A 1.4 66 (90) 5600 Z14XEP 2004-2010
• Tigra-B 1.4 66 (90) 5600 Z14XEP 2004-2010
• Combo-C 1.4 66 (90) 5600 Z14XEP 2004-2012
• Corsa-D 1.4 66 (90) 5600 Z14XEP 2006-2010
• Astra-G Classic II 1.4 66 (90) 6000 Z14XEP 2003-2010
• Meriva-A 1.4 ecoFLEX 66 (90) 5600 Z14XEP 2009-2010
• Meriva-A 1.4 ecoFLEX LPG 64 (87) 5600 Z14XEP 2009-2010
• Astra-H 1.4 ecoFLEX 66 (90) 5600 Z14XEP 2009-2011
• Combo-C 1.4 ecoFLEX 66 (90) 5600 Z14XEP 2009-2012
• Corsa-D 1.4 LPG ecoFLEX 65 (89) 5590 Z14XEP 2007-2010

KODY SILNIKÓW:

• A10XEP A12XEL A12XER A14NEL A14NET A14XEL A14XER A14XFL LUH LUU LUJ L2Z LDD LWD

NUMERY NARZĘDZI SERWISOWYCH:

• KM952 / EM952 / 0991238310,
• EN49977100
• EN49977200
• KM953A
• KM955A2
• KM955A1
• EN49978

Vauxhall Opel Timing Tool Kit Set Astra-J, Corsa-D, 1.0 1.2 1.4 Turbo 2009-

Opel/Vauxhall Chevrolet 1.0 1.2 1.4 Turbo Engine Timing Tools Set from 2009 - on

Application:

Vauxhall / Opel : Adam 1.2 1.4 (2012- ), Ampera 1.4 (2011- ), Astra-J 1.4 (2009),N Cascada 1.4 (2013-), Corsa-D 1.0 1.2 1.4 (2009-),

Insignia 1.4 (2011-), Meriva-B 1.4 (2010-), Mokka 1.4 (2012-), Zafira-C Tourer  1.4 (2011-)

Chevrolet:

Aveo1.2 1.4 (2011-), Cruze 1.4 (2011-), Orlando 1.4 (2012-)

Item Description

Designed to lock the cam and crank shafts in position to allow the removal and replacement of the timing chain fitted to the Vauxhall/Opel twin Cam engines below.

Removal of the timing chain will require the removal of the sump.   Ensure the engine is at TDC No 1 cylinder. Ensure the chain tensioner is fully retracted and held in the retracted position using a suitable pin. Remove the crankshaft pulley using an appropriate pulley holding tool.

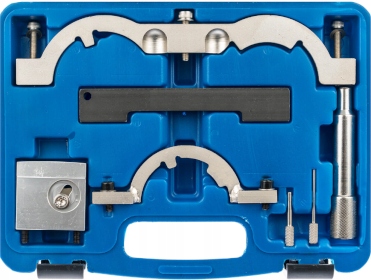

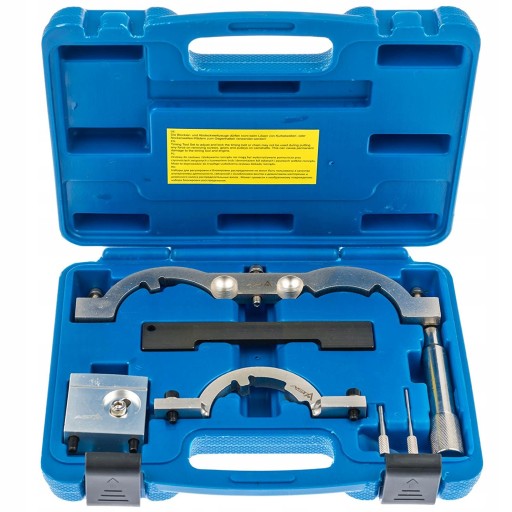

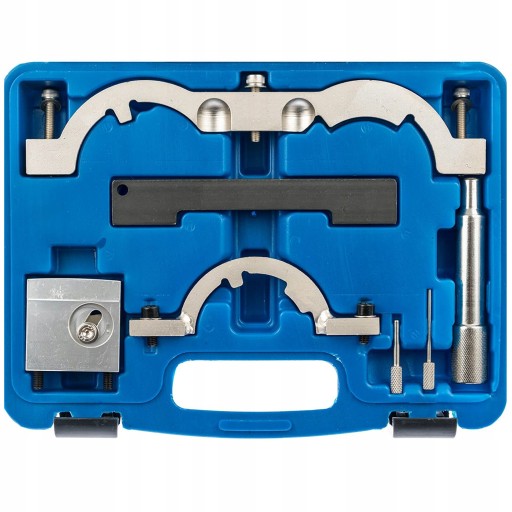

Content:

1. Crankshaft Locking Pin

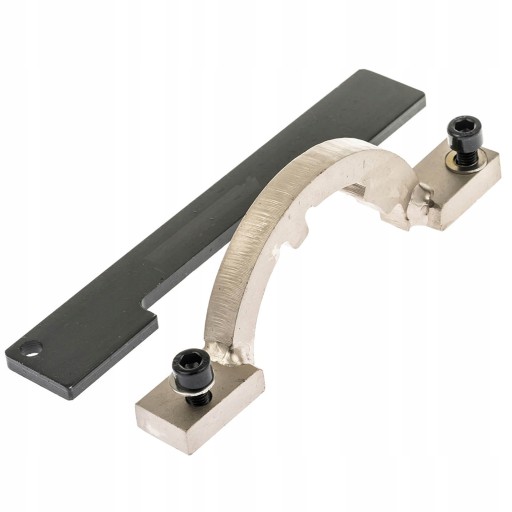

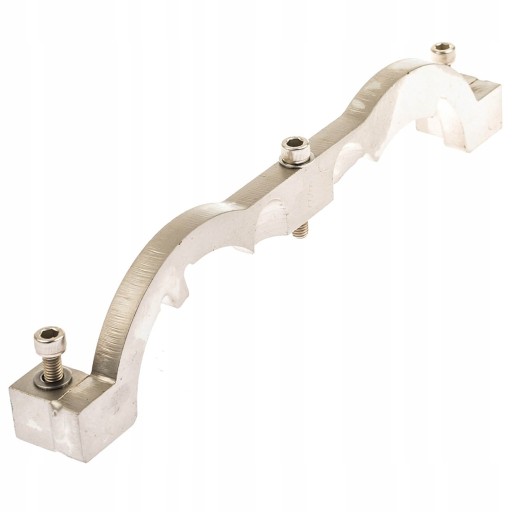

2. Camshaft Setting Plate

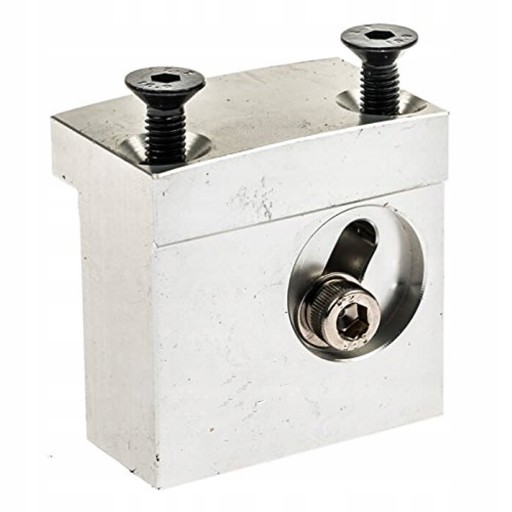

3. VVT Sensor Setting Tool (1.0L)

4. VVT Sensor Setting Tool (1.2 & 1.4L)

5. Camshaft Sprocket Holding Tool

6. Chain Tensioner Locking Pin

7. Belt Tensionet Locking Pin

Engines Code:

1.0: A10XEP (LDB),

1.2: A12XEL (LWD), A12XER (LDC),

1.4: A14XEL (L2Z), A14XER (LDD), LDU, A14XFL

1.4(T): A14NEL (LUH), A14NET (LUJ), Twinport / ecoFLEX engines ( chain )

LWD, L2Z, LDD, LUU/A14XFL, LDD/A14XER, LDD/A14XEL, LUJ/114NET, LUJ/A14NEL, A10XEP, A12XEL, A12XER, A14XEL, A14XER, A14NEL, LUJ/A14NET, LDD/A14XER, LUJ/A14NET, LUH/A14NEL, LUJ/A14NET, LUJ/A14NEL, L2Q/A12XEL, LDC/A12XER, LWD/A12XEL, LDD/A14XEL, LDD/A14XER

Engine Timing Tool Kit - Renault

This kit was originally specified for engines designed before 2003, however some components are used on engines up to 2010. For full coverage of Renault engines we recommend you also purchase

Additional Information

• This comprehensive set of over twenty tools enables the correct engine timing to be made when replacing the timing belt.
• Suitable for use on most popular cars with either petrol or diesel engines including: Laguna 2.2D/TD, Safrane 2.2TD, Espace 2.2 TD, Trafic 2.5D, Master 2.5D/TD.
• Applications are supplied on CD.
• Full OEM cross reference and guidance notes on component usage are included.

Motor Einstell Werkzeug Satz für Opel 1.0 1.2 1.4  Turbo

• Motor Einstell Werkzeug Satz, 7-teilig
• Marke Satra, Artikelnummer S-BOP1
• zum Einstellen der Motor Steuerzeiten, für Wechsel der Steuerkette und weitere Motorreparaturen
• passend für Opel Astra J, Adam, Agila B, Cascada, Combo, Corsa D, Meriva B, Mokka und Zafira Tourer
• sowie für Chevrolet Cruze
• für Benzinmotoren mit Steuerkette 1.0, 1.2, 1.4 l Turbo ab Baujahr 2010
• für die Motorkennbuchstaben A10XEP, A12XEL, A12XER, A14NEL, A14NEL/LUH, A14NEL/LUJ, A14NET, A14NET/LUJ, A14XEL, A14XEL/LDD, A14XER, A14XER/LDD, A14XFL/LUU, L2Z, LDD und LWD
• enthält ein Kurbelwellen Fixierdorn
• ein Nockenwellen Arretierwerkzeug
• zwei Sensor Einstellwerkzeuge
• ein Nockenwellen Gegenhalter
• ein Kettenspanner Fixierdorn
• ein Fixierstift
• Artikel für den täglichen Einsatz zum optimalem Preis-Leistungsverhältnis
