DIY Kit - Mod Medusa

DIY Kit - Mod Medusa

Shakmat DIY Full Kit - Mod Medusa

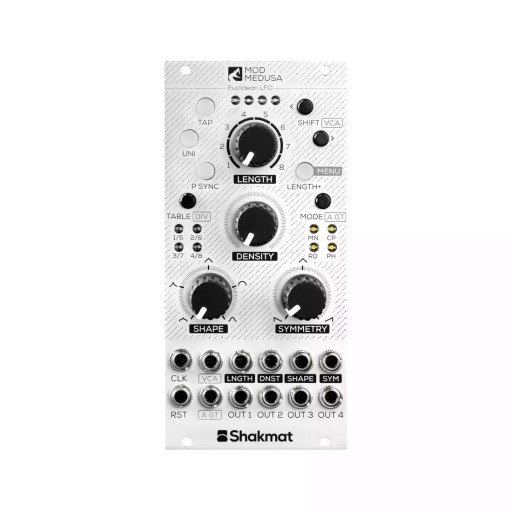

In a simplistic way, The Mod Medusa could be described as an Euclidean LFO : an “algorhythmic modulation source which produces variable period LFO signals synced to rhythmic patterns. Those patterns are generated by algorithms such as the Euclidean one or different ones coming from the White and Knight's Gallop. The Mod Medusa has 4 outputs generating 4 correlated LFOs, which give different “polyrhythms according to the chosen mode. Generated waveforms can easily be twisted using the symmetry and shape parameters which continuously morph the signal into different waveshapes. Many on-panel controls, assignable Gate and VCA Inputs turn the Mod Medusa into a strong performance tool. A very unique approach which leads to instantaneous and original results.

Features

Unique concept of sequenced LFO

Four outputs which can be correlated or independent

Four correlation modes : Main, Compute, Random or Phase

Eigth tables generated by algorithms producing different rhytmic patterns

Length (from 1 to 16 steps), density and shift controls over the sequence

Shape and symmetry controls over the generated waveforms

Unipolar or Bipolar outputs

Peak Sync function allowing to synchronize the LFO differently to the incoming clock

Assignable gate input which can work as ratchet, track and hold or one shot mode.

Assignable VCA input which can be assigned to any output.

On board clock divider

Bipolar CV inputs (except for the VCA input)

Current state storing

Skiff Friendly

Djtechtools rubber injected potentiometers

12 hp wide
