USB-тестер FNB48 PD Trigger QC4 PD3.0 2,0 PPS

Brand Name: ANENG

➤ DIY Supplies: ELECTRICAL

➤ Origin: Mainland China

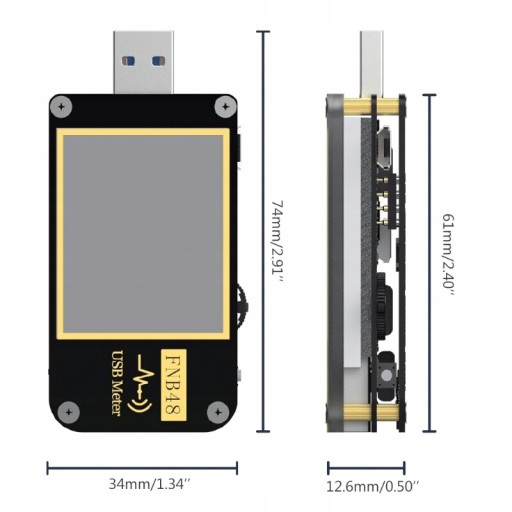

➤ Dimensions: see the picyure

➤ Display Type: Digital Only

➤ Certification: None

➤ Model Number: 9FF101267

FNB48 PD Trigger USB tester QC4 PD3.0 2.0 PPS Fast Quick Charging Voltmeter Ammeter Current Voltage Protocol Detector

Description

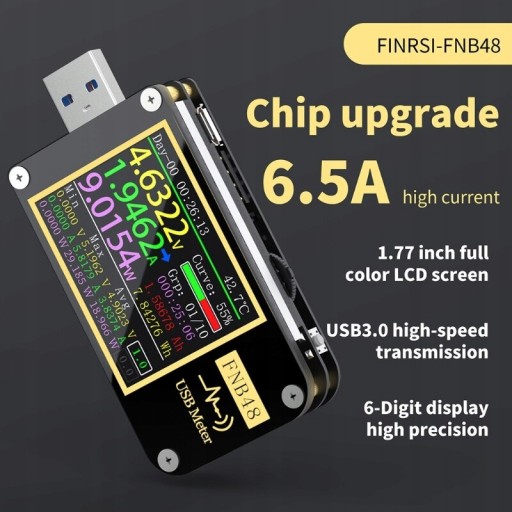

Integrated USB-A, Micro-usb, Type-c interface, with 1. 77-inch high-definition display, using external 16-bit ADC, PD protocol physical chip, real-time monitoring of voltage, current, power, power, capacity, charging protocol during charging, Curve aveform. etc

Features:

Protocol detection: APPLE2. 4A, QC2.0, QC3.0, PD, -Samsung AFC, FCP, SCP, VOOC/WARP, Supervooc, MTK-PE

Protocol trigger: QC2.0, QC3.0, FCP, SCP, -Samsung AFC,PD trigger, VOOC/WARP, SVOOC

6-digit display high precision: 5-digit/6-digit display with one-key switching, maximum resolution 0.00001, real-time monitoring of subtle changes in voltage, current and power during charging. It can also detect the weak current when the original Apple-data cable is no-load

The USB connector upgrade, faster transmission rate

FNB48 uses USB30 interface, 9-pin pin design, compatible with USB2.0. transmission rate is ten times that of USB2.0. and more energy-saving. No need to match the original data cable, you can also directly detect the charger protocol of OPPO, Huawei, Oneplus and other brands

Multiple data records, battery capacity calculation: FNB48 can record up to 10 sets of measurement data, The measured data can be used to calculate the battery capacity

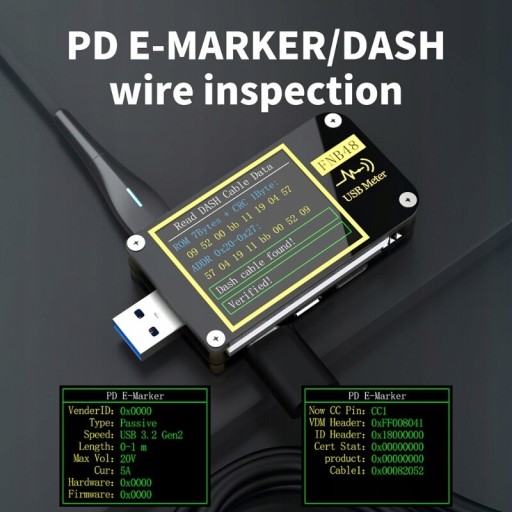

PD E-marker, DASH cable inspection

Voltage and current curve, real-time detection of voltage and current

Gravity sensing screen automatically flips

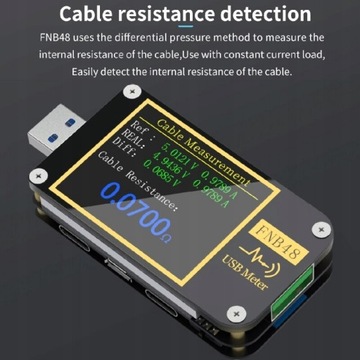

Cable resistance detection

Package included:

1 * FNB48 PD trigger USB Tester
