AS3006 ОБМОТКА ГЕНЕРАТОРА AS-PL

TOWAR FABRYCZNIE NOWY, ORYGINALNIE ZAPAKOWANY

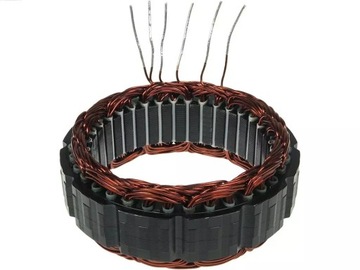

UZWOJENIE ALTERNATORA

RENOMOWANEJ FIRMY: AUTOSTARTER

Numer katalogowy: AS3006

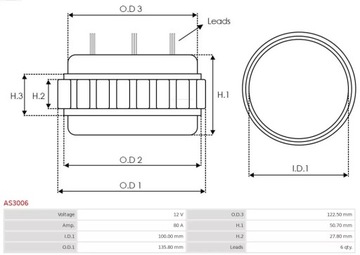

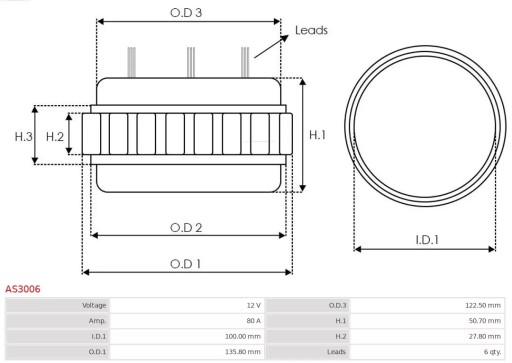

Informacje:

• Napięcie [V]: 12
• Prąd ładowania alternatora [A]: 80
• Średnica zewnętrzna 2 [mm]: 135,80
• Średnica wewnętrzna [mm]: 100,00
• Wysokość 1 [mm]: 27,80
• Średnica zewnętrzna 1 [mm]: 122,50
• Kod: AS3006
• Producent: AS-PL
• GenArtName: Stator, alternator
• EAN: 5901259416497

NUMERY OE CZĘŚCI:

100273, 1116284, 131982, 27-9407, CSR15002AS, S/128, 101025, 27-9419, SSR15002, 101868, WST8862, 71111703, STA0051, 2181699, NC117, 2518017, NC119, 2518054, 2518086, 2541127, 2541189, 2541202, 2541204, 2541226, 2541230, 2541258, 2541324, 2541327, 2541354, 2541369, 2541810, 2940373, 71770002, 71770102, 71770202, 8111708, 8111712, 9AR2603F, A14N1, A14N10, A14N101, A14N102, A14N103, A14N106, A14N107, A14N113, A14N117, A14N12, A14N121, A14N123, A14N125, A14N128, A14N13, A14N130, A14N131, A14N132, A14N134, A14N139, A14N14, A14N142, A14N144, A14N145, A14N148, A14N150, A14N151, A14N152, A14N156, A14N158, A14N16, A14N163, A14N164, A14N171, A14N172, A14N176, A14N178, A14N18, A14N19, A14N194, A14N194X, A14N195, A14N195X, A14N199, A14N199X, A14N2, A14N20, A14N22, A14N23, A14N29M, A14N31T, A14N35, A14N36, A14N37, A14N38, A14N4, A14N40, A14N42, A14N50, A14N51, A14N53, A14N54, A14N55, A14N56, A14N59, A14N60, A14N62, A14N63, A14N64, A14N65, A14N69, A14N70, A14N71, A14N74, A14N77, A14N78, A14N79, A14N80, A14N82, A14N83, A14N84, A14N85, A14N86, A14N88, A14N89, A14N9, A14N90, A14N91, A14N92, A14N93, A14N96, A14N97, A14N99, A3001

ZASTOSOWANIE:
