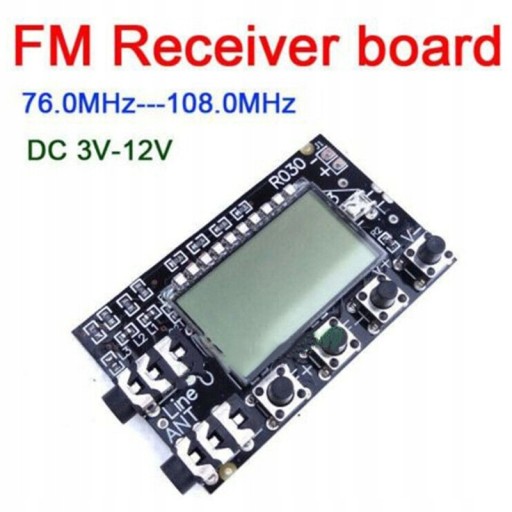

FM-стереорадиомодуль FM-приемник с цифровым ЖК-дисплеем

Compatible Audio & Video Equipment Style: Professional Audio Equipment

➤ Bundle: Bundle 1

➤ Dimensions (WxHxD)): 53mm x 31.7mm

➤ Package: Yes

➤ Model Number: FM Receiver Module

➤ Weight: other

Specifications:

➤

Condition: Brand New

➤

Power Supply: DC 3V-12V

➤

Working Current: 22mA

➤

Shutdown Current: 30uA

➤

Receiving Frequency Range: 76.0MHz~108.0MHz

➤

Sensitivity: 1.3uV

➤

Volume: 9 levels, level 0 muted, level 8 maximum sound

➤

Output: Directly drive universal earbuds.

➤

Board Size: 53mm x 31.7mm (L*W)

➤

Frequency and volume have power-off memory function.

➤

In the off state, press any key to turn it on, long press V- button to shut down.

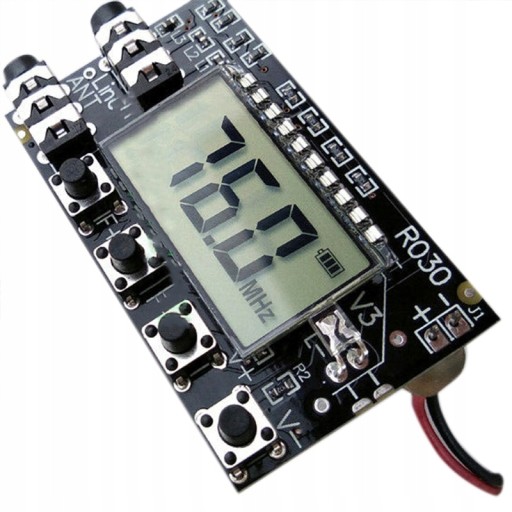

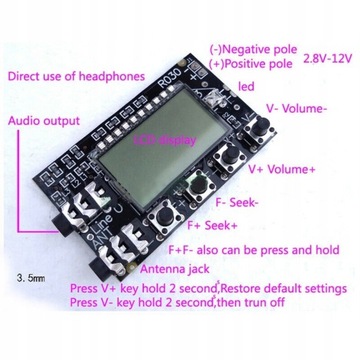

Instructions:

1. Short press the F button to search for the station upwards. After searching the station, it will stop and play the station.

Press and hold the F button and the receiving frequency is incremented by 0.1MHz.

2. Short press the F- button to search for the radio downwards. After searching the station, it will stop and play the station.

Press and hold the F- button and the receiving frequency is decremented by 0.1MHz.

3. Short press the V button, the volume will increase by one level, and the maximum volume position is 8.

Press and hold the V button to restore the factory default parameters, frequency 99MHz, volume level 6.

4. Short press the V- button to decrease the volume by one level, the minimum level is 0 (mute).

Press and hold the V- button to turn it off.

5. After shut down, press any key to turn it on.

6. Without the button operation, the backlight will go out after 30 seconds. After three minutes, the LCD

screen will go out and the peripheral circuits will go to sleep.

7. After the light is off, press any key to wake up the relevant circuit, the light and the screen resume

display. This time the button is non-functional, only the wake-up function, after the light is on, each button

has the corresponding function.

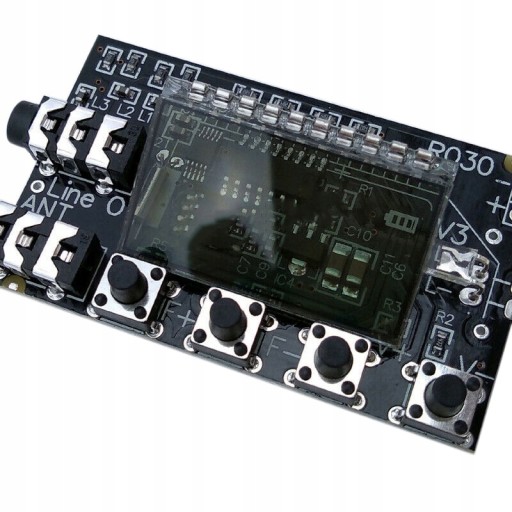

8. Line O socket is an audio output, standard 3.5mm size, can directly drive the common 32 ohm earplugs.

9. The ANT socket is for antenna connection.

Package Included:

➤

1 x FM Receiver Board

Notes:

➤

Other accessories demo in the picture is not included.

➤

Due to manual measurement, please allow size differences about 1-5mm.

➤

Due to the light and screen setting difference, the item's color may be slightly different.
