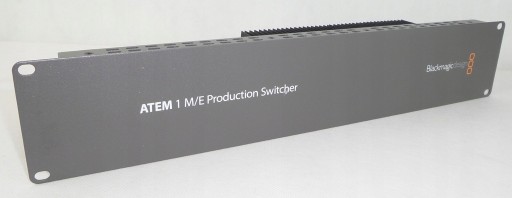

BlackMagic ATEM 1 M/E PRODUCTION SWITCHER

BlackMagic ATEM 1 M/E

Sprawny, testowany

brak zasilacza

Total Video Input

10

Total Video Output

8

SDI Video Input

10 x 10-bit SD/HD/Ultra HD Switchable. 2 channel embedded audio.

HDMI Video Input

1 x HDMI type A. 10-bit SD/HD/Ultra HD  switchable. 2 channel embedded audio.

Analog Audio Output

2 x XLR.

SDI Audio Output

2 Ch embedded into SDI output on all outputs.

Audio Input

2 x XLR. 2 x RCA.

Sync Input

Tri-Sync or Black burst.

Internal Frame Synchronizers

10. All inputs.

SDI Program Output

2 x 10-bit SD/HD/Ultra HD  switchable.

HDMI Program Output

1 x HDMI type A, 10-bit SD/HD/Ultra HD switchable.

Down Converted SDI Program Output

1 x 10-bit (Ultra HD to HD)

SDI Preview Output

1 x 10-bit SD/HD/Ultra HD switchable.

SDI Aux. Output

3 x 10-bit SD/HD/Ultra HD switchable.

Quantity of Multi Views

2

Multi View Outputs

1 x SDI and 1 x HDMI.

Control Panel Connection

Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.

Tally Output

Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)

Computer Interface

1 x USB 2.0 port.Standards

HD Format Support

720 50p, 720 59.94p 1080 50i,1080 59.94i, 1080 23.98p, 1080 24p,1080 25p, 1080 29.97p, 1080 50p,1080 59.94p.

SDI Compliance

SMPTE 259M, 292M.

SD Format Support

525 59.94i NTSC, 625 50i PAL,525 59.94i 16:9, 625 50i 16:9.

Video Sampling

4:2:2.

Color Precision

10-bit

Color Space

REC 601, REC 709, REC 2020.

HDMI Input Resolutions for Computers

720 x 480i 59.94Hz, 720 x 576i 50Hz,1280 x 720 59.94Hz, 1280 x 720 50Hz,1920 x 1080 50Hz,1920 x 1080 59.94Hz,3840 x 2160 23.98Hz,3840 x 2160 24Hz, 3840 x 2160 25Hz,3840 x 2160 29.97Hz.

Software

Control Panel Included

ATEM Software Control Panel included free for Mac OS X 10.7.2 or 10.8 Mountain Lion and Windows 7 64-bit or Windows 8 64-bit.

Software Updates

Using USB 2.0 connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

Configuration

Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Processing

Colorspace Conversion

Hardware based real time.

Processing Delay

< 2 Lines.

Audio Mixer

12 input x 2 channel mixer.

Selectable On/Off/Audio-Follow-Video.

Level and Peak metering.
