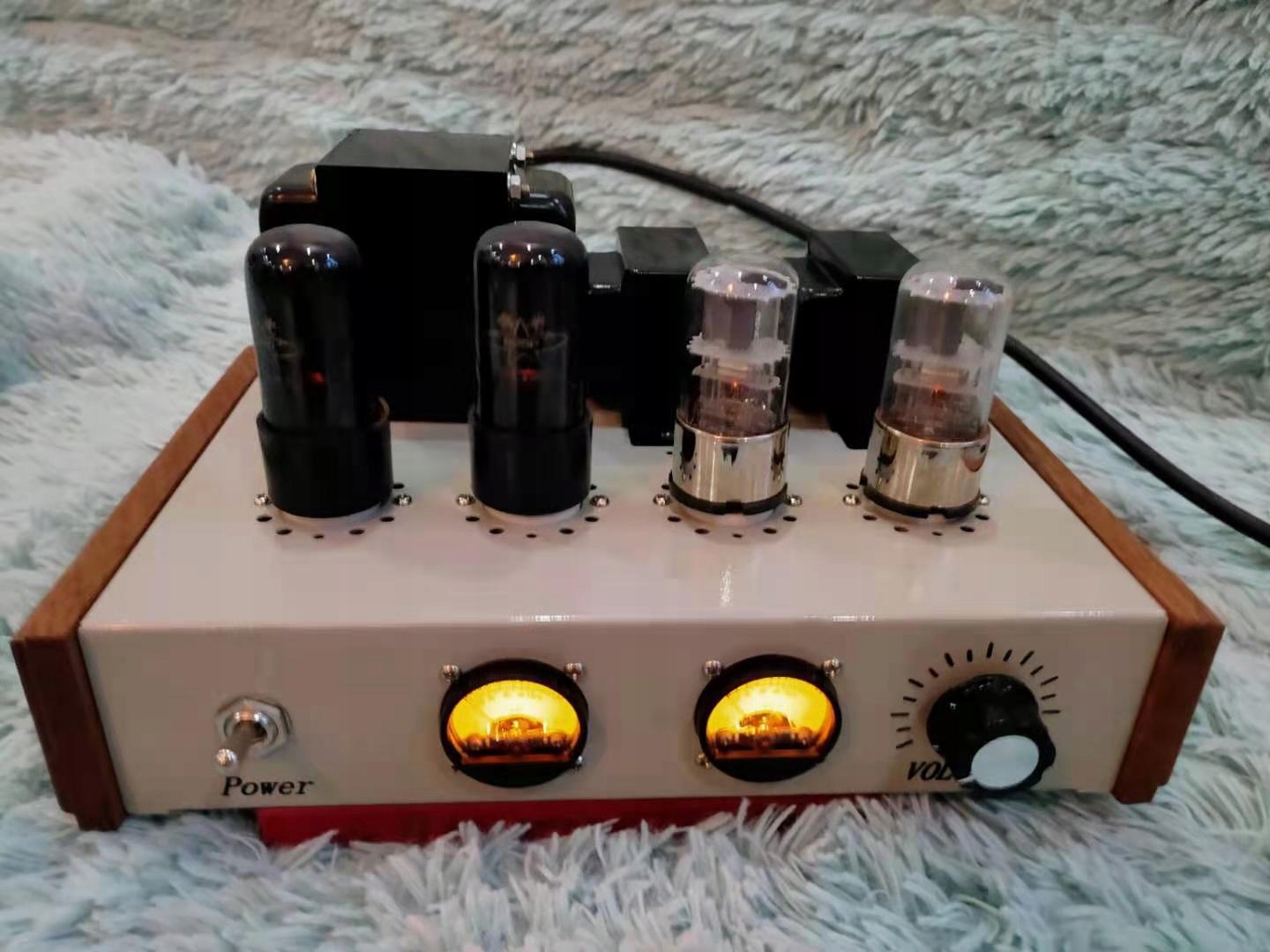

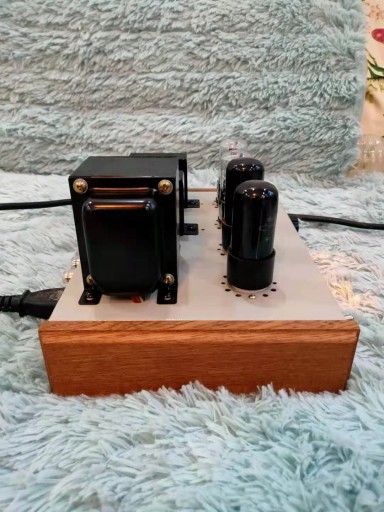

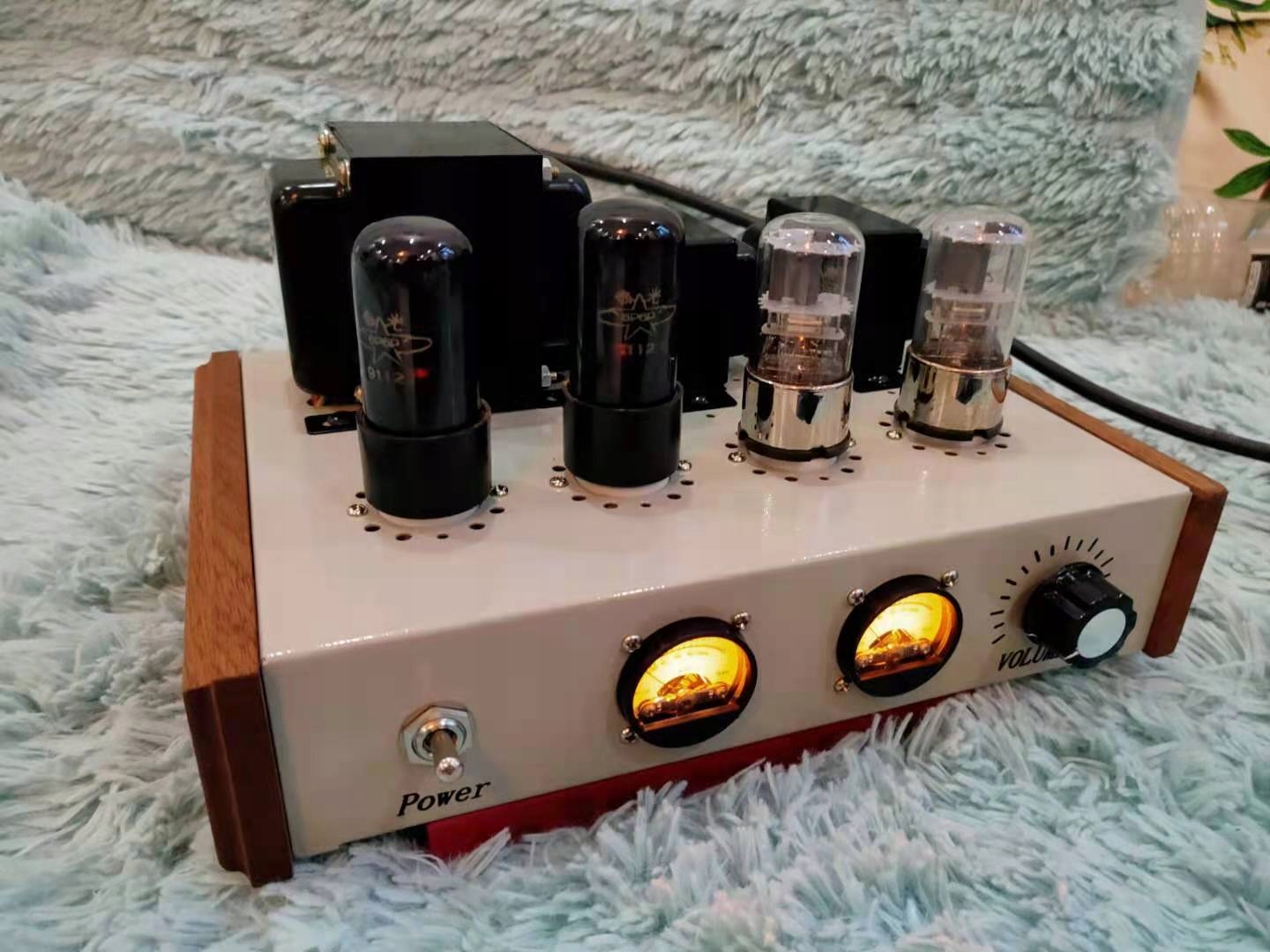

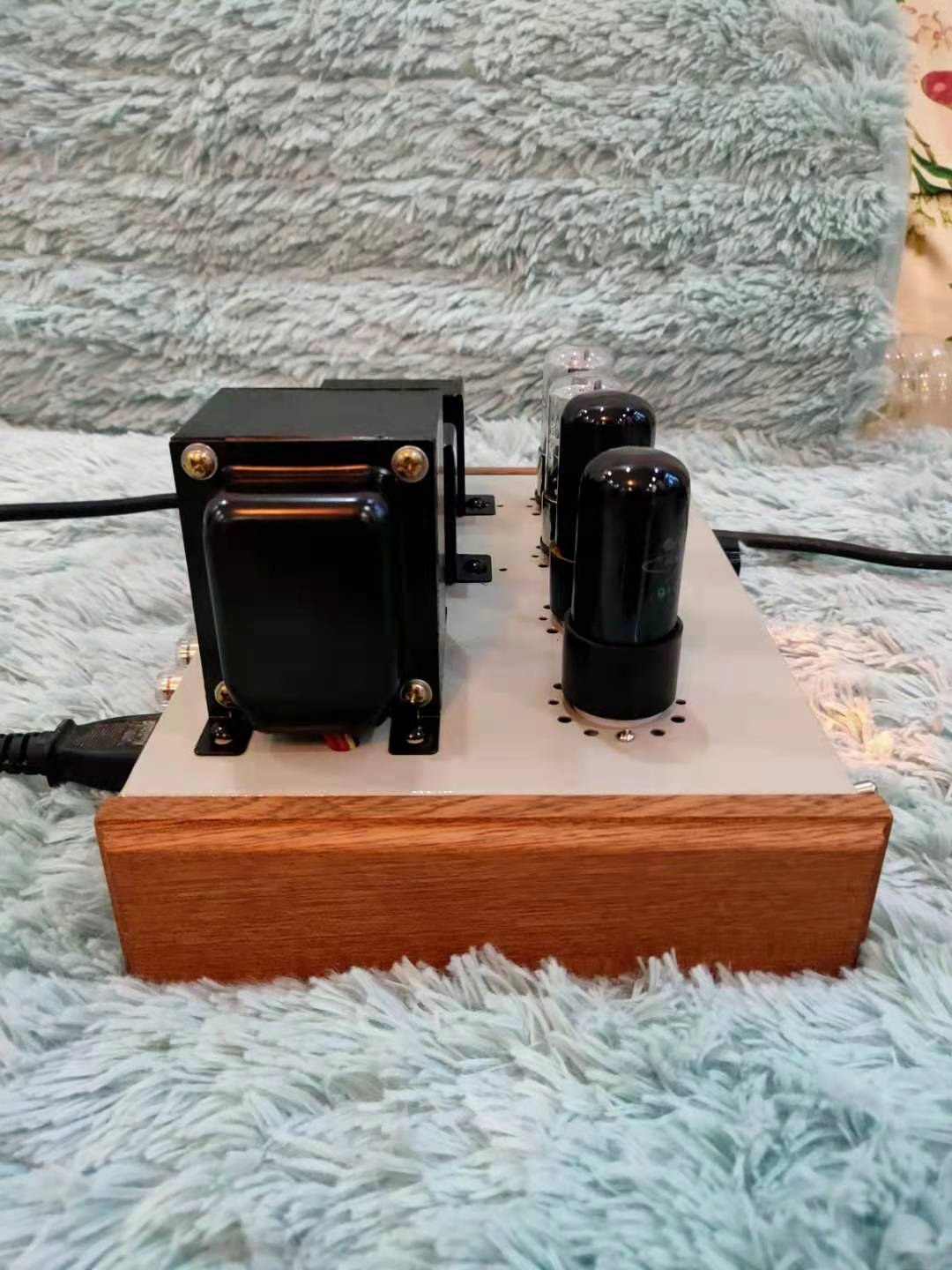

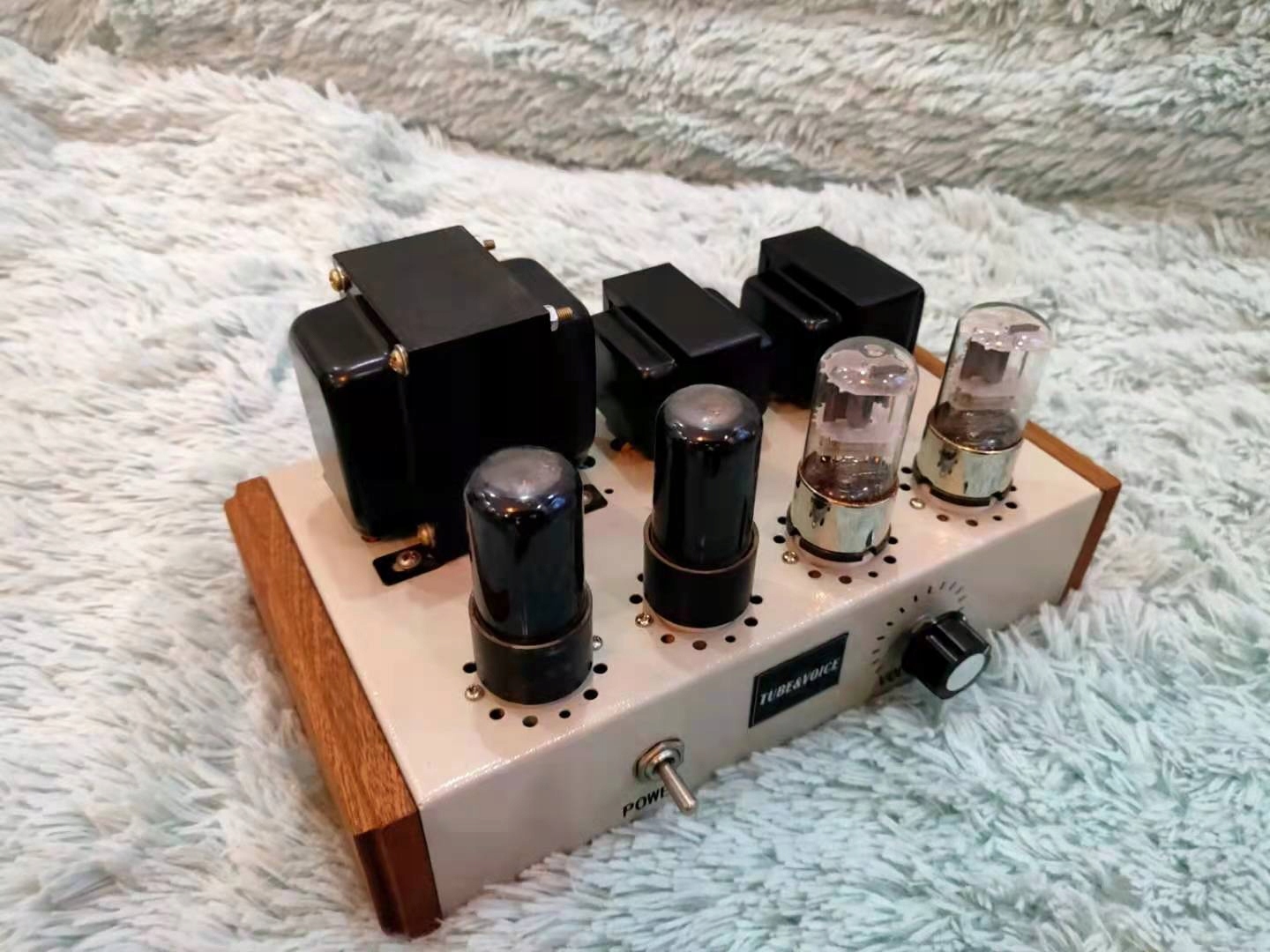

Hot sales 6P6p 6V6 Class A Dawning Vacuum Tube Amplifier

6P6p 6V6 Single-ended Class A Dawning Vacuum Tube Amplifier Associated KT88 EL34 etc. Hand Soldering Amplifier Audio

6P6p 6V6 Single-ended Class A Dawning Vacuum Tube Amplifier Associated KT88 EL34 etc. Hand Soldering Amplifier Audio

Product parameters:

Model: 6V66P6P

With watch head with red wood board

Standard plus African wood with protective cover

Technical Parameter

Input voltage : AC220V/110V

Rated output power (Power Output): 5WX2

Super linear connection frequency response (Frequency Response): 20KHz-20KHz

Power transformer power (Power Consumption): 70W

Input Impedance: 100k

Output Impedance: 8 (4 optional, default 8)

Signal to Noise Ratio (S/N Ratio): 90db

Input Sensitivity: 500mv-2000mv

Harmonic Distortion: 1% (1khz)

Volume (Dimension): length 22CM width 17.5CM height about 16.5CM

Weight: 7KG

Bile machine used tube: 6G2P*2

6P6P*2

The new dawn, you can upgrade the imported tube yourself,

Machine introduction:

Using (6G2P) 6SQ7 as the pre-amplifier to promote the famous tube

(6p6p) 6v6, this tube tube amplifier has all new tubes in stock, all

accessories are brand new, pure copper transformers, Korean decoupling

capacitors, Japanese original filter capacitors , American coupling

capacitors, plastic sealed potentiometers, pure copper crystal

terminals, optional American red beauty coupling and various capacitors,

new low-frequency dives very deep, high-frequency transparent and

elegant, direct engraving of German lines, experiment with multiple

samples, Satisfaction with the final tone, every watt is strong

Brand Name : GZbotolave

Maximum Power Per Channel : 4W

Origin : Mainland China

Package : Yes

Channels : 2 (2.0)

Certification : CE

Model Number : 6P6p 6V6
