Горячие продажи цифрового проигрывателя проигрывателей DSD PCM Dual AK4495S DAC

HDP3 32Bit HIFI Music Digital Turntable Player DSD PCM Dual AK4495S DAC Remote Control SDHC 256G

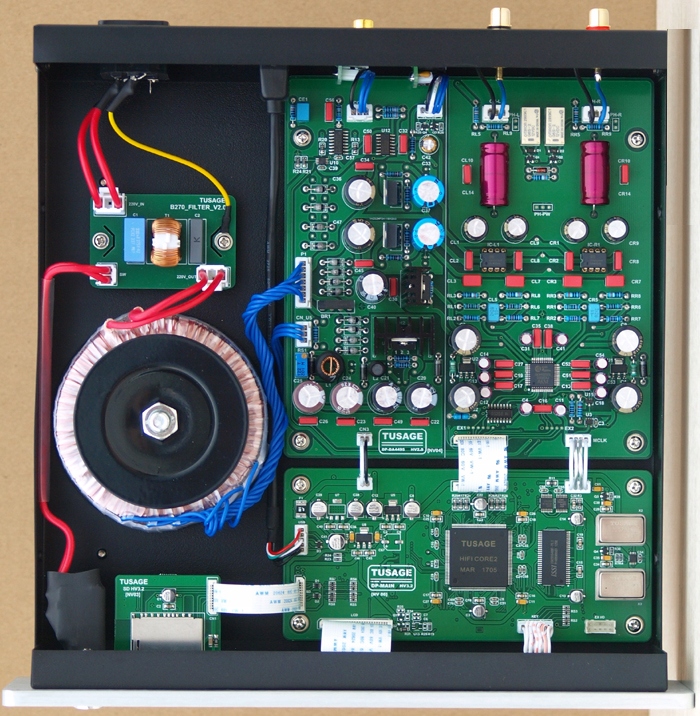

Hardware introduction:1. Support u disk, maximum support 2TB, support 2T mobile hard disk (currently only support FAT32 file system, support one partition)2. Support SD card, SDHC supports 512gb at most3. Full view IPS 4.3 inch LCD supports 16 level brightness adjustment4. DAC chip ak4495s supports up to 192Khz 32bit5. Internal DAC output supports volume adjustment6. Support SPDIF digital coaxial and optical fiber output, (support DOP transmission of DSD original code stream, support transmission of DTS 5.1 channel original code stream)7. It can be used as a DAC decoder, supporting 192K audio digital coaxial input or optical fiber input－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－8. Optional: support Bluetooth lossless audio transmission and Bluetooth mobile phone app control function (APP control only supports Android mobile phones) (If you need this function, please connect with us)Dimensions: L: 270mm x H: 80mm x D: 265mmColor: silver brushed aluminum panelWeight: 3.8 kgPart of the circuit structure is introduced:The main control CPU, DAC chip and analog op amp output are powered by separate power pack, which can effectively reduce the power crosstalkDAC chip uses ak4495s, which is better than cs4398 chip used in hdp2 beforeAnalog audio output using two BB company opa604 single op ampMain control board: DSP main control CPU with high speed, low power consumption and low noiseI2S, SPDIF, DSD digital signal output is to directly generate the original audio data through the internal DSP chip output, avoid the use of wm8805, dit4192 such as I2S - > SPDIF conversion chip to make the signal jitter caused by multiple conversion and produce poor sound!The audio clock directly selects two low phase noise active crystal oscillators 22.5792mhz and 24.576mhz, which are directly input into DSP chip and DAC chip. Without any PLL PLL frequency conversion circuit, it can effectively reduce the jitter of clock jitter and reduce the clock phase noise, making the sound quality more quiet, clean and smoothDAC BoardCompared with cs4398 chip used in hdp2 before, the DAC chip uses ak4495s, which has better sound quality, better hearing resistance, cleaner background, better level, wider sound field, better music sense, deeper and more powerful low-frequency diving, more real and pleasant if human voice, and more sweet and delicate high-frequency!Use Elna, Nichicon, Wima, RIFA capacitorsAnalog audio output using two BB company opa604 single op amp, sound quality clean, transparent, high resolution!Software introduction:Playback format:1. WAV 44.1KHz 48Khz 96KHz 176.4khz 192Khz [1624 32bit] (supporting integer or floating point data)2、APE C1000, C2000, C3000 44.1KHz - 192KHz [16 24 32Bit], C4000 48KHz [16 24 32Bit]3. FLAC 1-8 44.1khz-192khz [1624 32bit]4. Mp3 64k-320k CBR VBR code stream 48Khz 16bit5、SACD(DSF、DFF、ISO) 2.822MHz 、5.644MHz, DSD64、DSD1286. Support CUESoftware function:1. Support 25 segment spectrum display2. Support power-off memory playback function (support to second level memory)3. Automatically search the songs in U disk or SD card after power on4. Support simplified and traditional song name and file name display5. Auto scrolling long text6. Support FAT32 file system, support MBR, GPT partition boot7. Support 16 layer file directory8. File names are arranged in pinyin numerical order9. You can browse the file list or the play list smoothly while playing10. Support separate folder playback11. Support custom collection list playing (this function can add your favorite songs to the collection list to play)12. It supports DOP transmission and can transmit DSD original code stream through SPDIF digital coaxial signal13. Support JPG, BMP format cover image display, (maximum image resolution 1000X1000 pixels)14. Two different styles of main interface display－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－15. Optional: support Bluetooth lossless audio transmission and Bluetooth mobile phone app control function (APP control only supports Android mobile phones)When Bluetooth audio transmission is supported, the song name, singer name and lyrics in the mobile phone player software can be synchronized and displayed on our player. (Bluetooth audio supports SBC, AAC, MP3, aptx, aptx-hd)

Origin : Mainland China

Speaker : Yes

Type : Home

Plug Type : EU plug

Interface Type : USB

Playback Formats : SACD DSD WAV APE FLAC MP3

Model Number : HDP2 24Bit

Dimensions (WxHxD) : 270mm X H: 70mm X D: 265mm

Package : Yes

Remote Control : Yes

Certification : NONE
