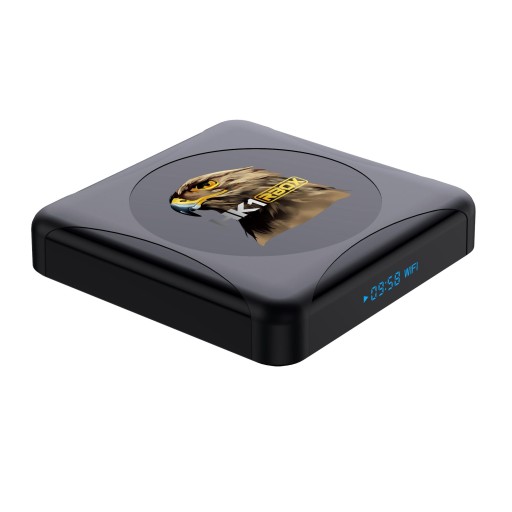

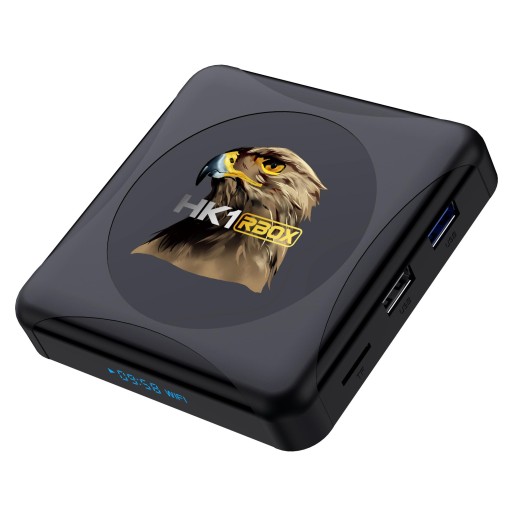

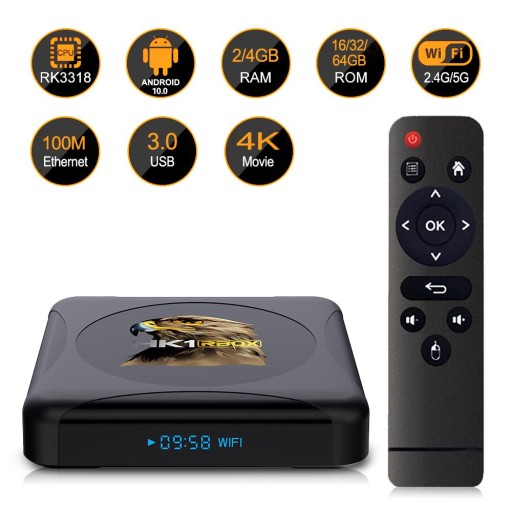

HK1 RBOX R1 Mini Smart TV Box Android 10 Rockchip

HK1 RBOX R1 Mini Smart TV Box Android 10 Rockchip RK3318 Support 1080p 4K Media Set Top Box

Descriptions:

1, RockchipRK3318Quad-Core 64bit Cortex-A53;

2, GPU: Penta-Core Mali-450 ;

3,Android 10.0 OS;

4, Support H.265, 4K 60pfs, HD 2.0, USB3.0,USB2.0;

5, Support 10/100M Ethernet, 2.4G&5G Dual Wifi;

7,There are Three Options for R1 mini Box:

A: 2GB+16GB+2.4G&5G Wifi +BT4.0

B: 4GB+32GB+2.4G&5G Wifi +BT4.0

C: 4GB+64GB+2.4G&5G Wifi+BT4.0

Hardware Specifications

Chipset

Rockchip RK3318 Quad-Core 64bit Cortex-A53

GPU

Penta-Core Mali-450

FLASH

EMMC 16GB/32GB/64GB (Optional)

SDRAM

2GB/4GB DDR3

Power Supply Specifications

Power Supply

DC 5V/2A

Power Indicator (LED)

Power ON: Blue

Main Features

OS

Android 10.0

Support Decoder format

4K VP9 Video decoder,  H.265/H.264 video decoder

1080P other video decoders (VC-1, MPEG-1/2/4, VP6/8)

Support Media format

Avi/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg

Support Music format

MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE

Support Photo format

HD JPEG/BMP/GIF/PNG/TIFF

HDR

HDR10 and HLG modes

USB

1x Type-A USB3.0, 1x Type-A USB2.0

Card reader

TF cards

HDD file system

FAT16/FAT32/NTFS

Support Subtitle

SRT/SMI/SUB/SSA/IDX+USB

High Definition video output

4K (4096x2160 pixel )

OSD type of languages

English/French/German/Spanish/Italian/ etc multilateral languages

LAN

Ethernet:10/100M standard RJ-45

Wireless

2.4&5GHz Dual-band Wifi, 802.11 a/b/g/n

Mouse/ Keyboard

Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle

HD

HD 2.0a for 4k@60Hz

AV

Support

Software Specifications

Network Function

KD18.1,

Other feature

Certification

CE,FCC,ROHS

Accessories

Power adaptor, HD cable, User Manual, Remote Control

Option

Support mouse and keyboard via USB; Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle

Package:

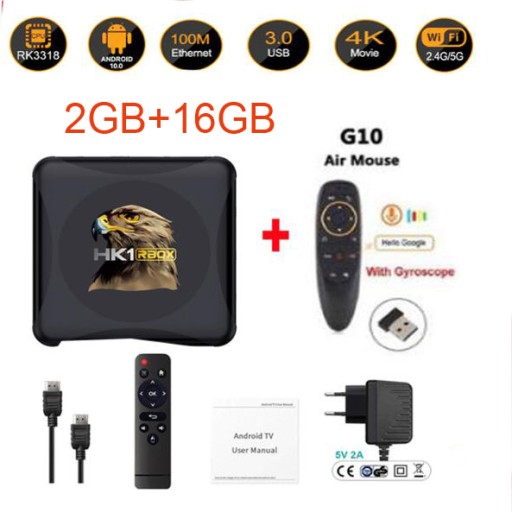

- 1 x HK1 R1 mini Box

- 1 x Remote control

- 1 x Power Supply

- 1 x HD Cable

- 1 x User Manual

Max. Extended Capacity : TF Card Up To 128GB

Power : DC 5V,2A

IPTV : Yes

GOOGLE Cast : Yes

System Upgrade : Yes

OTA Update : Yes

Weight : 0.55

Remote Control : Included

Ethernet : 100M

Wireless : Yes

Internal Storage : 16GB eMMC,32GB eMMC,64GB eMMC

Memory : 2G DDR3,4G DDR3

Bluetooth : Yes
