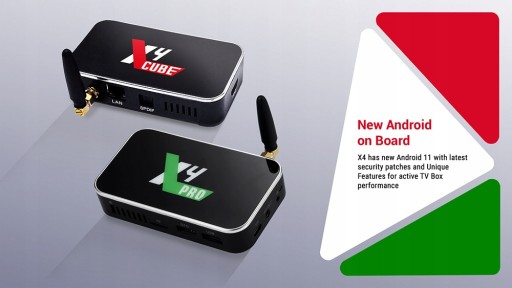

UGOOS X4 Pro TV BOX Android11 Amlogic S905X4 WIFI

UGOOS X4 Pro TV BOX Android 11 Amlogic S905X4 LPDDR4 4GB RAM 32GB ROM Support AV1 CEC HDR 1000M BT4.0 OTT 4K 2GB 16GB 64GB

UGOOS X4 Pro TV BOX Android 11 Amlogic S905X4LPDDR4 4GB RAM 32GB

Highlight:

ROM Support AV1 CEC HDR 1000M BT4.0OTT 4K 2GB 16GB 64GB

- CPU: Amlogic S905X4 Quad-Core ARM Cortex-A55

- GPU: ARM G31 MP2

- Android 11.0 OS

- RAM: LPDDR4 2GB/4GB

- ROM: 16GB/32GB/64GB eMMC

- Support: AV1, 4K@60 fps, CEC, HDR

- Support: 2.4G&5G Dual Wifi, 2T2R 802.11 a/b/g/n/ac, BT4.0

- Support: LAN 1000Mbps Gigabit

- Support : 1*USB3.0, 1*USB2.0, 1*Type C(Power In)

- Support: 1*RJ45, 1*SPDIF, 1*HD

- Support: Firmware on Line Upgrade(OTA)

-There are three options for X4 Series:

X4 Cube: 2G+16G+Dual Wifi+BT4.0+1000M

X4 Pro: 4G+32G+Dual Wifi+BT4.0+1000M

X4 Plus: 4G+64G+Dual Wifi+BT4.0+1000M

Pls note :Sales TV BOX Only, No Channels APP included.

About mini keyboard or air mouse multi-language versions description:

Hebrew version will be sent to Israel customers;

Russian version will be sent to Russia/Belarus/Ukraine/Kazakhstan customers;

English version will be sent to Other Countries customers by default;

if you need another version, please leave us a message.

1.Backlit i8 keyboard- English / Russian / Spanish 3 optional versions, with 7 colors backlit.

2.G10 remote control- with voice & Gyroscope & IR Learning Function.

Specification

Hardware Spec

Operation System

Android 11

Language

Chinese,English...Multi-Language support

CPU

Amlogic S905X4 Quad core ARM Cortex-A55

GPU

ARM G31 MP2

SDRAM

LPDDR4 2GB/4GB

Flash

16GB/32GB/64GB (EMMC)

Network

2.4G/5G 802.11a/b/g/n/ac 2T2R

BT

BT4.0

The extended storage

SD Card, up to 32GB (SD2.X,SD3.X,SD4.X, eMMC ver5.0)

CEC

support

RTC

support

Power Supply

DC 5V/2.5AType C

HDR

support

Interface

HD Output

HD(1.4 and 2.0 ) to support maximum 4K@60fps

output(HDCP2.2)

USB Port

1*USB 2.0 OTG+

1*USB 3.0 host

Data Output

1*SPDIF

Led work light

support

Network

1*RJ45 1000M (Gigabit network)

Power Supply

1*Type c

TF Card

1*TF Card

Media Parameter

Audio Container

MP3,AAC,WMA,RM,FLAC

Audio Out

Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable

7.1/5.1

Built-in SPDIF/IEC958 output and PCM input/output

Built-in stereo audio DAC

Video CODEC

− AV1 MP-10@L5.1 up to 4Kx2K@60fps

− VP9 Profile-2 up to 4Kx2K@60fps

− H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps

− AVS2-P2 Profile up to 4Kx2K@60fps

− H.264 AVC HP@L5.1 up to 4Kx2K@30fps

− MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

− WMV/VC-1 SP/MP/AP up to 1080P@60fps

− AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

− MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

− MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

− RealVideo 8/9/10 up to 1080P@60fps

− Multiple language and multiple format sub-title video support

Software Extension

Support Google Play & APK install

DLNA,Miracast Protoco

Support DLNA, Miracast Protocol

Remote Control

Remote controller

IM Software

Support Skype/QQ/MSN/GTALK (Depends on APK ）

Office Software

WORD/EXCEL/PDF(Depends on APK install)

Others Parameters

Operation Temperature

0~60℃

Storage Temperature

-10~60℃

Humidity environment

5%-90%(No condensation）

Certification

CE, FCC, Wi-Fi

What's in Box?

- 1 x X4 Cube / X4 Pro / X4 Plus TV Box

- 1 x Remote Control

- 1 x HD Cable

- 1 x Power Supply

- 1 x User Manual

Category : Set Top Box

System : Android 9.0

Max. Extended Capacity : TF Card Up To 32GB

Power : DC 5V,2.5A

System Upgrade : No

OTA Update : Yes

Weight : 0.43kg/pc

Remote Control : Included

Ethernet : 1000M

Wireless : Yes

Internal Storage : 16GB eMMC,32GB eMMC,64GB eMMC

Memory : 4 gb DDR4,2GB DDR4

Bluetooth : Yes

Video Output : None

OS : Android

CPU : Amlogic S905X4 Quad-Core ARM Cortex-A55

GPU : ARM G31 MP2

Brand Name : ugoos

Origin : Mainland China

Certification : CE

Operating System : Android 9.0 OS

RAM/ROM : 2GB/16GB,4GB/32GB,4GB/64GB optional

Feature : android box

Feature 0 : tv box android 11

Feature 1 : smart tv box android

Feature 2 : android tv box 11

Feature 3 : tv box

Feature 4 : smart tv box

Feature 5 : android tv set top box

Feature 6 : smart box

Feature 7 : media player

X4 Pro : TV BOX Android 11
