Многофункциональный настольный ноутбук TL631 Pro LPC-DEBUG Открытка PCI PCI-E Mini

2. Gemini drive module: BGA type driver module, part design.

3. The TL631 PRO card does not see any resistance and capacitance, it looks beautiful and generous. Use it more freely.

4. Integrated patch digital tube: Self-developed binding digital tube, brand LED core, bright and comfortable, thin and scientific sense.

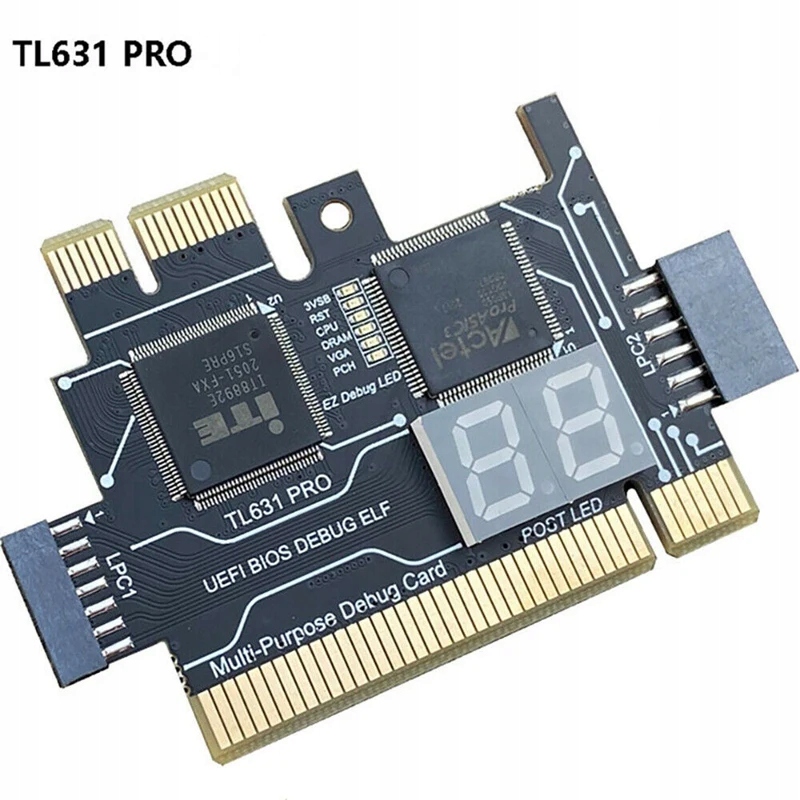

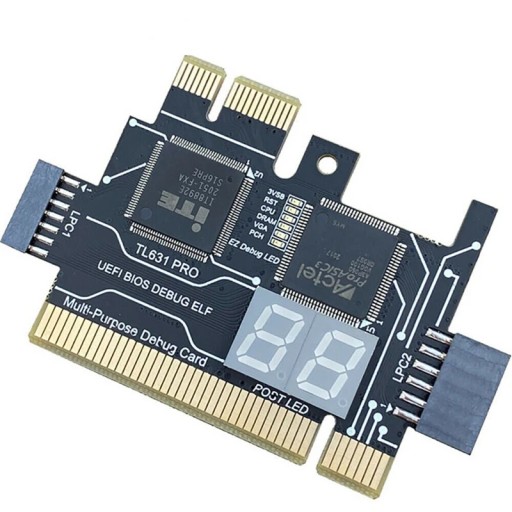

TL631 Pro interface description:

1: LPC1 shared high-speed channel = connect to the motherboard 2.0 small pin LPC interface, 2.0 module

(Module expansion LPC3 interface can connect notebook MINI PCIE conversion card, A-DEBUG conversion card, ASUS notebook DEBUG-CON. EC-DEBUG).

2:PCI high-speed channel = support all PCI slots.

3:LPC2 shared high-speed channel = connect to the motherboard 2.54 large pin LPC interface, ASUS COM-DEBUG. ASRock UART1, MSI JDP, Supermicro SPl.

4:PCIE X1 high-speed channel = support Gigabyte without PCI motherboard (other brands do not support).

5:3VSB power indicator, to detect whether the power is normal.

6:RST reset indicator, to detect whether the motherboard reset is normal (only when PCI or PCIE is inserted)

7:CPU indicator light, to detect whether the CPU module is normal.

8:DRAM memory indicator, to detect whether the memory module is normal.

9:VGA graphics indicator light, to detect whether the graphics card module is normal.

10:PCH south bridge indicator light, to detect whether the south bridge module is normal.

11:DP decimal point, CLK signal display.

12:DP decimal point, FRAME frame signal display.

13:threading hole

Colour:black

Material:PCB board + electronic components

Size:78 x 52mm

Types: A/B

Package Contents:

1 x TL631 Pro Diagnostic Card

/

1 x TL631 Pro Diagnostic Card

1 x 2.0 modules

15 x DuPont cables

1 x Expansion Card

1 x Power Cord

2 x flex cables

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
