High precision Digital Pressure Gauges

This instrument can measure the air pressure in one pipe or the pressure difference in two pipes. It adopts high-quality pressure sensor, high-accuracy ADC and MCU with low power consumption. Multi-functional, with temperature / pressure measurement and storage function, low power consumption reminder function, data hold function, max / min value mode, DIF mode etc. It is suitable for measuring the ventilation and air conditioning system, and is widely used for gas measurement, calibration and other pressure system problems.

Functions:

It adopts high-quality pressure sensor, high-accuracy ADC and MCU with low power consumption.

Professional digital pressure gauge for measuring internal temperature ， with a wide range, high resolution and high measurement accuracy.

Multi-functional, with temperature / pressure measurement and storage function, low electricity reminder function, data hold function, max / min value mode, DIF mode etc.

℃ and ℉ can be switched.

There are 12 adjustable pressure units that can be set to mmHg, inHg, ftH₂O, cmH₂O, inH₂O, Pa, KPa, mbar, bar, psi, Kgcm² and ozin².

Equipped with a large digital display, you can see the data clearly.

Fast real-time pressure measurement via one channel and detection of pressure differences across two detection ports via two channels.

It is suitable for measuring ventilation and air conditioning systems, and also widely used for gas measurement, calibration and other pressure system problems.

Specifications:

Name: Digital pressure gauge

Material: ABS

Display: LCD

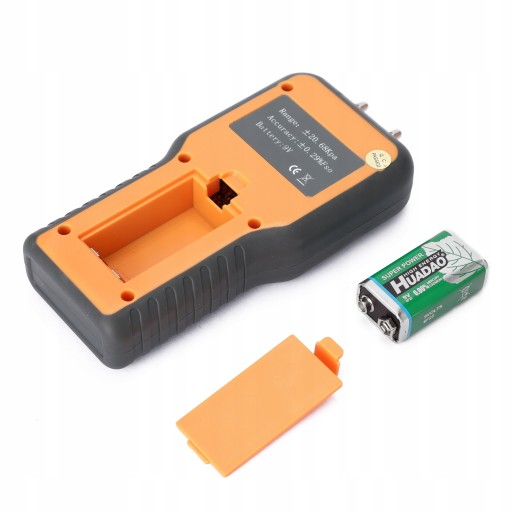

Battery: 1 * 6F22, 9V, 250mAh battery (included)

Pressure measurement range: ± 2,999 psi

Accuracy: ± 0.3% FSO (at 25 ℃)

The amount of data stored: 100

Maximum pressure: 20 kPa

Units: switchable ℃ / ℉

The lower battery reminds: ≤6.8V.

Automatic closing: 15 minutes after inactivity

Working temperature: 0-50 ℃ (32-132 ℉)

Storage temperature: -10 ℃ to 60 ℃ (14-140 ℉)

Product size: 159 * 76 * 32mm / 6.26 * 2.99 * 1.26in

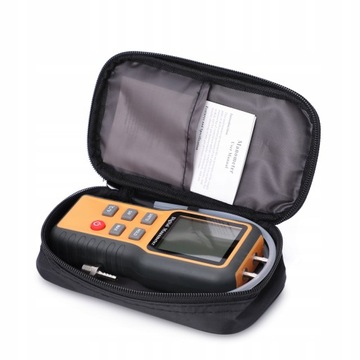

Carrying bag size: 180 * 110 * 30mm / 7.09 * 4.33 * 1.18in

Item Weight: 260g / 9.17oz

Package size: 205 * 145 * 40mm / 8.07 * 5.71 * 1.57in

Package weight: 290 g / 10.23 oz

Packing List:

1 * digital pressure gauge

2 * pipe

1 * adapter

1 * Guideline

1 * carrying bag
