Мультисистемный анализатор зажигания GTC TA500 SmartTach + COP

USED but like NEW

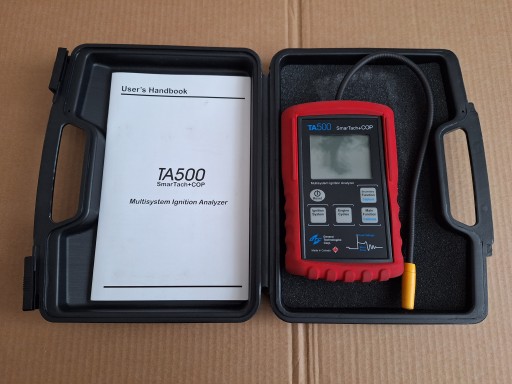

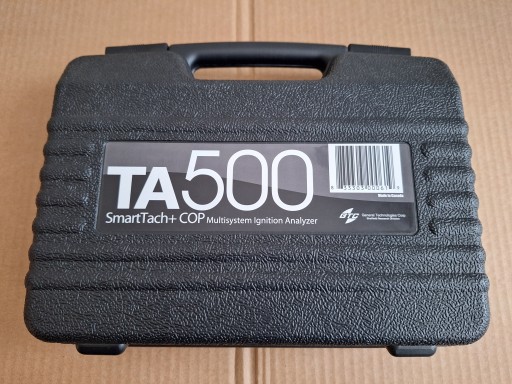

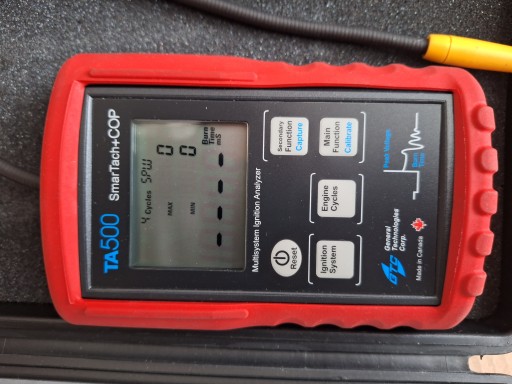

GTC TA500 SmartTach + COP Multisystem Ignition Analyzer

This technology allows the user to perform quick and reliable diagnostics of non-starts, misfires, fouled up or damaged spark plugs and/or spark plug wires, by comparing digital read-outs of the spark plug voltage and spark burn time between cylinders on engines using Coil on Plug, Coil near Plug, conventional distributor/ignition coil, DIS (Distributor-less) or waste spark and magneto technologies. It requires no special adapters, cables or a scope and is equipped with a large digital display that shows spark plug voltage, spark burn time, RPM, as well as Min/Max readings in real time.

Specifications

• Maximum spark plug wire voltage (Through capacitive pickup only): 49.9 kiloVolts
• Tachometer Range: 200 to 19999 RPM
• Cycles: 2 and 4 Cycles, and DIS
• Tachometer accuracy: ± 0.5% + 1 LSB
• Response time: 0.3 Seconds
• Ignition peak voltage range: 0 to 49.9 KVolt
• Probe: 30 cm flexible probe with capacitive pick-up
• Secondary ignition pick up: Capacitive sensor
• Spark Ignition System: Coil on Plug, Coil near Plug, Distributor, Magneto and D.I.S.(Distributor-less or waste spark ignition system)
• Power Source: One standard 9 Volt alkaline battery type NEDA 1604 IEC 6F 22
• Battery life: Approx. 20 hours of operation
• Power Saving: Auto power off after approximately 3 min. of inactivity
• Dimensions : 155 x 102 X 38 mm – including holster but excluding antenna
• Weight: Approximately 355 g Including battery
