Тестер и симулятор датчика кислорода GTC ST05

USED but like NEW

GTC ST05 Oxygen Sensor Tester and Simulator

Easy-to-use tool for testing and diagnosing problems with any oxygen sensor (also known as lambda sensors). This tool can help you quickly determine whether the sensor is defective and needs replacement. The ST05 is compatible with all types of oxygen sensors: Zirconia, Titania 1 volt, Titania 5 volt, wide band “dual-cell”, and heated or unheated (1, 2, 3, 4 or 5 wires).

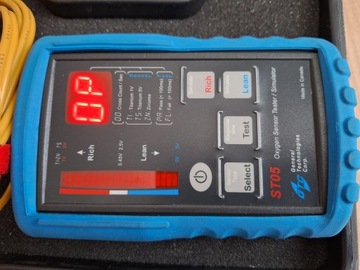

The ST05 is designed as a stand-alone tool which can also complement scan tools in the diagnostic process. The tool provides the means for fast and accurate testing, showing the sensor’s output signal in real time in a bar graph, which allows to diagnose “lazy” sensors which may not trigger DTC’s but cause drivability problems. It also display cross counts on an alphanumeric display, and can simulate rich and lean conditions. Sensors can be tested ON or OFF vehicle, and the ST05 does not require time-consuming setups or in-depth knowledge.

Specifications

• 2 digits LED alphanumeric display
• 20 segments LED bar graph with 0 to 1 Volt or 0 to 5 Volt ranges
• Cross Count: 0.1 to 10 CPS/
• Response test: <100 ms Pass +/- 5 ms, >100 ms Fail +/- 5 ms

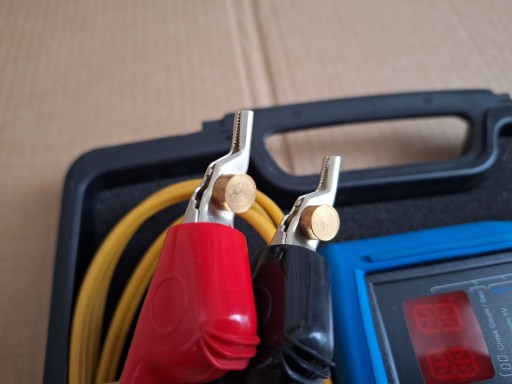

• Test leads: 2 wire piercing alligator clips, and 6.5 ft cables
• Power Source: One standard 9 Volt alkaline battery type NEDA 1604 IEC 6F 22
• Battery life: Approx. 25 hrs, with low battery indicator and auto power
