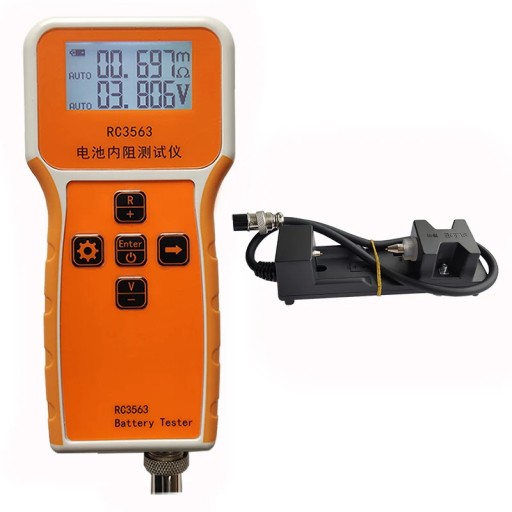

RC3563 высокоточный тестер внутреннего сопротивления батареи, троичный

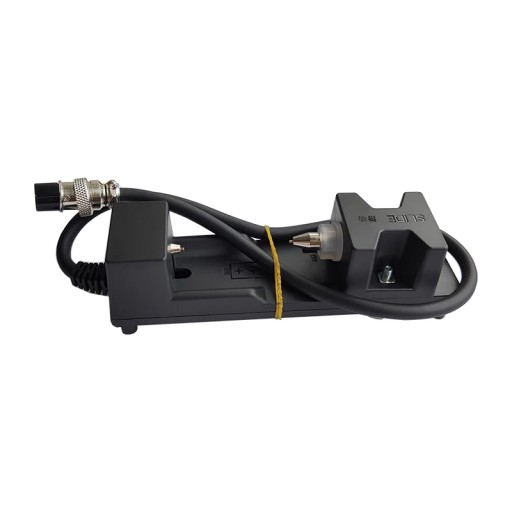

The battery internal resistance tester can measure the internal resistance and voltage of the battery at the same time. The Kelvin four-wire test clamp is used to better avoid the influence of contact resistance and wire resistance, and more accurate measurement can be performed.

This product adopts intelligent control, liquid crystal display, and simultaneous insertion of Kalman filter mathematical algorithm, which has the advantages of high precision, high efficiency, low cost, light weight, energy saving and environmental protection. Built-in 1000mAh lithium battery, 5V charging, Android mobile phone charger can be used, very convenient.

This product is widely used in various battery production, maintenance, testing, scientific research laboratories and other occasions. It can also be used to measure AC resistance of capacitors and resistors with low resistance and high precision.

Technical Parameters

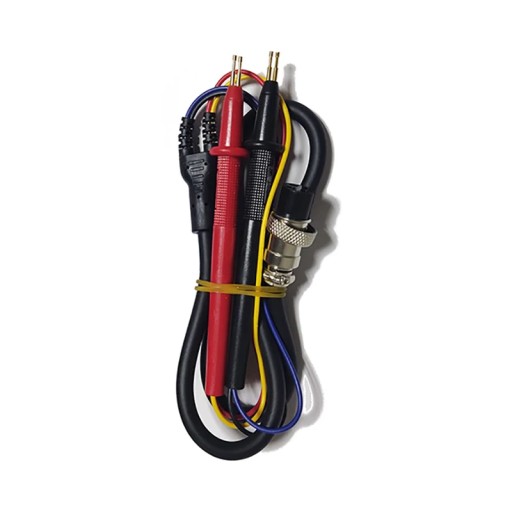

Note: During the test, try to make the test leads or clamps parallel to reduce the influence of eddy current.

calibrated before shipment, and try not to make any other settings.

Test parameters

AC resistance, DC voltage

Measurement accuracy

Resistance:0.5%

Voltage:0.5%

Measuring range

Resistance:0.001mΩ ~ 200Ω

Voltage:0.001V ~ ±100VDC

Signal source

Frequency: AC 1kHz

Current: 20mΩ range 50mA; 200mΩ/2Ω range 5mA; 20Ω/200Ω range 0.5mA

Range

6 ranges automatic and manual

3 ranges automatic and manual

Test speed

5 times/sec

Correction

Resistance: each range is individually and manually calibrated without affecting each other

Voltage: each range is individually calibrated manually, and does not affect each other

Factory settings

Save the factory information, one key can restore the factory state

Energy saving settings

about 10 minutes delay, automatic shutdown without any operation

Applicable scope

Cell phone, computer, electric vehicle and other battery maintenance, battery factory inspection and testing

Show results

LCD display, direct reading

Power supply

Built-in lithium battery, using 5V/1A charging

Size

Length, width and height=166*80*28

Language

Chinese or English can be switched at will
