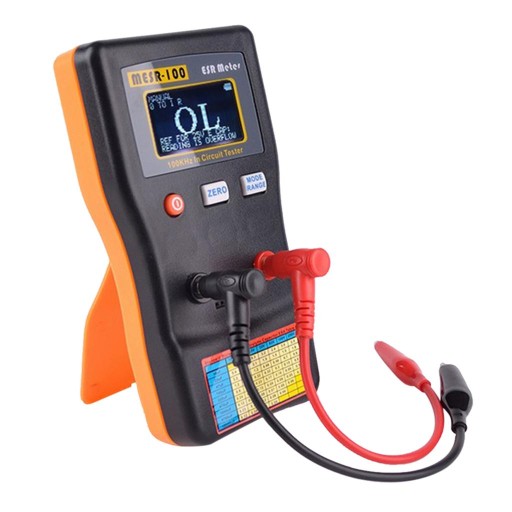

MESR-100 ESR Capacitance OHM Meter Resistance Capacitor Circuit Tester

Description:

Auto-ranging capacitor ESR and low Ohm meter, measuring range from 0.001 to 100.0R, support in circuit testing.

Using true 100 KHz sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer.

It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C).

The impedance become small, and we can then measure the true series resistor value.

Can measure the capacitor is bad/ damaged or good in condition.

This ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test.

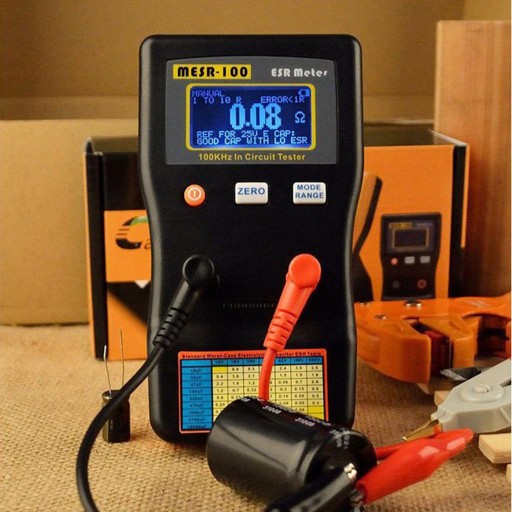

During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.

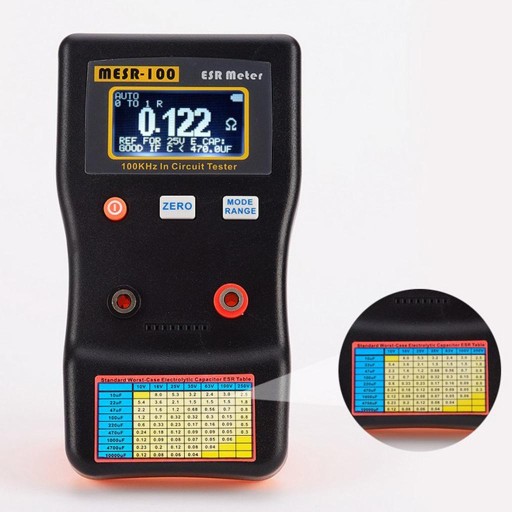

Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check.

Specification:

Accuracy: Up to 1%

Wide Measurement Range: >1uF

High Resolution: 4 digit, or 0.001Ohm @ 1 Ω range

Measuring voltage: 80 Hours

Size(Approx.): 145x73x28mm/ 5.7x2.8x1.1inch

Color: Black

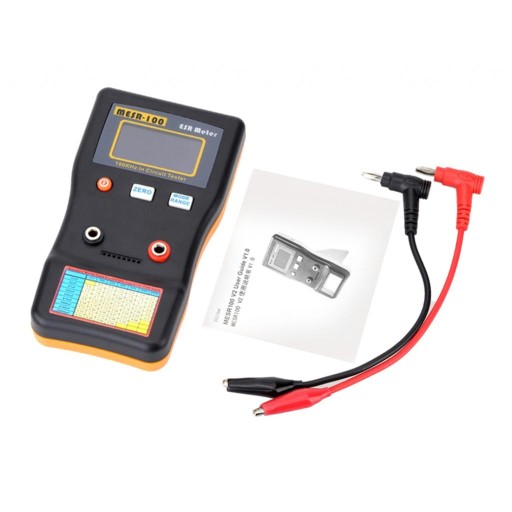

Package Includes:

1 Piece Capacitance Meter

2 Pieces of Test Clips

1 Piece User Manual
