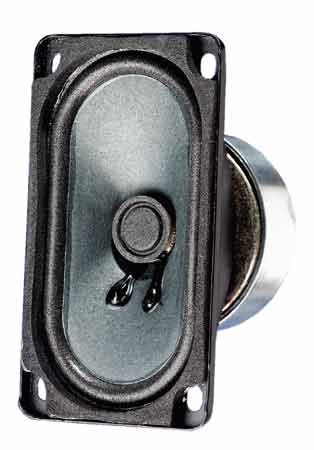

Широкополосные динамики Visaton SC5.9 8 Ом — пара

GŁOŚNIKI SZEROKOPASMOWE VISATON SC 5.9

Tani, popularny głośnik szerokopasmowy.

Może być montowany w obudowach zamkniętych i otwartych.

DANE TECHNICZNE:

• Rated power: 10 W
• Maximum power: 15 W
• Nominal impedance Z: 8 Ohm
• Frequency response: 130–20000 Hz
• Mean sound pressure level: 84 dB (1 W/1 m)
• Opening angle (-6 dB): 180°/4000 Hz hor.131°/4000 Hz ver.
• Excursion limit: +/−1.5 mm
• Resonance frequency fs: 193 Hz
• Magnetic induction: 0.9 T
• Magnetic flux: 120 µWb
• Height of front pole-plate: 3 mm
• Voice coil diameter: 14 mm
• Height of winding: 4 mm
• Cutout diameter: 43 x 82 mm (oval)
• Net weight: 0.214 kg
• D.C. resistance Rdc: 7.0 Ohm
• Mechanical Q factor Qms: 7.52
• Electrical Q factor Qes: 1.5
• Total Q factor Qts: 1.25
• Equivalent volume Vas: 0.4 l
• Effective piston area Sd: 26.5 cm²
• Dynamically moved mass Mms: 1.5 g
• Force factor Bxl: 2.5 Tm
• Inductance of the voice coil L: 0.4 mH
• Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
• Temperature range: –25 ... 70 °C

Cena za parę

ZAPRASZAMY DO ZAKUPU
