B&O Bang & Olufsen Beocord 1100. 0124

Magnetofon szpulowy:

B&O Beocord 1100 Type 4203

Dane techniczne:

• Type: 4203
• Power supply: 110 - 130 - 220 - 240 volts AC
• Frequency 50 Hz
• Power consumption: 10 - 70 watts
• Tape Transport
• Number of tracks 19 - 9,5 - 4,75 cm/sec
• Reel size 2 tracks record and playback
• Playing times Max 18cm
• Fast tape motion 150 sec. in both directions with LP tape, 540 M
• Tape counter 3-digit readout (with pushbutton reset)
• Wow and flutter Measured according to DIN 45,507
• Tape speed variation Less than +/- 2 %
• Tape stop At end of tape and if tape breaks, also where metal foil is fitted on tape, during normal forward tape motion.
• Slack absorber Prevents jerks when tape is stopped and started. Tape twisting when using thin tapes (such as 3-play tapes can be avoided by bringing the tape outside the slack absorbers)
• Power output 10 watts (approx. 3 watts with built-in speaker, 10 watts with external speaker)
• Frequency response 19 cm/sec. : 30 - 20,000 Hz (+/- 2 dB 40 - 16,000 Hz)
• 9,5 cm/sec.: 30 - 16,000 Hz ( +/- 2 dB 40 - 12,000 Hz)
• 4,75 cm/sec.: 50 - 8,000 Hz ( +/- 2 dB 50 - 6,000 Hz)
• Signal-to-noise ratio Better than 55 dB at 19 cm/sec.
• Erasure 60 kHz erase oscillator combined with output stage. Ferrite erase head with twin gap.
• Tone Controls Bass control range: + 14 dB - 15 dB at 40 Hz
• Treble control range: +6 dB -12 dB at 10,000 Hz
• Connections: Inputs Microphone 50/200 ohms - 35 µV/1000 Hz
• Radio: 47 kohms - 1,6 mV / 1000 Hz
• Gramophone: Low impedance : 47 kohms - 2mV / 1000 Hz
• High impedance: 2,2 mohms - 75 mV / 1000 Hz
• Outputs Extension speaker - 4 ohms
• Radio: 4,7 kohms - 0.6 V max.
• Dimensions H x W x D 20,2 x 45,5 x 29,5 cm
• Weight 13,2kg

Stan - wizualny: patrz sekcja zdjęć;

- techniczny: Uszkodzony.

ZACHĘCAM DO OBEJRZENIA MOICH INNYCH AUKCJI.

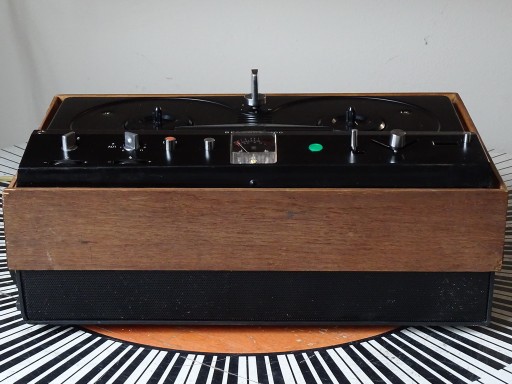

ZDJĘCIA [ REAL PHOTO ]
