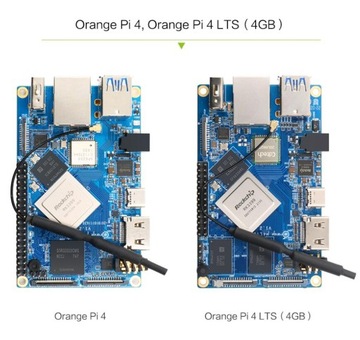

Микрокомпьютер Orange Pi 4 LTS 4 ГБ 16 ГБ EMC HDMI 4K WiFi Bluetooth RK3399

Uwaga!

!

Orange Pi 4 LTS 3GB DDR3 HDMI WiFi BT 5.0 RK3399

(Uwaga Orange PI a Raspberry PI 'NIE SĄ' w 100% kompatybilne !)

Wersja z: 4GB RAM

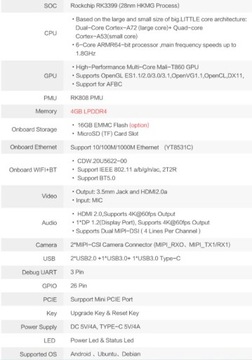

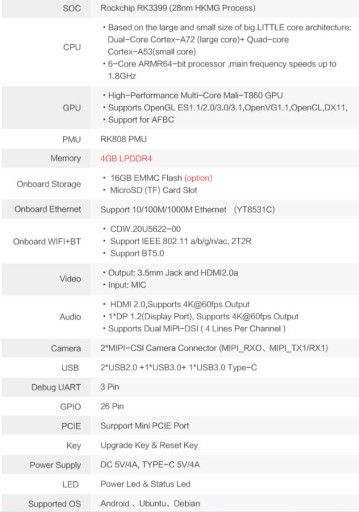

• SOC: Rockchip RK3399 (4GB), Rockchip RK3399-T (3GB）
• Procesor: Based on the large and small size of big.LITTLE core architecture:Dual-core Cortex-A72 (large core)+ Quad-core Cortex-A53(small core), 6-core ARMR64-bit processor ,main frequency speeds up to 1.6GHz（3GB）/1.8 GHz（4GB）
• GPU: High-performance Multi-core Mali-T860 GPU, Supports OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1,OpenCL,DX11, Support for AFBC
• PMU: RK808 PMU
• Pamięć: 3 GB /4GB LPDDR4
• Przechowywanie na płytce: 16GB EMMC Flash （option), MicroSD (TF) Card Slot
• Interfejs sieciowy: Support 10/100M/1000M Ethernet (YT8531C)
• Interfejs WIFI+BT: CDW.20U5622-00, Support IEEE 802.11 a/b/g/n/ac, 2T2R • Support BT 5.0
• Video: Output: 3.5mm Jack and HDMI2.0a, lnput: MIC
• Audio: HDMI 2.0,Supports 4K@60fps output, 1* DP 1.2(Display Port), Supports 4K@60fps output, Supports Dual MIPl-DSI ( 4 lines Per Channel )
• Kamera: 2 * MIPI-CSl Camera Connector (MIPI_RXO、MIPI_TX1/RX1)
• USB: 2 * USB2.0 ,1*USB3.0,1 * USB3.0 Type-C
• GPIO: 26 Pin
• Debugowanie: 3 Pin
• PCIe: Support Mini PCIe port
• Key: Upgrade Key & Reset Key
• Zasilanie: DC 5V/3A, Type-C 5V/4A
• LED: Power led & Status led

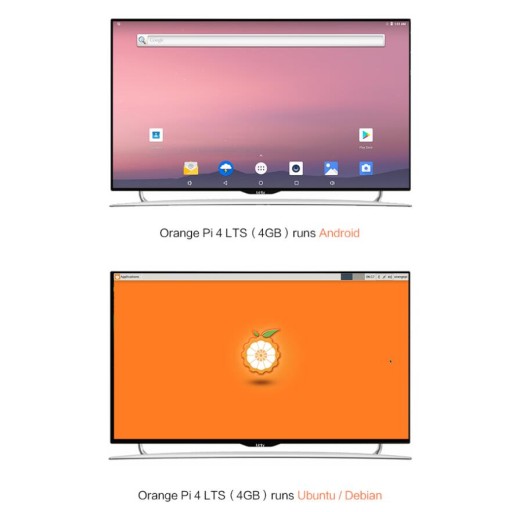

• Wspierane systemy: Android10, Ubuntu, Debian

Specyfikacja wyglądu:

• Wymiary: 56mm*91mm
• Waga: 49g
