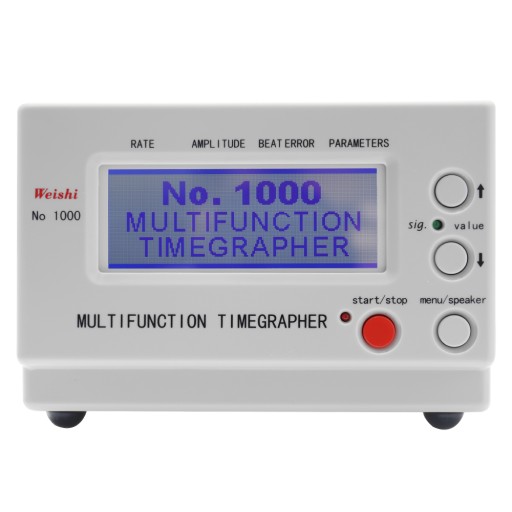

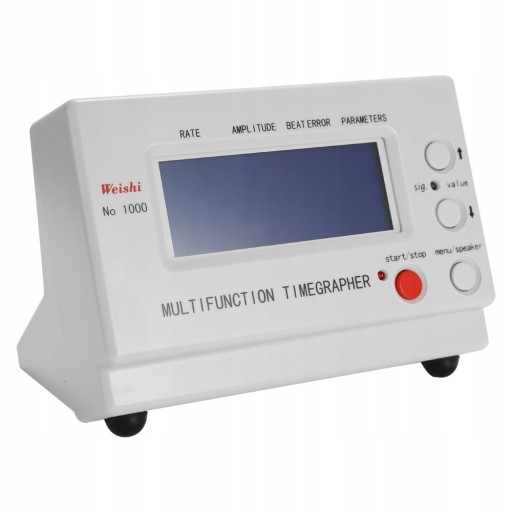

ТЕСТЕР МЕХАНИЧЕСКИХ ЧАСОВ ВРЕМЯ №1000

This No.1000 chronograph to develop a mechanical watch testing instrument that is easy to use and more professional. This is a watch tool that can be used by both mechanics and hobbyists.

Characteristics:

The watch frequency graph can be installed on the LCD screen.

According to different watches, the instrument will automatically adjust the signal level during the test.

The instrument automatically calculates the speed deviation, amplitude, beat error and displays them based on real-world data.

With a conventional beat, the instrument can be natural; for a special beat, individual can be selected.

The sampling period can be selected as 2 seconds, 4 seconds, 6 seconds, 8 seconds, 12 seconds, 20 seconds, 30 seconds, 60 seconds, and the average specific value will be treated as the exact value of the watch.

Six types of test items can be specified, and analog audio can be played through the speaker or muted.

Technical data:

Plug: EU introduced

Main material: metal;

Color: Gray Black;

Measuring capabilities: speed deviation, amplitude, beat error

Width deviation measurement: deviation range is ±999s/day, intensity is 1.0s/day

Amplitude measurement: numerical display in degrees, resolution 1 °, measuring ranges from 100 ° to 360 °

Measuring causes of beating (frequency error): numeric display in milliseconds. The resolution is 0.1 millisecond; measuring range 0-9.9 ms

Measuring position: 1 to 6 positions

Sampling periods: 2/4/6/8/12/20/30/60 seconds

Fixed angle: 30° to 70°, start 52°

Line Length: 196 points

Language: Chinese, English, Japanese

Display dimensions: 98 * 34 mm / 3.9 * 1.3 in

Item Size: 172 * 114 * 40mm / 6.8 * 4.5 * 1.6in

Item weight: 1400g / 3.1lb

Package size: 200 * 150 * 80mm / 7.9 * 5.9 * 3.1in

Package weight: 1483g / 3.3lb

Packing list:

1 * Timegrapher

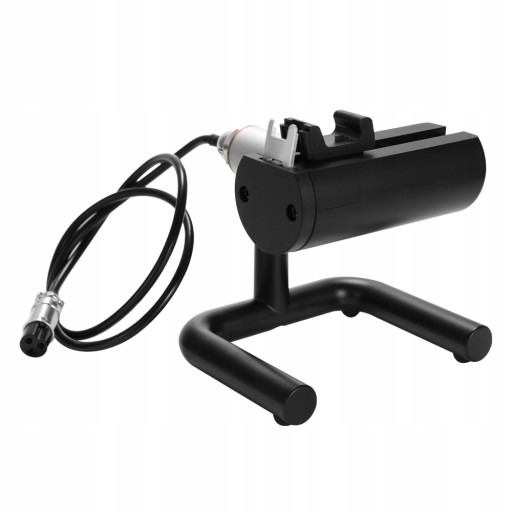

1 * Microphone

1 * power cable;

1 * User Manual
