Ультразвуковой датчик 0,5м 12-24В DC PNP 1Z M12 XX7V1A1PAM12

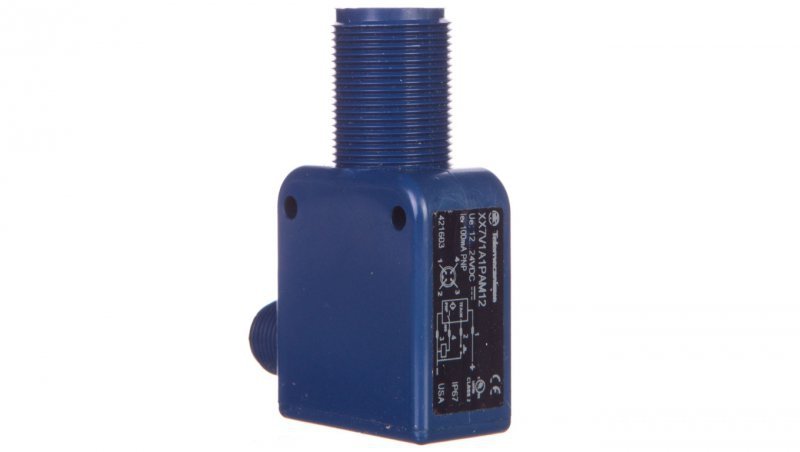

Ultrasonic sensor 0,5m 12-24V DC PNP 1Z M12 4-pins XX7V1A1PAM12

• Manufacturer code: XX7V1A1PAM12
• CN: 85365019
• PKWiU: 26.51.66.0
• Voltage type: DC
• Housing material: Plastic
• Type of electrical connection: M12 plug connector
• Type of housing construction: Perpendicular
• Type of switching function: Contact (NO)
• Output connection method: PNP
• Type of sensor active surface material: Plastic
• Power supply voltage range [V] from: 12
• Power supply voltage range [V] to: 24
• Ambient temperature [°C] from: -20
• Ambient temperature [°C] to: 65
• Adjustable spacing [mm] from: 51
• Adjustable spacing [mm] to: 508
• Distance measurement range [mm]: 500
• Tuning procedure: Teach-In
• Sensor width [mm]: 18
• Sensor length [mm]: 60
• Sensor height [mm]: 44

Guarantee of high quality.

• Each product is original and unused, imported directly from the manufacturer.
• All packages are packed using modern machines that ensure their safety in transport, regardless of their size and weight.
• Thanks to the huge storage space, we are able to send thousands of products a day, carefully preparing each package.

We have data sheets from the manufacturer and certificates for most products.
