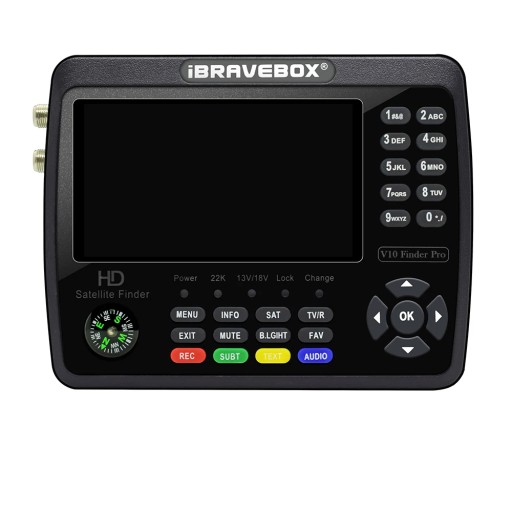

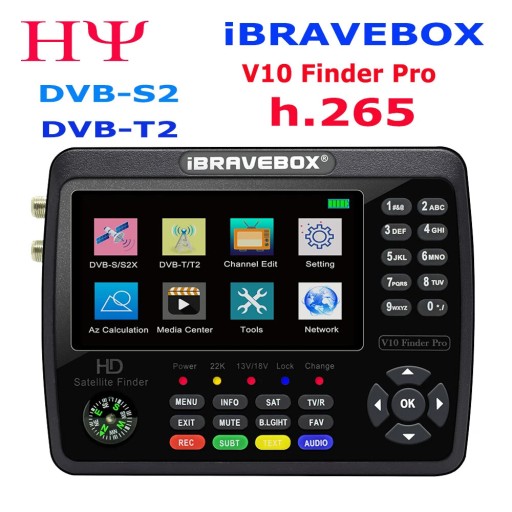

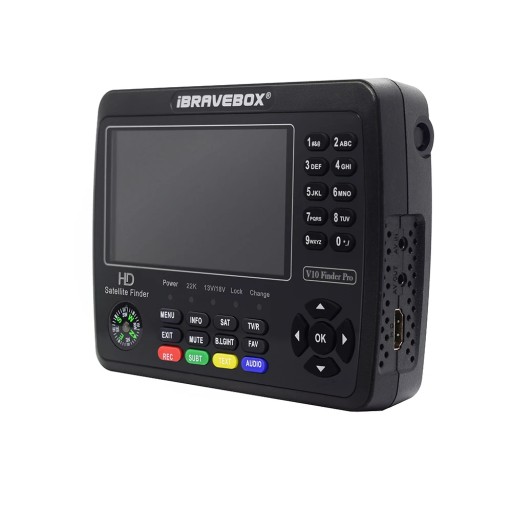

iBRAVEBOX V10 Finder Pro H.265 DVB-S2/T2 Расширенный поиск

I. Brief Function:

1. Fully DVB-S/S2/S2X/T/T2/C compliant ，Live FTA Digital Picture and Sound.

2. Support H.264/H.265(10 Bit) Hardware decoding.

3. Digital measuring device for signal strength and quality,Supports presetting all satellite information.

4. Support AV in and AV/HDMI out function.

5. 4.3 inch LCD Colour Screen.

6. Lithium-ion 4000mA Battery ，Normal work up to 4-6 hours.

7. Support 13V/18V/LOCK status panel LED display directly.

8. Support battery power display.

9. Software Upgradeable via USB and Wifi network（Wifi for mt7601 chip）.

10. Supports scan of Auto, Blind, Manual or NIT,Sound for Locking Signal.

11. Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone,Auto Calculate Angle of AZ,EL.

12. Support compass function,Speaker Integrated.

13. Support real-time power display, with low power reminder.

14. LNB short protect.

Features:

High-performance System Resource: Our finder boasts a high-performance system resource featuring 64Mb Serial Flash Flash Memory and 1Gb DDR3 DDR3 Memory for efficient operation and reliable performance.

Robust LNB/Tuner Input: F type, male Connector with a frequency range of 950MHz-2150MHz, our device ensures accurate and comprehensive signal detection. It offers signal levels ranging from -65dBm to -25dBm.

Overload Protection: With 13/18V DC @ 400mA MAX, our device is equipped with overload protection, ensuring safe and secure operation even under heavy workloads.

Advanced Demodulator: The device includes a sophisticated demodulator with QPSK(S);QPSK,8PSK,16APSK,32APSK(S2) Front end Modulation range 2Mbps~45Mbps, SCPC and MCPC capable and automatic spectral inversion.

Comprehensive LNB Switch Control: The device incorporates DiSEqC Ver 1.0/1.1/1.2 LNB switch control, providing a versatile setup for different signal acquisition scenarios.

Specifications:

System resource: 64Mb Serial Flash Flash Memory, 1Gb DDR3 DDR3 Memory

LNB/Tuner input: F type, male Connector, 950MHZ-2150MHZ Frequency range, Input Impedance 75Q, Signal lever -65dBm~-25dBm, 13/18V DC @ 400mA MAX, Overload Protection, 22KHz Active Ant Power, LNB switch control DiSEqC Ver 1.0/1.1/1.2

Demodulator: QPSK(S);QPSK,8PSK,16APSK,32APSK(S2) Front end Modulation range 2Mbps~45Mbps, SCPC and MCPC Capable, Spectral inversion Auto conversion

Optional Plug Type: EU

Package Included:

1 x V10 Finder Pro

1 x User Manual

1 x AV Cable

1 x Car Charger Cable

1 x Adaptor
